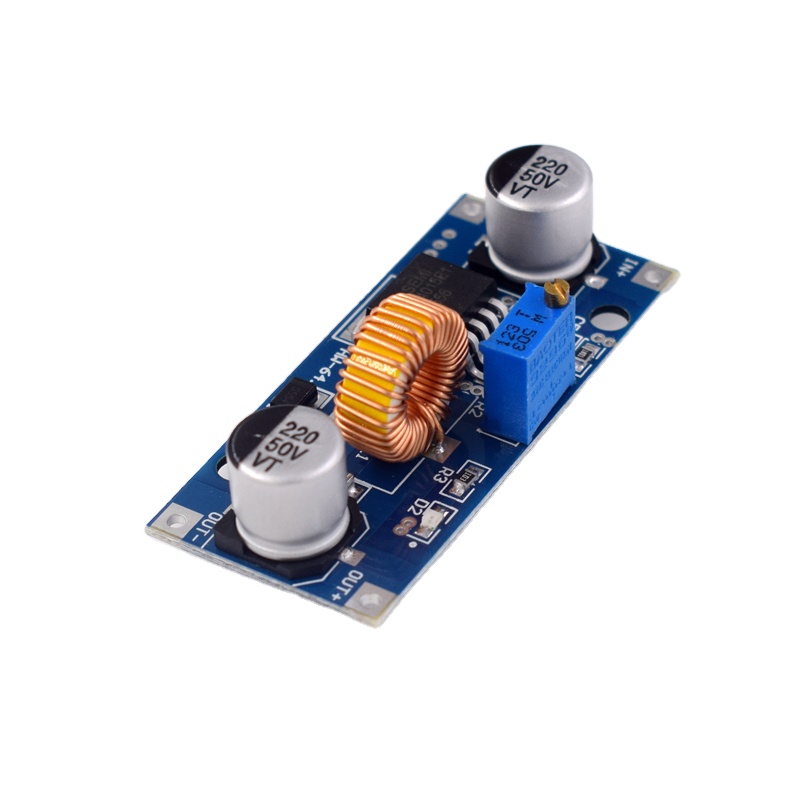

XL4015 5A DC-DC Step Down Adjustable Power Supply Buck Module LED with Heatsink

Original price was: ₹149.00.Current price is: ₹115.00. (inc. GST)

In stock

  • Cash on Delivery(COD) available on orders above 499/-
  • Free shipping on prepaid orders above 499/- use FREESHIP Coupon code!
  • 10 Days Return Policy!
  • Dispatch in 24 Hours from Warehouse!
Add to Wishlist
Add to Wishlist
  1. Input voltage range: 4V-38V DC
  2. Output voltage range: 1.25V-36V DC adjustable.
  3. Output current: 0-5A.
  4. Output power: 75W.
  5. High efficiency up to 96%
  6. The built-in thermal shutdown function
  7. Built-in current limit function
  8. In-Built output short protection function

Description

The XL4015 5A DC-DC Step Down Adjustable Power Supply Buck Module is a 180 KHz fixed frequency PWM buck (step-down) DC/DC module, This module is capable of driving a 5A load with high efficiency, low ripple, and excellent line and load regulation.

This DC/DC buck module has can be used where input voltage is higher than the output voltage, such as battery, power transformer, adjustable regulated power supply, instrument power supply telecom/networking equipment, 24V vehicle notebook power supply, industrial equipment buck.

This module has an adjustable output Voltage. Also works as a dedicated charger for Lithium Batteries I(li-ion, Li-po) as it is capable of controlling voltage. Ex. 12V buck to 3.3V, 12V buck to 5V, 24V buck to 5V,24V buck to 12V, 36V buck to 24V, etc.

Product Parameters:

Product Size 54* 24*12mm
Product weight 15g
Input voltage range 4V-38V
Output voltage range 1.25V-36V
Output current 0-5A
Efficiency 96%

Features :

  1. High efficiency up to 96%
  2. The built-in thermal shutdown function
  3. Built-in current limit function
  4. In-Built output short protection function
  5. Input reverse polarity protection: None (if required, the high current diode in series with the input).

Package Includes :

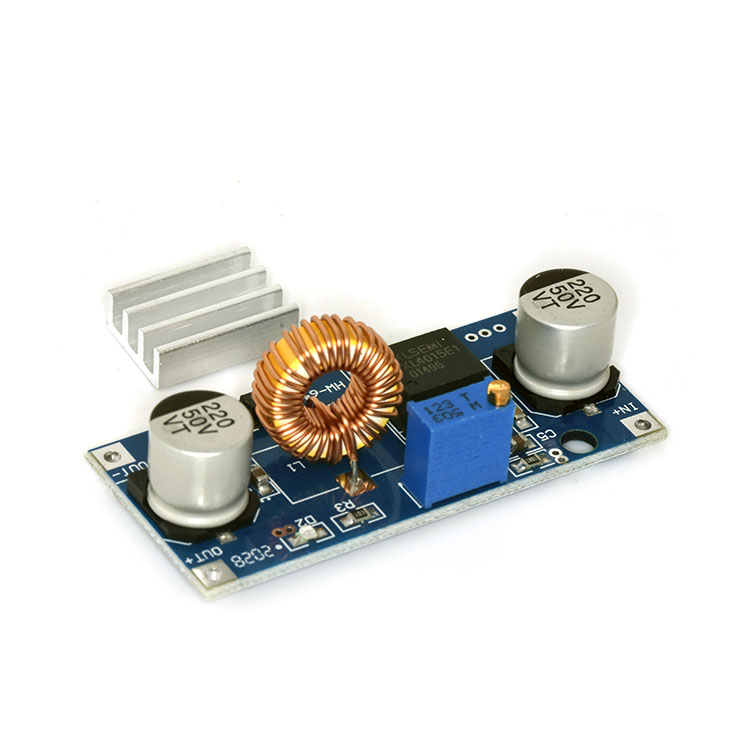

1 x XL4015 5A DC-DC Step Down Adjustable Power Supply Buck Module

1 x Aluminium Heat Sink
