Name: Waterproof Ultrasonic Sensor, Reversing Radar Sensor with Separate Probe - Rytronics.in
Brand: Sensor and Modules
SKU: RY-WTRFSONIC
Price: 449.00 INR
Availability: InStock
Rating: 5.00 (2 reviews)

Sale!

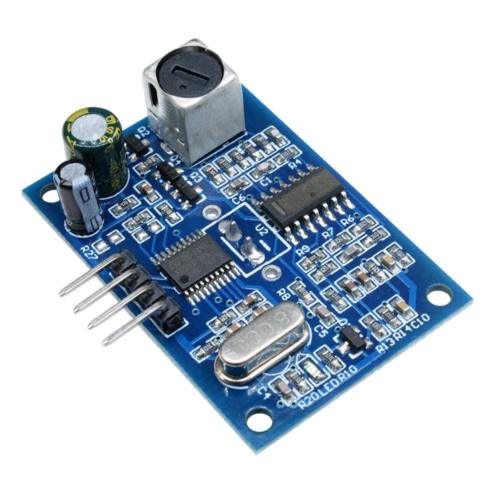

Waterproof Ultrasonic Obstacle Sensor Module with Probe JSN-SR04T

Waterproof Ultrasonic Obstacle Sensor Module with Probe JSN SR04T 1

Waterproof Ultrasonic Sensor, Reversing Radar Sensor with Separate Probe

Rated 5.00 out of 5 based on 2 customer ratings

(2 customer reviews)

Original price was: ₹599.00.Current price is: ₹449.00. (inc. GST)

In stock

Integrated with wire enclosed waterproof probe, suitable for wet, harsh measurement occasions
Small size, easy to use
Operating Voltage: 5 V
Sonar Sensing Range: 25-450 cm
Max. Sensing Range: 450 cm
Frequency: 40 KHz

SKU: RY-WTRFSONIC Categories: Sensor and Modules, Sensors, Ultrasonic & Proximity

Description

This Waterproof Ultrasonic Sensor is also known as JSN-SR04T is an easy to use waterproof ultrasonic distance sensor with a range of 25 to 450 cm. If you are planning to build a water level measuring system or if you need to take other distance measurements outside, then this is the sensor you need!

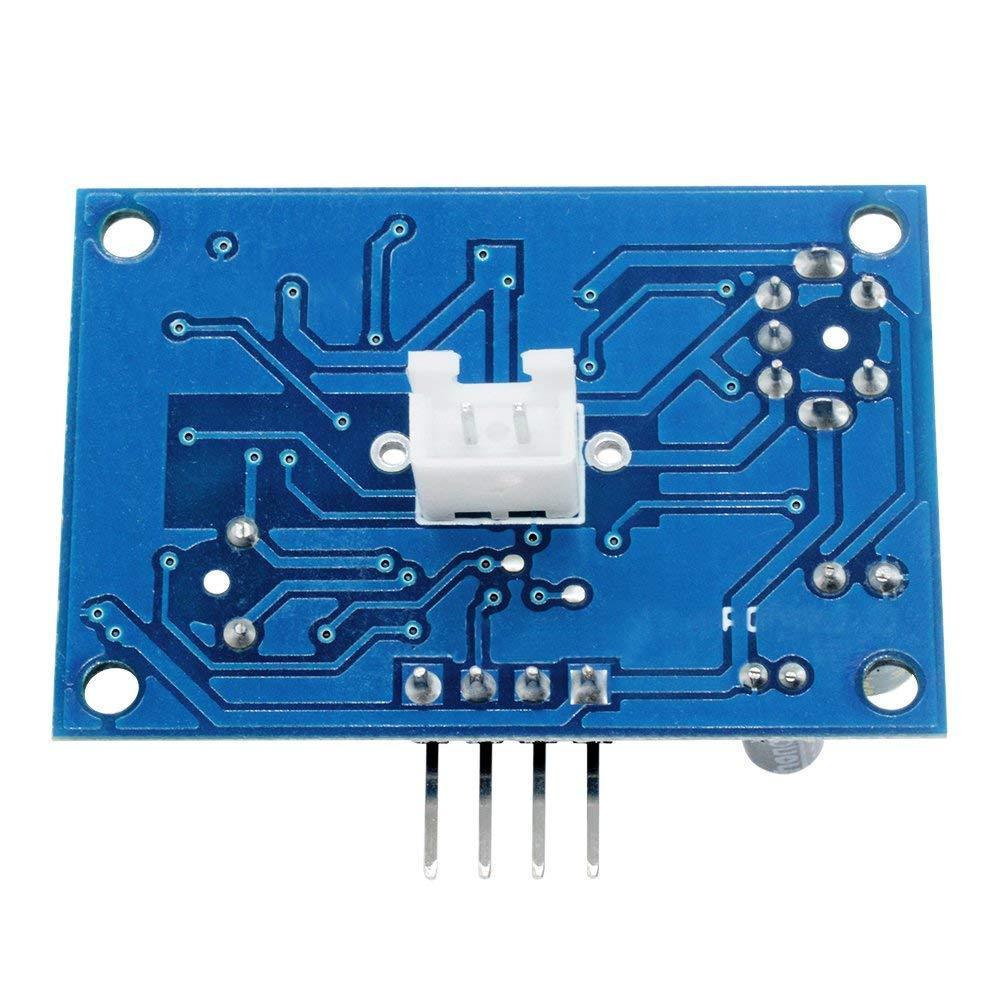

The sensor comes with a 2.5 m long cable that connects to a breakout board which controls the sensor and does all the processing of the signal. Note that only the sensor and the cable itself are waterproof, if you get water onto the breakout board, the sensor might stop working.

An ultrasonic distance sensor works by sending out ultrasound waves. These ultrasound waves get reflected back by an object and the ultrasonic sensor detects them. By timing how much time passed between sending and receiving the sound waves, you can calculate the distance between the sensor and an object.

DATA SHEET can be downloaded from below link.

Click to download JSN-SR04T-2.0 (1)

JSN-SR04T/Waterproof Ultrasonic Sensor Specifications:

Operating voltage	5 V
Operating current	30 mA
Quiescent current	5 mA
Frequency	40 kHz
Measuring range	25-450 cm
Resolution	2 mm
Measuring angle	45-75 degrees
Sensor dimensions	23.5 x 20 mm, 2.5 m long cable
PCB dimensions	41 x 28.5 mm
Mounting hole	18 mm

Features:

Small size, easy to use.
Low voltage, low power consumption.
High accuracy.
Strong anti-jamming.
Integrated with wire enclosed waterproof probe, suitable for wet, harsh measurement occasions.

Package Includes :

1 x Waterproof Ultrasonic Obstacle Sensor, with 2.5m Separate Probe.
