Name: W1209 12V Digital Temperature Controller Module with Display and NTC Temp Sensor - Rytronics.in
Brand: Modules
SKU: RY-W1209
Price: 115.00 INR
Availability: InStock
Rating: 4.00 (2 reviews)

Sale!

W1209 12V Digital Temperature Controller Module with Display and NTC Temp Sensor

Rated 4.00 out of 5 based on 2 customer ratings

(2 customer reviews)

Original price was: ₹199.00.Current price is: ₹115.00. (inc. GST)

In stock

W1209 12V Digital Temperature Controller Module short description:

Temperature Control Range -50°C to 110°C
10k NTC at Measuring Input
Operating Voltage: 12V DC
10A Single Channel Relay
Refresh rate of 5 seconds

SKU: RY-W1209 Categories: Modules, Sensor and Modules, Sensors, Temp, Humidity & Gas Sensor Tags: NTC, NTC10K, RTD, temperature Controller, Temperature Sensor, Thermistor, Thermostat, W1209, Waterproof Temperature Sensor

Description

W1209 12V Digital Temperature Controller Module is an incredibly low cost yet highly functional thermostat controller. With this module you can intelligently control power to most types of electrical device based on the temperature sensed by the included high accuracy NTC temperature sensor. Although this module has an embedded microcontroller no programming knowledge is required. This also has 3 tactile switches allow for configuring various parameters including on and off trigger temperatures.

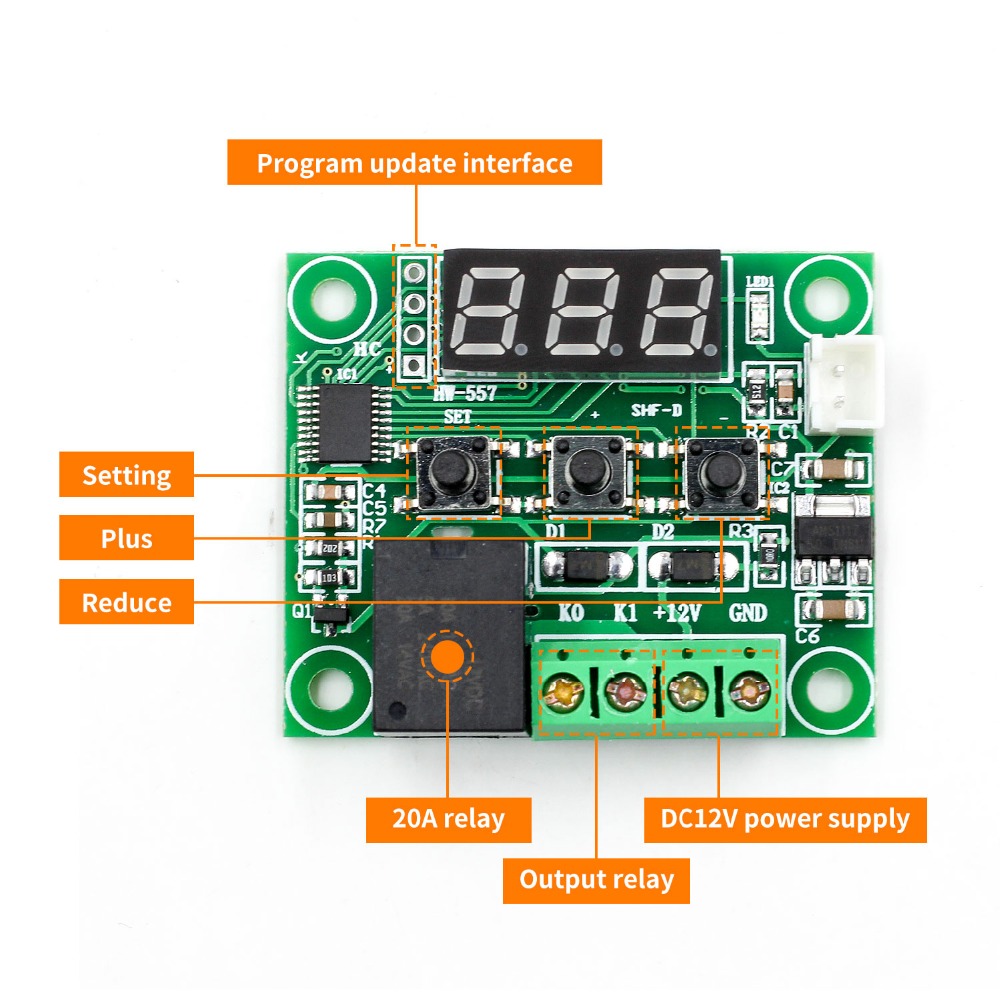

The on board relay can switch up to a maximum of 240V AC at 5A or 14V DC at 10A. The current temperature is displayed in degrees Centigrade via its 3 digit seven segment display and the current relay state by an on board LED.

Specification:

Temperature Control Range: –50 ~ 110 C
Resolution at –9.9 to 99.9: 0.1 C
Resolution at all other temperatures: 1 C
Measurement Accuracy: 0.1 C
Control Accuracy: 0.1 C
Refresh Rate: 0.5 Seconds Input Power (DC): 12V
Measuring Inputs: NTC (10K 0.5%)

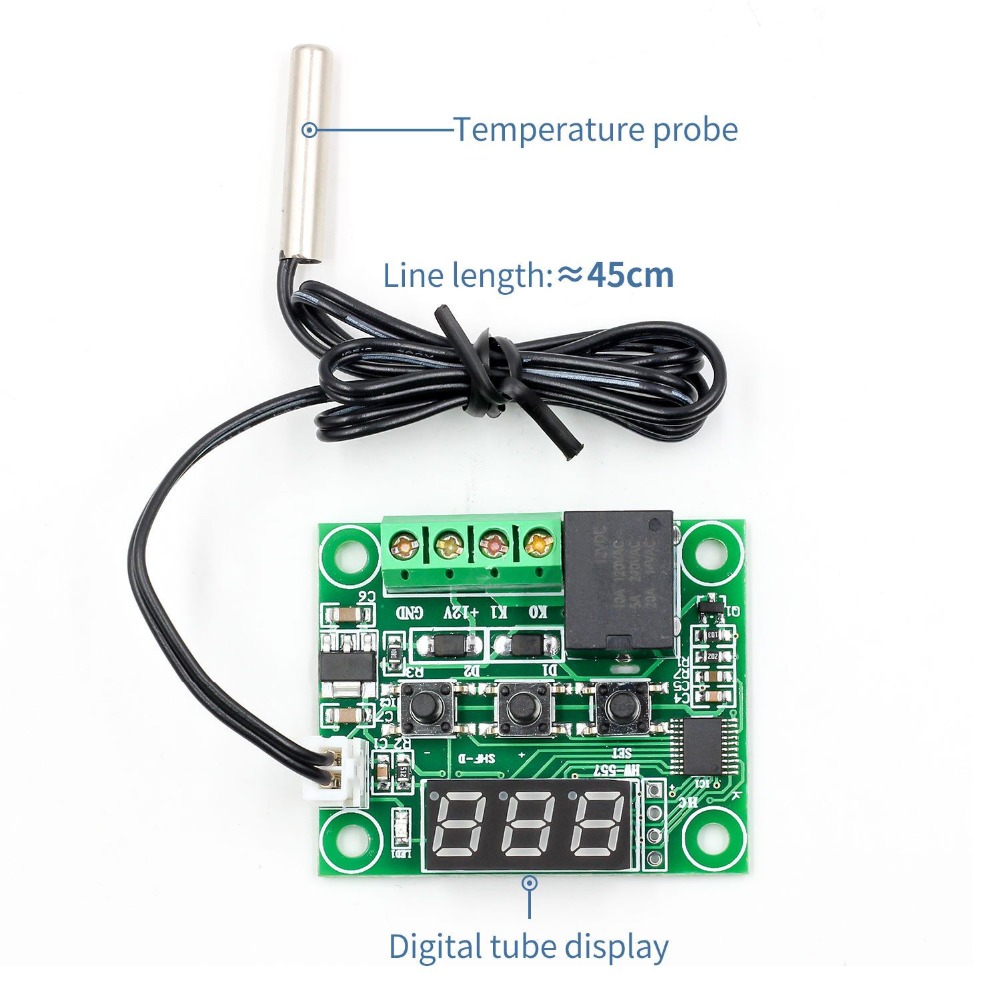

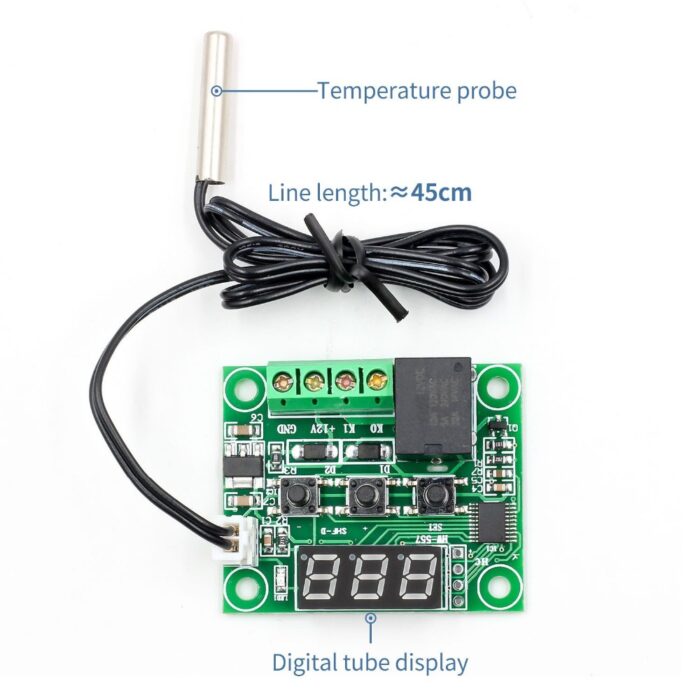

Waterproof Sensor: 0.5M
Output: 1 Channel Relay Output,
Capacity: 10A

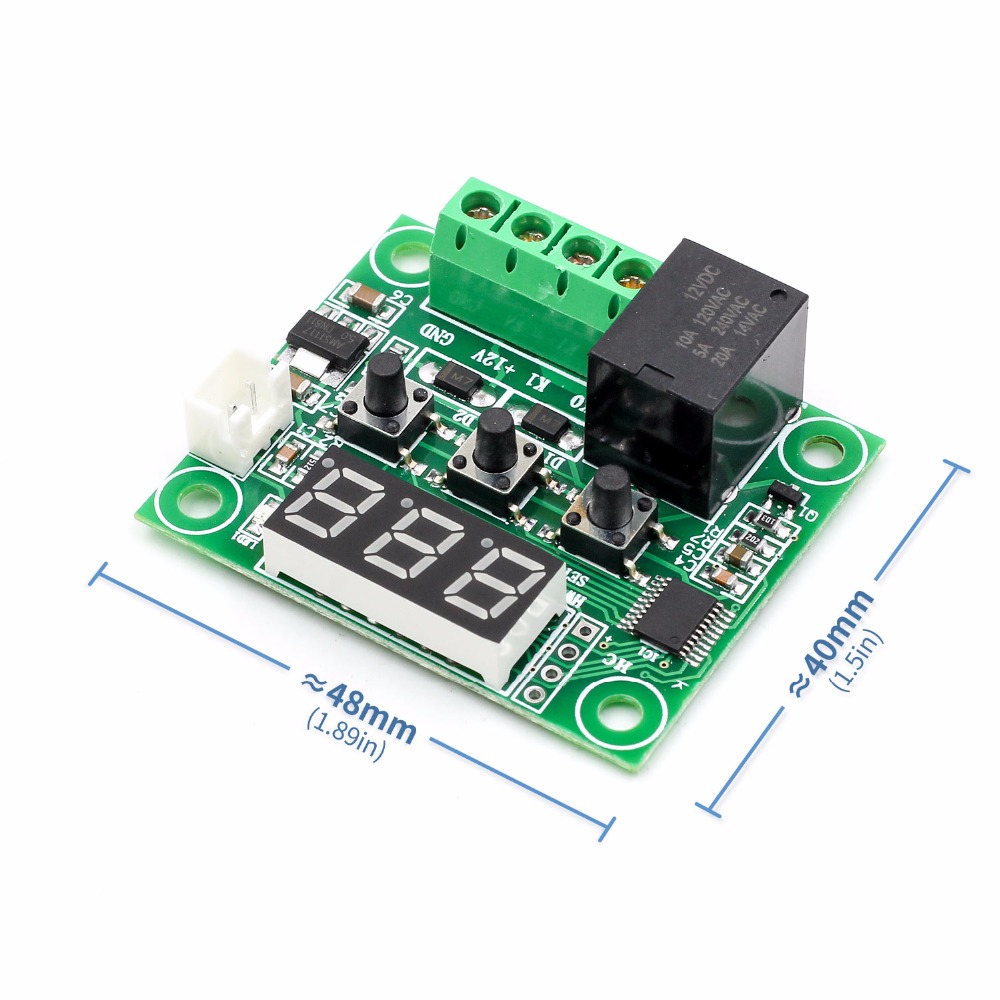

Dimensions:

48mm x 40mm x 14mm

Applications:

To measure and display temperature
To Turn any application ON/OFF based on temperature reading. (Both AC and DC)
Example Project:- 1. Fire alarm system . 2. Auto cut off Electric Water Heater
