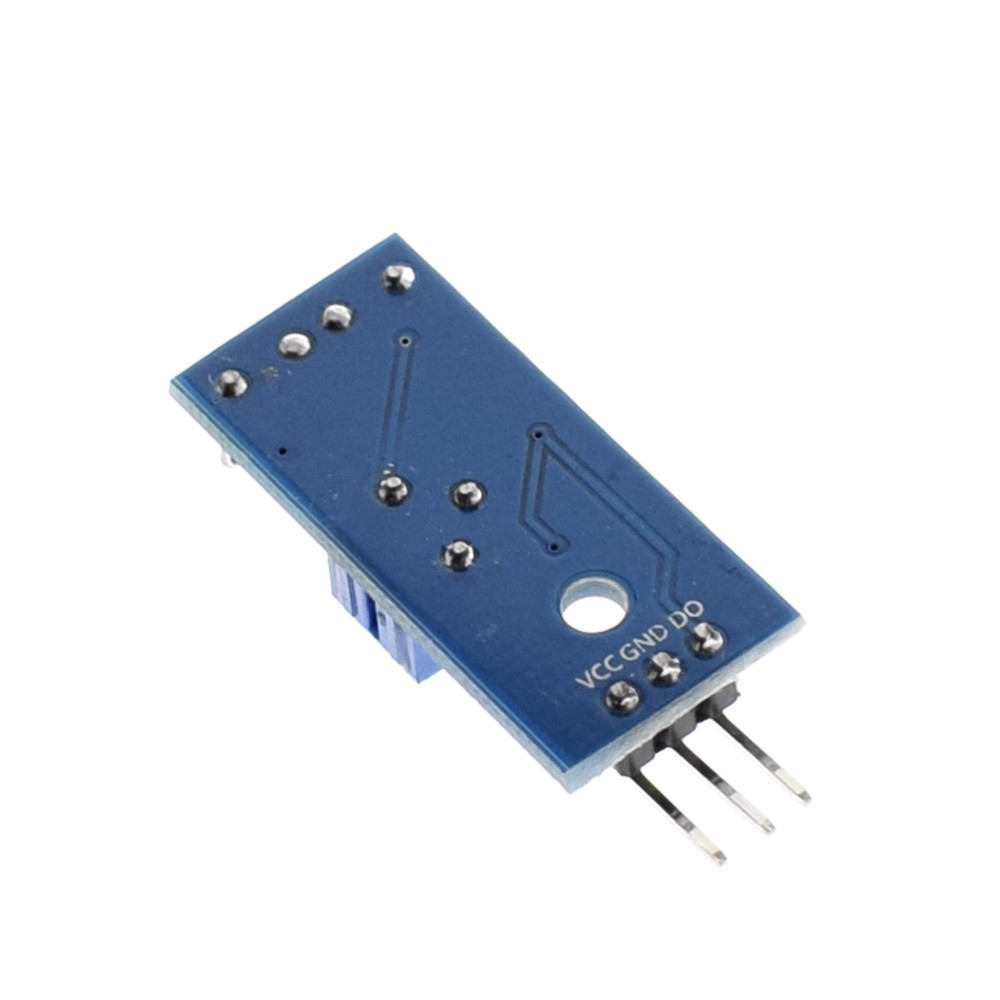

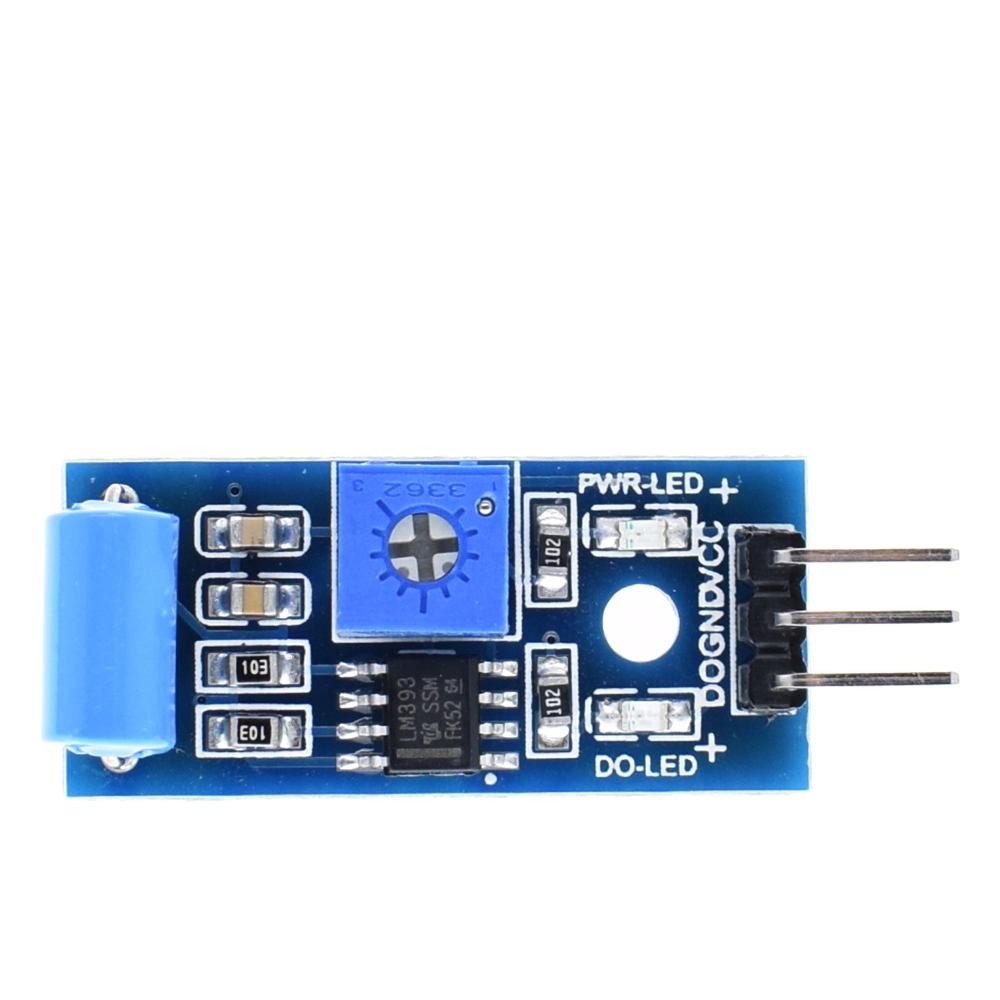

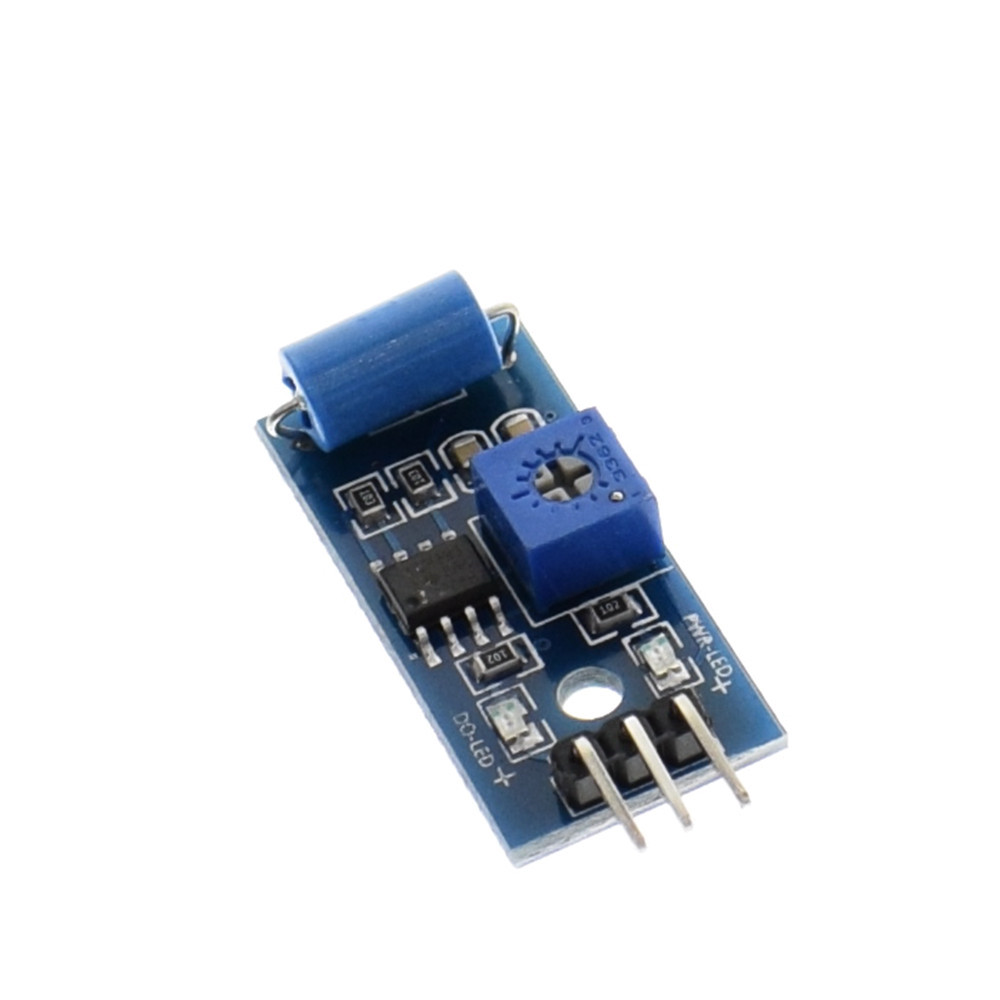

Name: Vibration sensor module alarm Motion sensor module vibration switch SW-420 - Rytronics.in
Brand: Sensor and Modules
SKU: RY-SW420VIBERATION
Price: 59.00 INR
Availability: OutOfStock

Vibration sensor module alarm Motion sensor module vibration switch SW-420

₹59.00 (inc. GST)

Out of stock

Using SW-420 normally closed type vibration sensor
Comparator output, clean signal, good waveform, strong driving ability, >15mA
Operating voltage 3.3V ~ 5V
Output format: digital switching output (0 and 1)
Using a wide voltage LM393 comparator
With bolt holes for easy installation

SKU: RY-SW420VIBERATION Categories: Sensor and Modules, Miscellaneous Module, Other Sensors

Add to Wishlist

Description

LM393 to detect if there is any vibration that beyond the threshold. The threshold can adjust using an onboard potentiometer. When this no vibration, this module output logic LOW the signal indicates LED light, and vice versa.

If the module does not vibrate, the vibration switch was on the close state, the output of low output, the green indicator light. The product vibrates, vibration switches momentary disconnect, the output is driven high, the green light does not shine.

The output can connect to the microcontroller, which to detect high and low level; so as to detect whether the environment exists vibration, play a role in the alarm.

Note:

Do not reverse the power directions, otherwise, it is possible to burn the chip.
Signal LED light is output Low, signal LED OFF output is High.
The output level close to the input voltage.

Features :

Using SW-420 normally closed type vibration sensor.
Comparator output, clean signal, good waveform, strong driving ability, >15mA.
Using a wide voltage LM393 comparator.
With bolt holes for easy installation.

Package Includes :

1 x Vibration sensor module alarm Motion sensor module vibration switch SW-420.
