USB to TTL RS232 Module USB to Serial

(1 customer review)

Original price was: ₹140.00.Current price is: ₹109.00. (inc. GST)

In stock

  • Cash on Delivery(COD) available on orders above 499/-
  • Free shipping on prepaid orders above 499/- use FREESHIP Coupon code!
  • 10 Days Return Policy!
  • Dispatch in 24 Hours from Warehouse!
Add to Wishlist
Add to Wishlist
  1. Single-chip upgrade solution for Legacy RS232 devices to USB interface
  2. USB to RS232 converters/cables/dongles
  3. Healthcare/Medical USB Interface Data Transfer Cable
  4. Personal Infotainment/Media Player Docking USB Interface
SKU: RY-UTTL01 Categories: , Tags: , , ,

Description

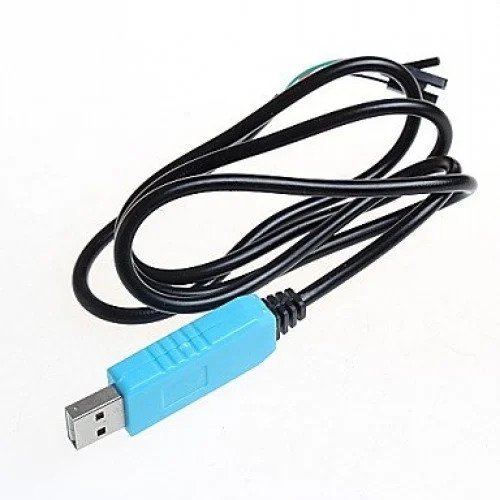

This is PL2303 TA Download Cable USB to TTL RS232 Module USB to Serial.

The cable is the easiest way ever to connect to your microcontroller/Raspberry Pi/WiFi router serial console port. Inside the big USB plug is a USB to Serial conversion chip and at the end of the 1M cable are four wire red power, black ground, white RX into the USB port, and green TX out of the USB port.

The power pin provides the 5V @ 500mA direct from the USB port and the RX/TX pins are 3.3V levels for interfacing with the most common 3.3V logic level chipsets.

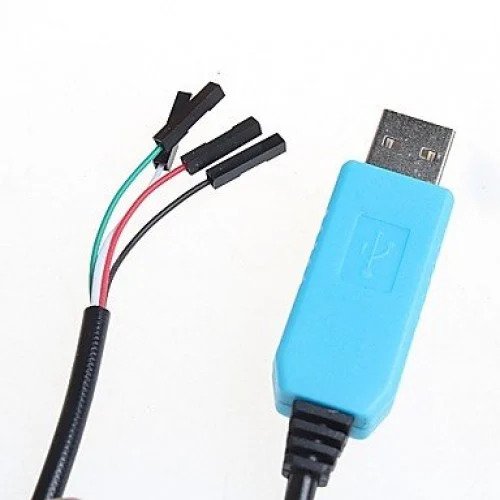

Pin Connection:
Red: +5 V
Black: GND
White: RXD
Green: TXD
Applications:
  1. Single-chip upgrade solution for Legacy RS232 devices to USB interface
  2. USB to RS232 converters/cables/dongles
  3. Healthcare/Medical USB Interface Data Transfer Cable
  4. Personal Infotainment/Media Player Docking USB Interface
  5. Cellular/PDA USB Interface Data Transfer Cable
  6. Serial-over-IP Wireless Solution
  7. USB Barcode/Smart Card Readers
  8. GPS/Navigation USB Interface
  9. Point-of-Sale (POS) Terminals/Printers
  10. PC Docking Station/Port Replicators
  11. Industrial/Instrumentation/Automation Control USB Interface



Features :

  1. Built-in TTL COM PC-PL2303HX Chip.
  2. Standard USB type and TTL 4 pin connector
  3. Simple and Easy way to give USB support to your designs
  4. Available for Linux, Mac, WinCE, and Windows (XP, 7), Win 8

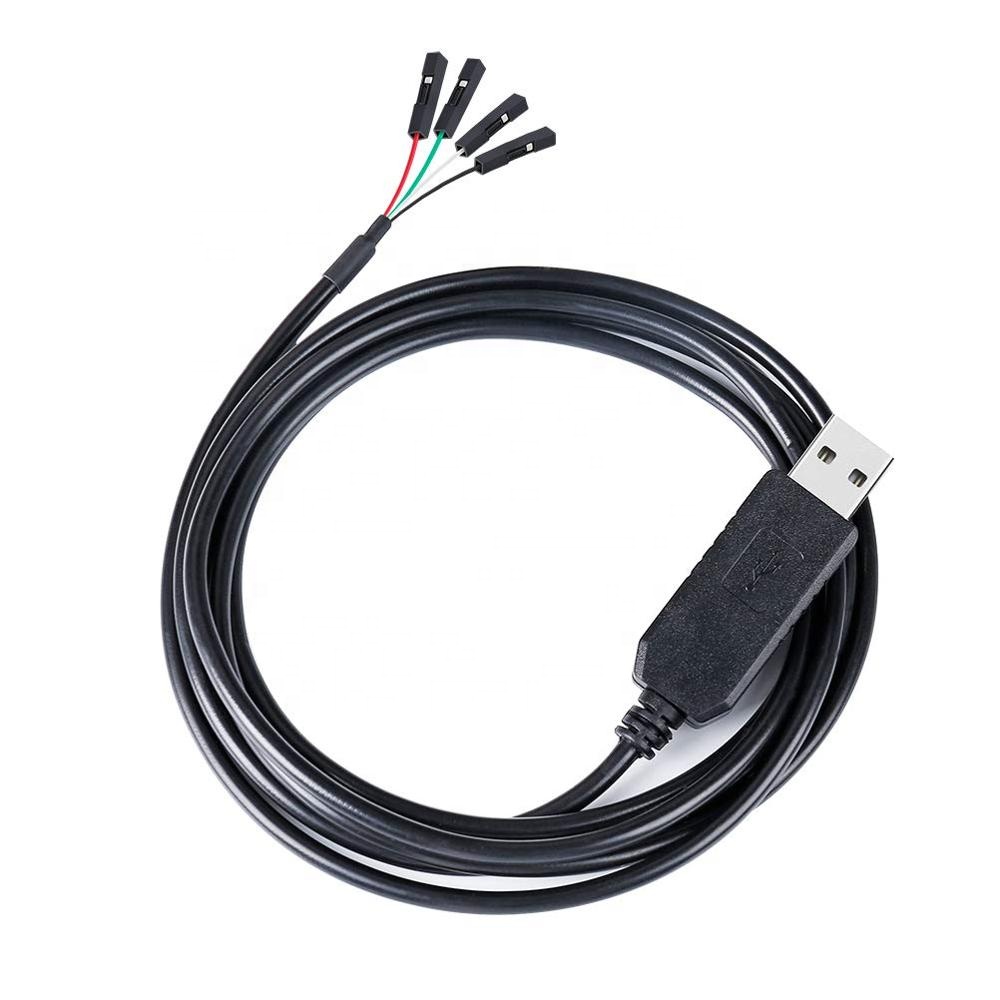

Note: Product image is only for illustrative purpose only. This product is available in two color and will be shipped randomly.
