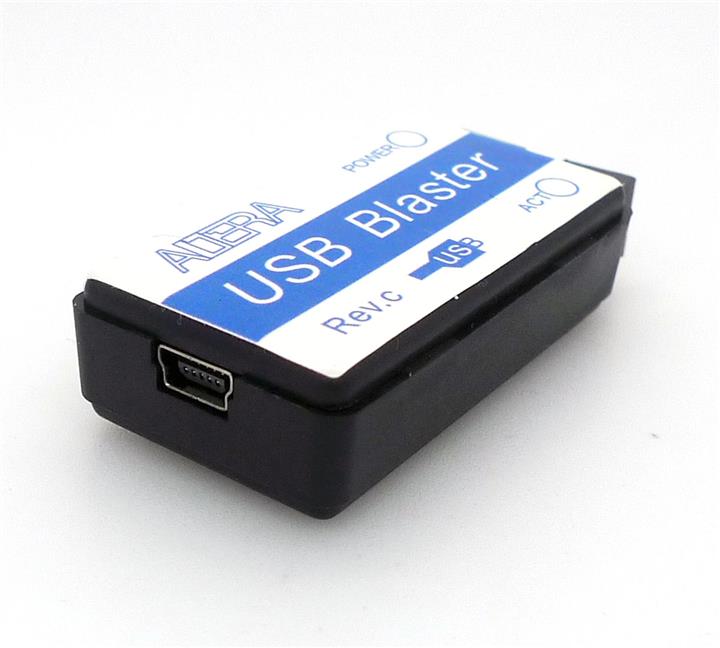

USB Blaster ALTERA CPLD/FPGA Programmer

269.00 (inc. GST)

In stock

  • Cash on Delivery(COD) available on orders above 499/-
  • Free shipping on prepaid orders above 499/- use FREESHIP Coupon code!
  • 10 Days Return Policy!
  • Dispatch in 24 Hours from Warehouse!
Add to Wishlist
Add to Wishlist
  1. Stably support SignalTap II embedded logic analyzer function, no mistake while crawling data.
  2. Fully support all Altera products such as CPLD: MAX3000, MAX7000, MAX9000 and MAXII.
  3. FPGA: Stratix, StratixII, StratxIII, Cyclone, CycloneII, CycloneIII, ACEX1K, APEX20K and FLEX10K etc.
  4. Active serial configuration device: EPCS1, EPCS4, EPCS16, EPCS64 etc.
  5. Enhanced configuration devices: EPC1, EPC4.
  6. Supports 3 download mode: AS, PS and JTAG.

Description

USB Blaster ALTERA CPLD/FPGA programmer Supports 1.5V,1.8V,2.5V,3.5V and 5.0V as well as all ALTERA products like CPLD ( MAX3000, MAX7000, MAX9000 and MAX II ) ; FPGA ( Stratix, StratixII, Cyclone, CycloneII, ACEX 1K, APEX20K and FLEX 10K ), Cyclone (EP1C3, EP1C6, EP1C12, EP1C20) ; Cyclone II (EP2C5, EP2C8, EP2C35) ; Stratix (EP1S10, EP1S20, EP1S25);  Stratix II(EP2S60) ; FLEX10K(EPF10K10, EPF0K30) ; ACEX1K(EP1K30) ; MAX7000(MAX7128SLC84, MAX7128) ; AETC100(MAX3000, MAX3128) ; MAXII(MAXII240, MAXII570, MAXII1270) ; EPCS(EPCS1, EPCS4, EPCS16) ; EPC(EPC1, EPC4); Active serial configuration device (EPCS1, EPCS4, EPCS16)

The device is tested with the different program mode like JTAG ( Cyclone, CycloneII, Stratix II, Flex10K, Acex1K, Max7000, and Max3000); AS ( EPCS1, EPCS4, EPCS16); PS (Stratix, Stratix GX )

ALTERA USB Blaster Support AS, PS, and JTAG program ( with Verify and BankCheck function), Support embedded logic analyzer function of SignalTapII and NIOS II communication and debugger — When you use it to debug your Black Gold, it will not Pop-up warning

It is Faster about 6 times than ByteblasterII and with USB interface you don’t need a PC with serial port now. It is 100% compatible with Official ALTERA USB Blaster.


Features:

  1. Stably support SignalTap II embedded logic analyzer function, no mistake while crawling data.
  2. Fully support all Altera products such as CPLD: MAX3000, MAX7000, MAX9000, and MAXII.
  3. FPGA: Stratix, StratixII, StratxIII, Cyclone, CycloneII, CycloneIII, ACEX1K, APEX20K, and FLEX10K, etc.
  4. Active serial configuration device: EPCS1, EPCS4, EPCS16, EPCS64 etc.
  5. Enhanced configuration devices: EPC1, EPC4.
  6. Supports 3 download mode: AS, PS, and JTAG.
  7. Support and Nios II embedded soft core processor communication and debugging Rev.C latest version Hardware. Support jtag_uart.
  8. Speed is 6 times faster than parallel port download cable ByteBlasterII.
  9. Easy to use: MiniUSB interface, easy connection, two status indicator makes debugging more comfortable.
  10. Fully compatible with ALTERA USB Blaster, functionality and performance are the same as ALTERA original download cable.
  11. Operating Voltage: 1.5~5V JTAG IO Voltage.
  12. System configuration: Windows XP, Windows Vista, Windows7, USB interface.

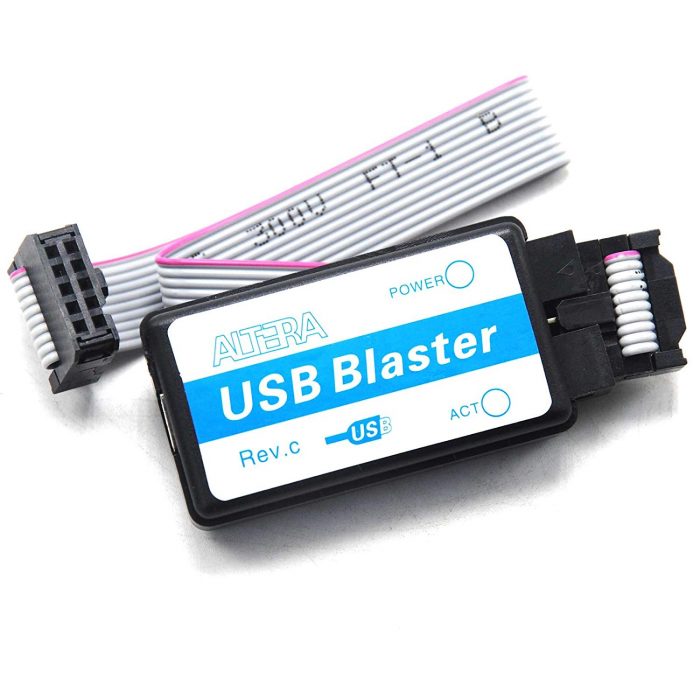

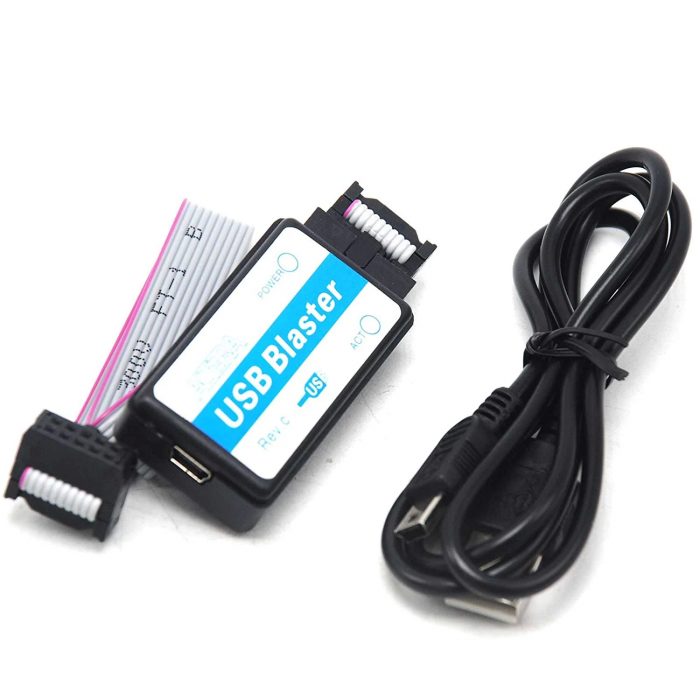

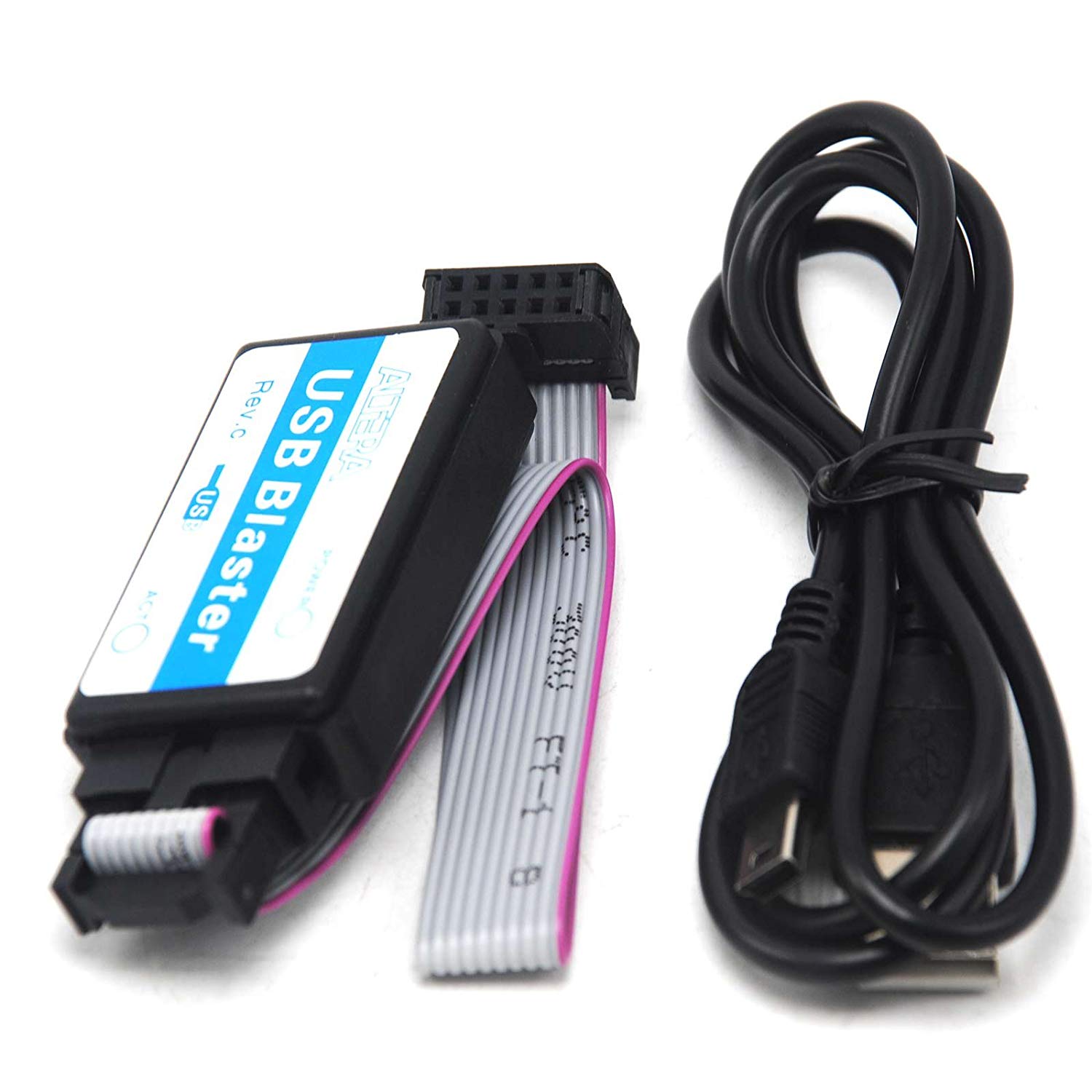

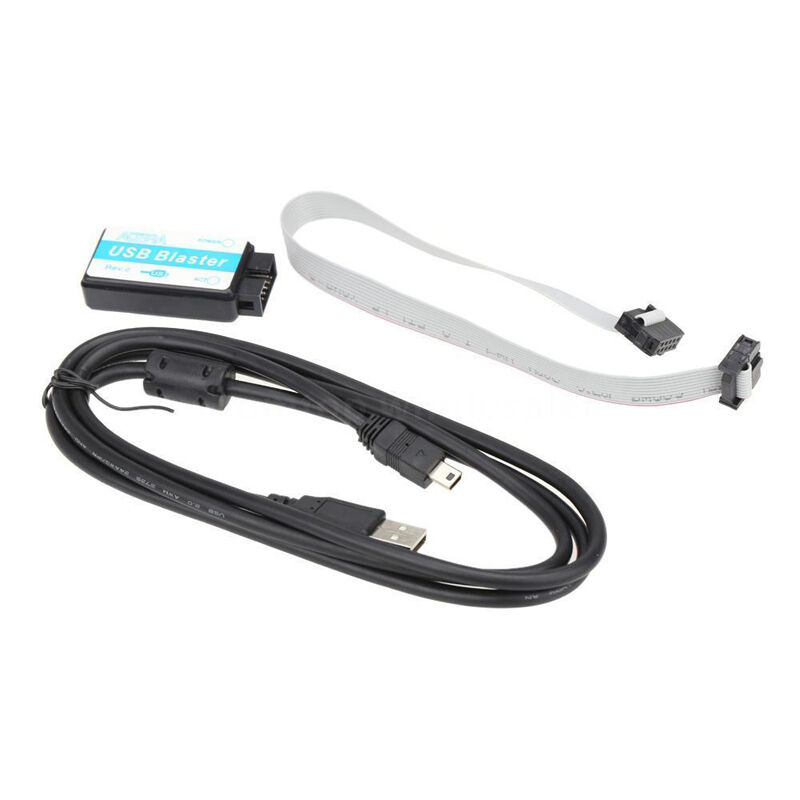

Package Includes:

1 x USB blaster device.

1 x USB cable.

1 x 10pin JTAGE cable.
