Name: UOTEK Mini RS232 to RS422 Converter Conversion Adapter DB9 Male Female Connector RS-232 to RS-422 Converter - Rytronics.in
Brand: Basic Components
SKU: RY1309
Price: 349.00 INR
Availability: InStock

Previous Product

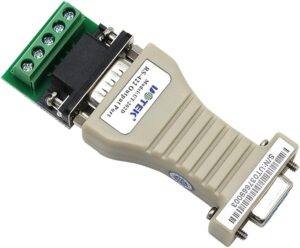

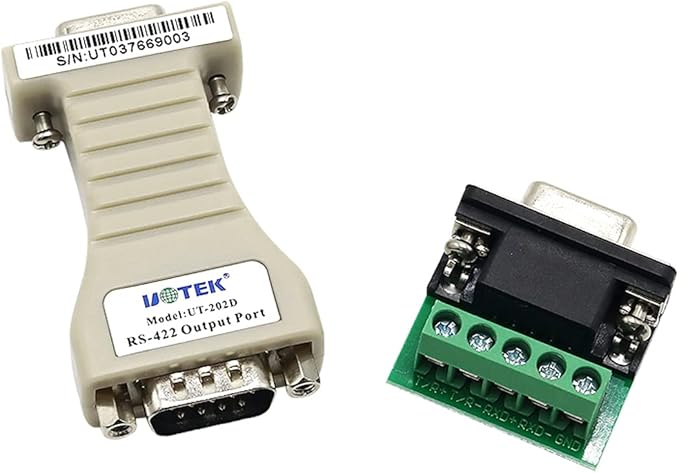

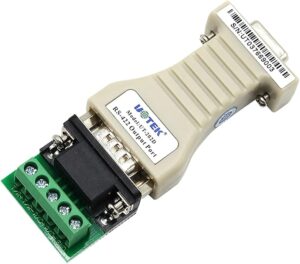

UOTEK Mini RS232 to RS422 Converter Conversion Adapter DB9 Male Female Connector RS-232 to RS-422 Converter

₹349.00 (inc. GST)

In stock

● Standards:RS-232C,RS-422 EIA/TIA
● Connector: RS-232 DB9 female, RS-422 DB9 male，with terminal block
● Operating mode: asynchronous half-duplex, differential transmission
● Transmission media: twisted-pair or shielded wire
● Baud rate: 300-115.2KBPS
● Dimension: 63mm×33mm×17mm
● Working temperature: -25℃ to 70℃
● Relative humidity: 5% to 95%
● Transmission distance: 1,200m(RS-422), 5m(RS-232)

SKU: RY1309 Category: Basic Components

Description

UOTEK Mini RS-232 to RS-422 Converter RS232 To RS422 Conversion Adapter DB9 Connector No Power Required Bidirectional

For communication between PC with different standard serial port and external equipments or intelligent instruments, standard serial conversion is necessary.
This converter is compatible with RS-232C, RS-422 standards. It converts RS-232 signals into balanced differential RS-422 signals. The transmission distance of RS-232 communication can be extended to 1.2km. It adopts unique “RS-232” charge pump technology to drive the system, and gains power without initializing RS-232 serial port.
This converter is with built-in zero delay auto receiving and transmitting conversion and unique I/O circuit auto control data flow direction without any handshake signal (RTS, DTR); this guarantees that there is no need to modify the programming under RS-232 full duplex mode, it will run smoothly under current software and hardware.
The transmission rate is 300-115.2kbps. It can be used between hosts, host and SCM, which building a point to point, point to multipoint long-distance communication networking. It is widely applied in industrial automation control system, all-in-one card, access control system, parking system, ATM system, bus charging system, canteen ticketing system, attendance system, and toll station system, etc.

● Standards:RS-232C,RS-422 EIA/TIA
● Connector: RS-232 DB9 female, RS-422 DB9 male，with terminal block
● Operating mode: asynchronous half-duplex, differential transmission
● Transmission media: twisted-pair or shielded wire
● Baud rate: 300-115.2KBPS
● Dimension: 63mm×33mm×17mm
● Working temperature: -25℃ to 70℃
● Relative humidity: 5% to 95%
● Transmission distance: 1,200m(RS-422), 5m(RS-232)
