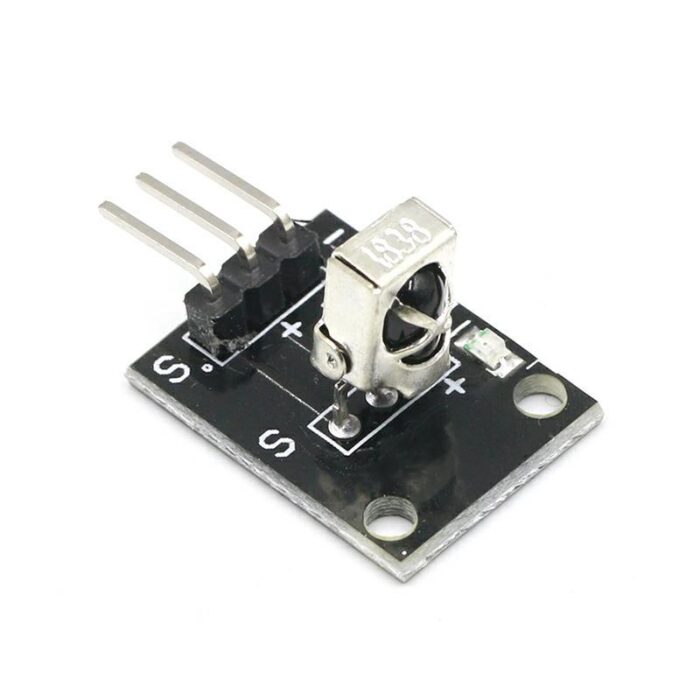

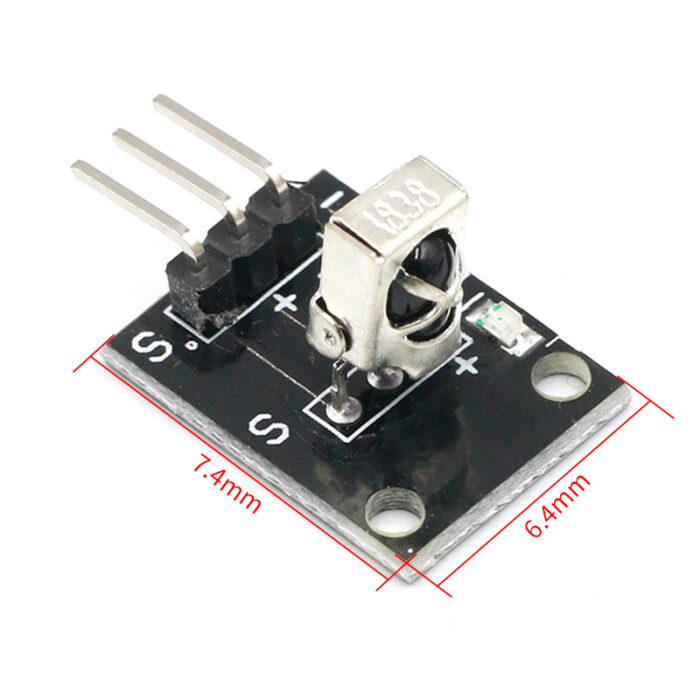

TSOP1738 Sensor IR Receiver Plastic (SM0038)

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

₹24.00 (inc. GST)

Out of stock

Infrared receiver.
Photo detector and preamplifier in one package
Internal filter for PCM frequency
Improved shielding against electrical field disturbance
TTL and CMOS compatibility
Supply Voltage: 5 V
Power consumption: 0.4 to 1.0 mA
Min. Ee irradiation: 0.35 mW/m2 typ.
Angle of detection: 90
Dimensions of the casing (mm): 12.5 x 10 x Thickness 5.8
Temperature range: -25 C to +85 C

SKU: RY-TSOP1738IR Categories: Sensor and Modules, Acceleration & Rotation Sensor, Sensors, Ultrasonic & Proximity

Add to Wishlist

Description

TSOP1738 Sensor IR Receiver Plastic (SM0038) is a infrared receiver tuned to receive IR of frequency 38 kHz only. It is perfect for making obstacle sensors and to read signals from most IR remotes(TV, AC, Home Theatre Remotes, etc). When used as a receiver in distance sensors, it provides better performance as it allows better reception and protection from ambient light compared to other IR receivers. It can be used to read signals of most IR Remotes.

Specification:-

Voltage supply: 3-5V
Typical voltage supply: 5V
Operating supply: 5mA
Detecting frequency: 38KHz
Detection angle: 90 degree
High range
Wide coverage area
Built-in PIN diode and preamplifier
Respond only IR signal
Low power consumption

Features:-

Output active low
Photodetector and preamplifier in one package
Internal filter for PCM frequency
High immunity against ambient light
Continuous data transmission possible
Improved shielding against electrical field disturbance
TTL and CMOS compatibility
Low power consumption
Suitable burst length of 10 cycles/burst

Package includes:

1 x TSOP1738 Sensor IR Receiver Plastic (SM0038)
