TP4056 1A Li-ion lithium Battery Charging Module With Current Protection – Type C

Sale!
TP4056-1A-Li-ion-lithium-Battery-Charging-Module-With-Current-Protection-–-Type-C
TP4056 1A Li ion lithium Battery Charging Module With Current Protection – Type C 1
TP4056-1A-Li-ion-lithium-Battery-Charging-Module-With-Current-Protection-–-Type-C

TP4056 1A Li-ion lithium Battery Charging Module With Current Protection – Type C

(24 customer reviews)

Original price was: ₹32.00.Current price is: ₹26.00. (inc. GST)

In stock

  • Cash on Delivery(COD) available on orders above 499/-
  • Free shipping on prepaid orders above 499/- use FREESHIP Coupon code!
  • 10 Days Return Policy!
  • Dispatch in 24 Hours from Warehouse!
Add to Wishlist
Add to Wishlist
  1. Input interface: Type C
  2. Current Protection: Yes
  3. Charging mode: Linear charging.
  4. Current: 1A adjustable.
  5. Charge precision: 1.5%.
  6. Input voltage: 4.5V-5.5V.
  7. Full charge voltage: 4.2V.
SKU: RY-TP4056C Categories: , , , ,

Description

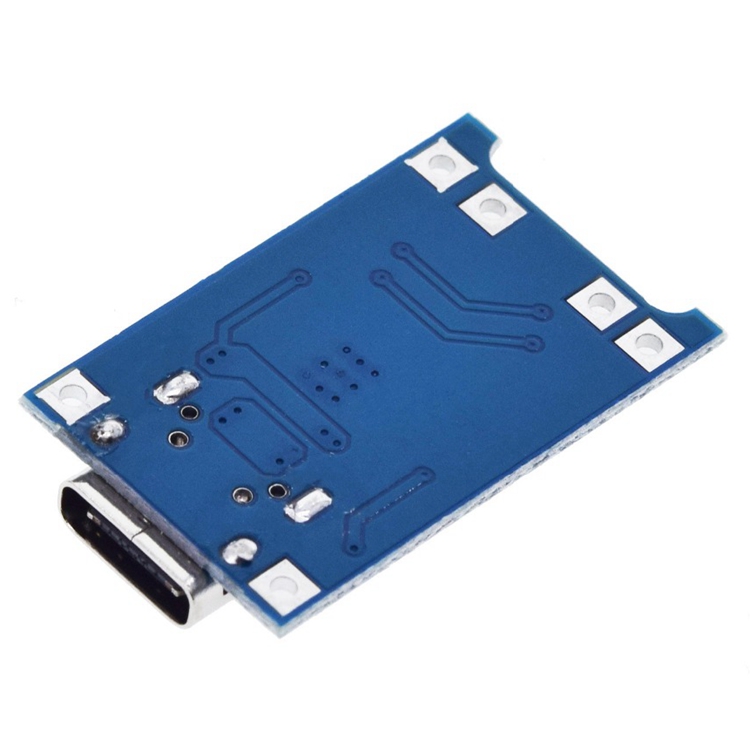

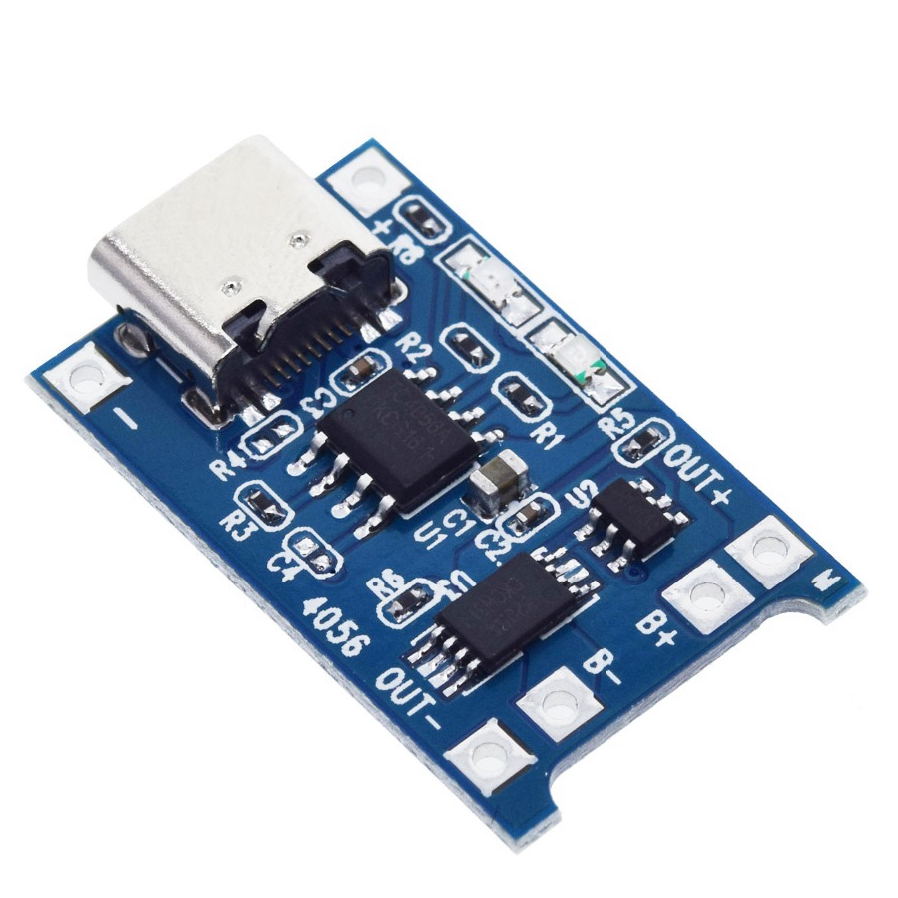

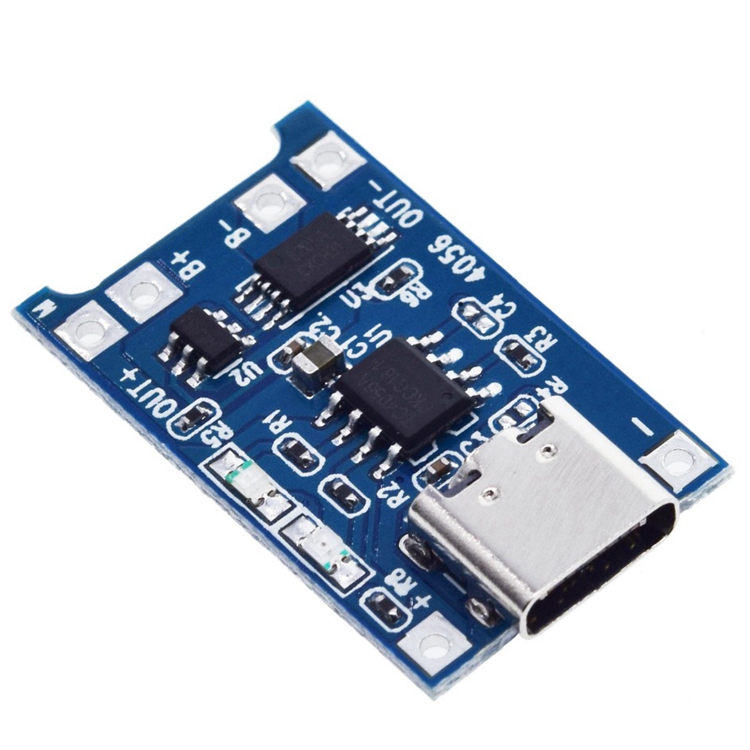

This TP4056 1A Li-Ion Battery Charging Board Type C with Current Protection is a tiny module, perfect for charging single cell 3.7V 1 Ah or higher lithium-ion (Li-Ion) cells such as 16550s that don’t have their own protection circuit. Based on the TP4056 charger IC and DW01 battery protection IC this module will offer 1A charge current then cut off when finished.

Furthermore, when the battery voltage drops below 2.4V the protection IC will switch the load off to protect the cell from running at too low of a voltage – and also protects against over-voltage and reverse polarity connection (it will usually destroy itself instead of the battery) however please check you have it connected correctly the first time.

Manufactured under fully machinery processing. Each module is tested OK before shipment, so it has high reliability for the best performance. In conclusion, it is a special design for a single lithium battery charging. TP4056 Other features include the current monitor, under-voltage lockout, automatic recharge, and two status pins to indicate charge termination and the presence of an input voltage.

Features :

  1. Led indicator: Red is charging Green is fully charged.
  2. Current Protection: Yes
  3. Inversed polarity: NO.
  4. Use mature charging chip TP4056 for simple peripheral circuits, good protection performance, and high charging accuracy.
  5. Fully machinery automated processing, all patch parts manufacturing.

Package Includes :

1 x TP4056 1A Li-ion Lithium Battery Charging Module With Current Protection – Type C
