Name: TEC1-12706 40x40mm Thermoelectric Cooler 6A Peltier Module - Rytronics.in
Brand: Sensor and Modules
SKU: RY-TEC112706
Price: 175.00 INR
Availability: InStock
Rating: 3.00 (2 reviews)

Sale!

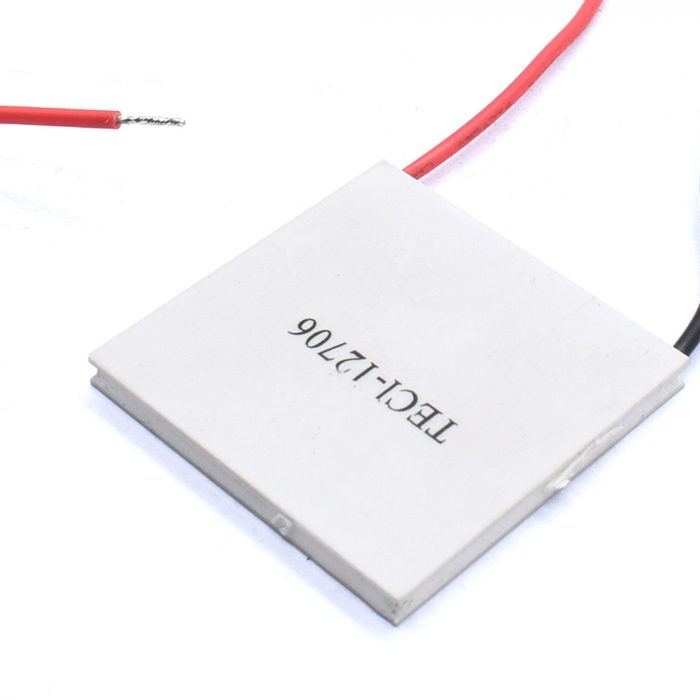

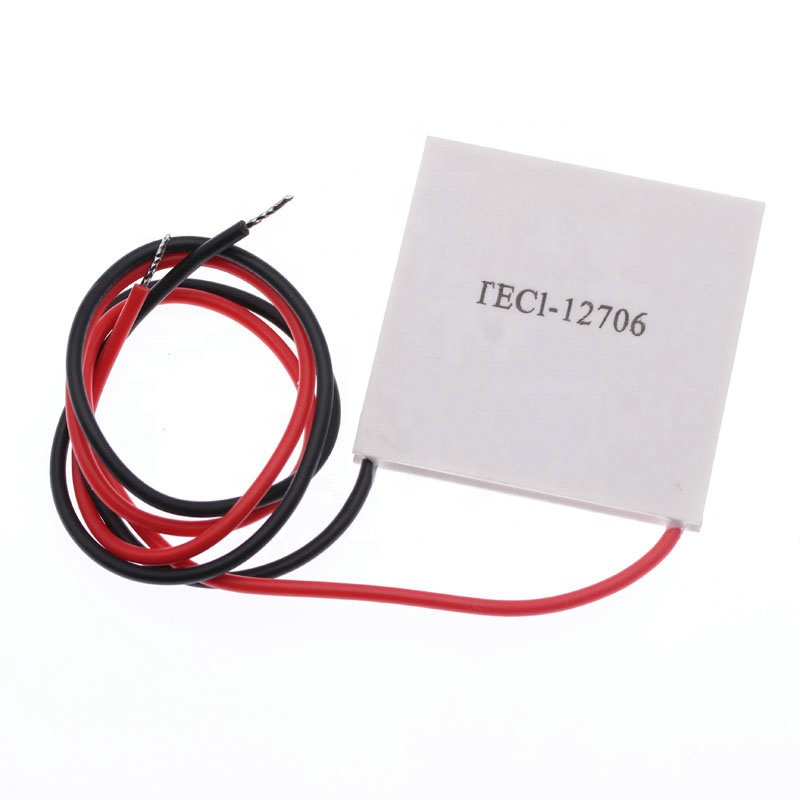

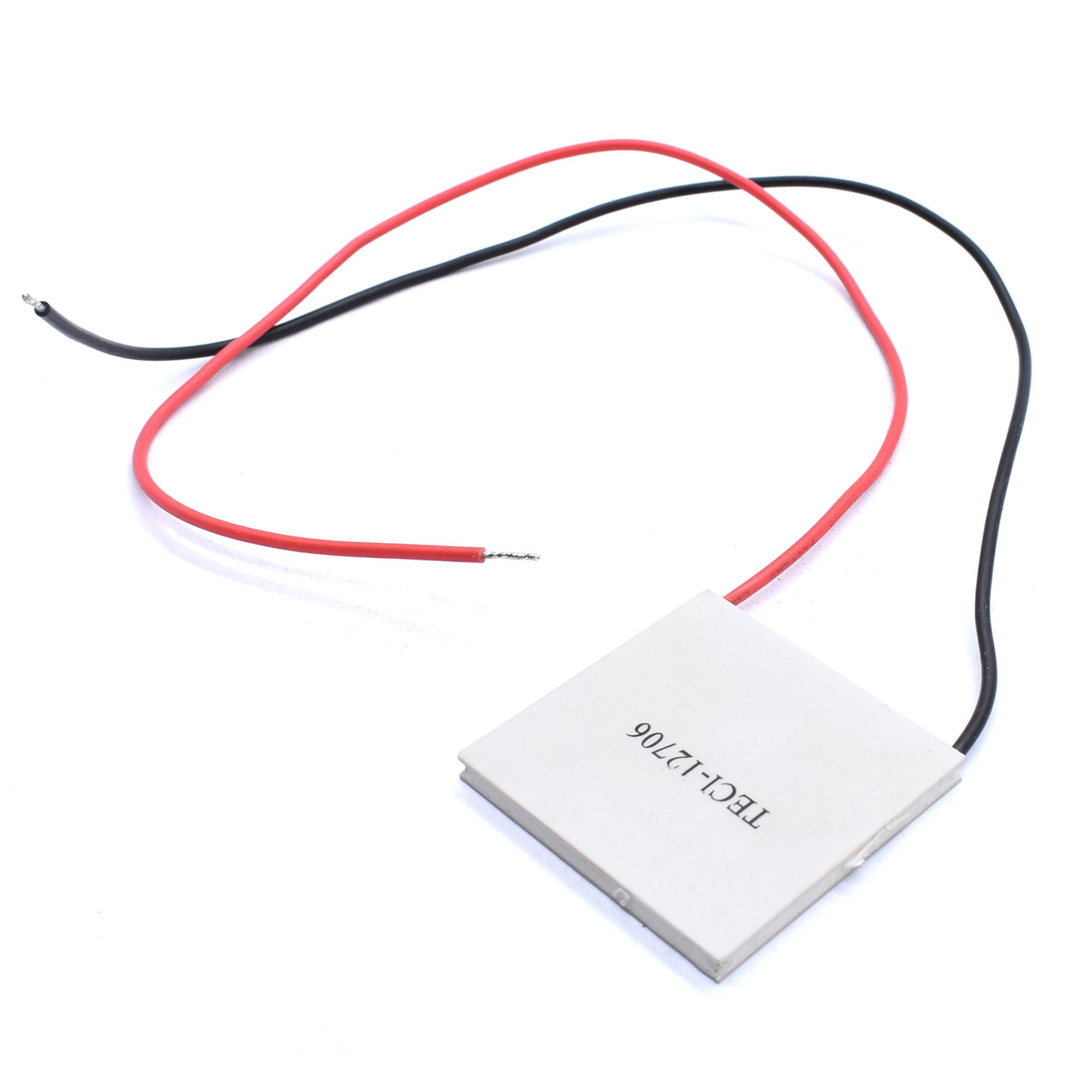

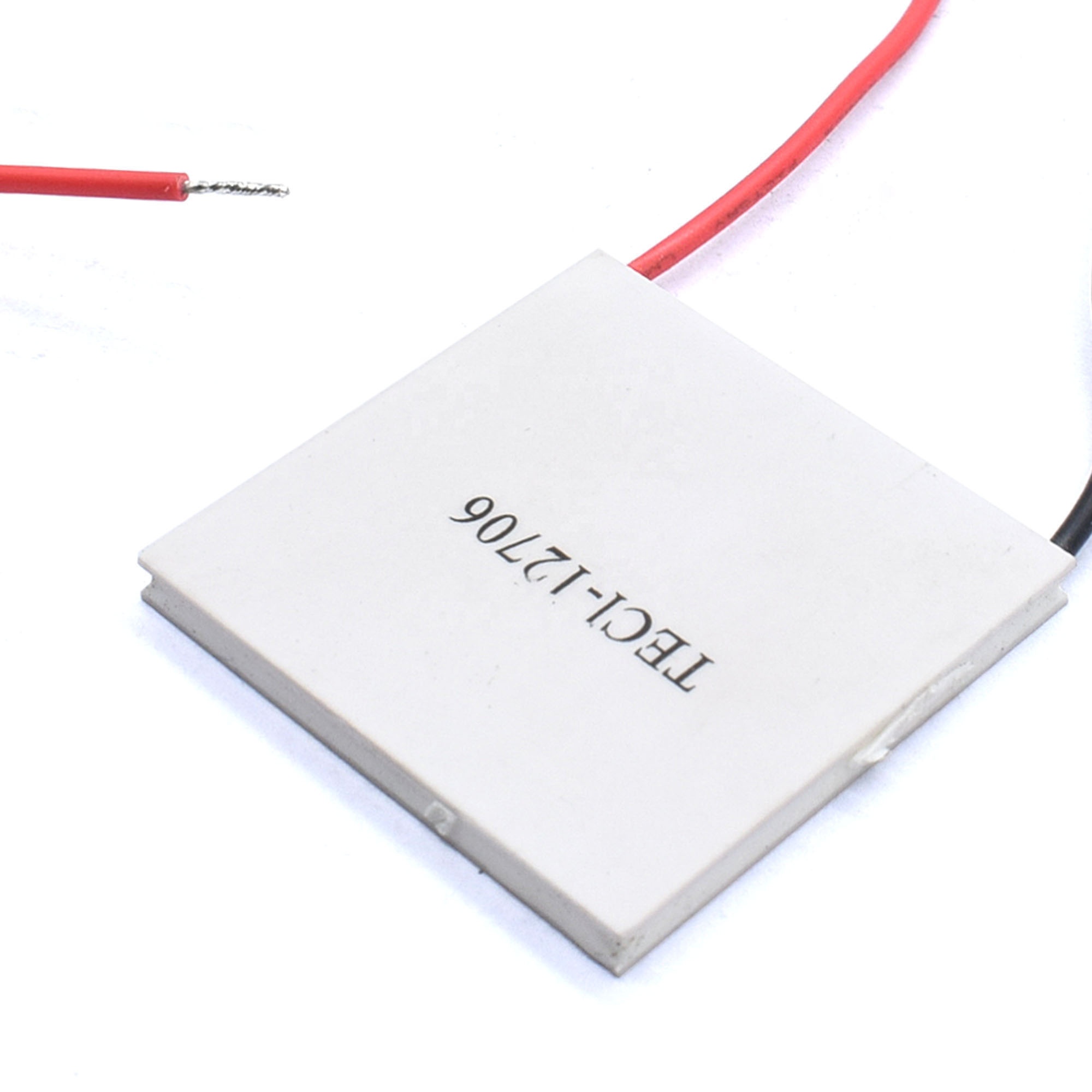

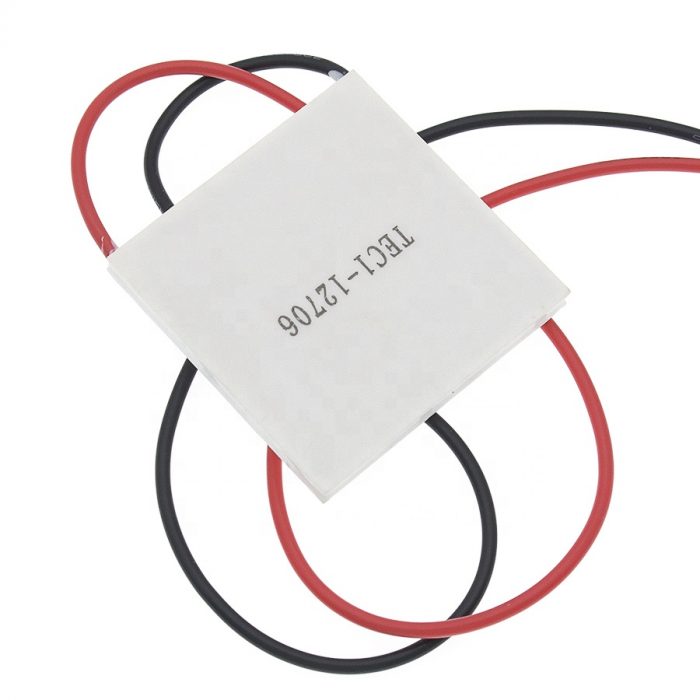

TEC1-12706 40x40mm Thermoelectric Cooler 6A Peltier Module

Rated 3.00 out of 5 based on 2 customer ratings

(2 customer reviews)

Original price was: ₹399.00.Current price is: ₹175.00. (inc. GST)

In stock

Quantity based pricing

Quantity	Discount (%)	Price
1 - 10	—	₹175.00
11 - 20	—	₹215.00
21+	—	₹210.00

Model number: TEC1-12706
Operating Voltage: 12V
Maximum Voltage Umax (V) : 15.4V
Maximum Current Imax (A) : 6A
Maximum Power: 92 W
Maximum Temperature: 138°C
Power Cord: 200mm

SKU: RY-TEC112706 Categories: Sensor and Modules, Miscellaneous Module, Other Sensors, Temp, Humidity & Gas Sensor

Description

Product Description

Looking to cool down your DIY project or any electronic device then you are at the right product. The TEC1 12706 40×40 mm Thermoelectric Cooler 6A Peltier Module is the simple application of the Peltier Thermoelectric Effect. The module features 127 semiconductor couples in the area of 40 x 40mm which very effectively cools and heats up to 90°C.

The thermoelectric cooler is also known as TEC or Peltier Module creates a temperature differential on each side. One side gets hot and the other side gets cool. They use to either warm something up or cool something down; above all, you can use either side. You can also take advantage of a temperature differential to generate electricity.

A thermoelectric cooler (TEC) module is a semiconductor-based electronic component that functions as a small heat pump. By applying the DC power source to a TEC, heat will be transferred from one side of the module to the other. It creates a cold and hot side. They are widely useful in industrial areas, for example, computer CPU, CCDs, portable refrigerators, medical instruments, and so on.

Operating Tips

Max. Operating Temperature: 138 Degree C
Do not exceed Imax or Vmax when operating a module.
Please carry out moisture protection options (sealing) in final application use.
Life expectancy: 200,000 hours
Failure rate based on longtime testing: 0.2%.

Features

Small module.
Operable up to 138°C.
Easy transition between the hot side to the cool side and vice-versa just by reversing the polarity of the supply.
Quality tested cooling cells.
Solid-state, vibration-free, noise-free.
Simple to install and operate.
Should use with a heat sink.

Package Includes

1 x TEC1-12706 40x40mm Thermoelectric Cooler 6A Peltier Module
