TDA2030A Audio Power Amplifier Module

Original price was: ₹103.00.Current price is: ₹99.00. (inc. GST)

In stock

  • Cash on Delivery(COD) available on orders above 499/-
  • Free shipping on prepaid orders above 499/- use FREESHIP Coupon code!
  • 10 Days Return Policy!
  • Dispatch in 24 Hours from Warehouse!
Add to Wishlist
Add to Wishlist

1, onboard TDA2030A audio amplifier chip 2, mono 18W amplifier circuit design
2, onboard horn terminal block
3, onboard 10K adjustable resistor, you can adjust the volume of amplification
4, onboard power indicator
5, the main pin of the chip has been drawn, you can directly input the audio signal
6, working voltage: 6 ~ 12V
7, board size: 31.6 (mm) x 23.2 (mm)

SKU: RY-TDA2030 Categories: ,

Description

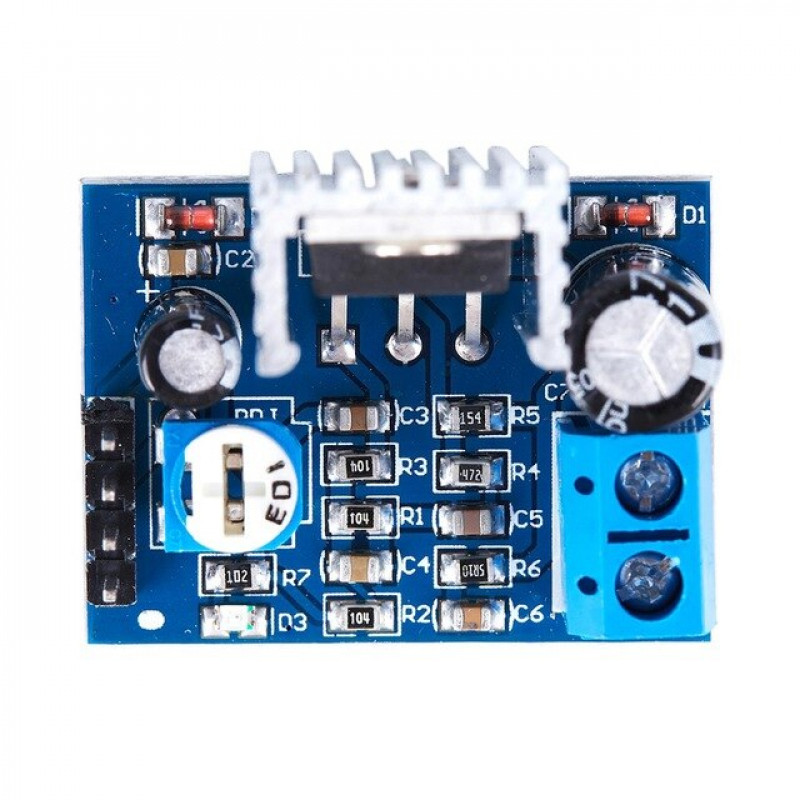

TDA2030A Audio Amplifier Board Module

Onboard TDA2030A audio power amplifier chip, single-channel 18W power amplifier circuit design, onboard the loudspeaker wiring seat, onboard 10K adjustable resistor, can adjust the enlarged volume, onboard power indicator. Want to increase the audio output capability of your project Well, then this is the perfect module for you. This module is based on the famous TDA2030A Audio Amplifier Module which is capable of 18-watt power output with very low harmonic distortion. This TDA2030A audio amplifier circuit, often using a V-5-pin single in-line plastic package structure

Features:-

  • Amplifier IC: TDA2030A
  • Operating Voltage: 6~12VDC
  • Audio Output: 18W max
  • Onboard TDA2030A Audio amplifier IC
  • Mono channel 18W Power amplifier circuit design
  • Onboard horn socket
  • 10 k adjustable resistance to adjust the volume of the amplification
  • Onboard power indicator light
  • Chip has lead to the main pin, can directly input the audio signal
  • Length: 32mm
  • Width: 22mm
  • Height: 23mm
  • Approx Weight: 12gm

Applications:

  • Bluetooth Stereo Audio hands-free/headsets etc.

Package Includes:

  • 1 x TDA2030A Audio Amplifier Board Module Single Mono
