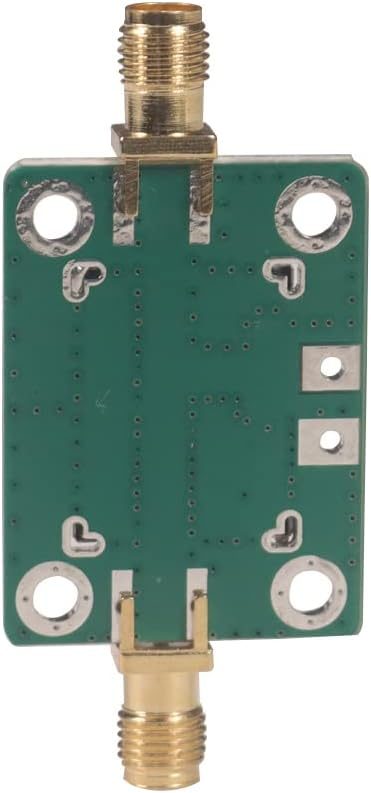

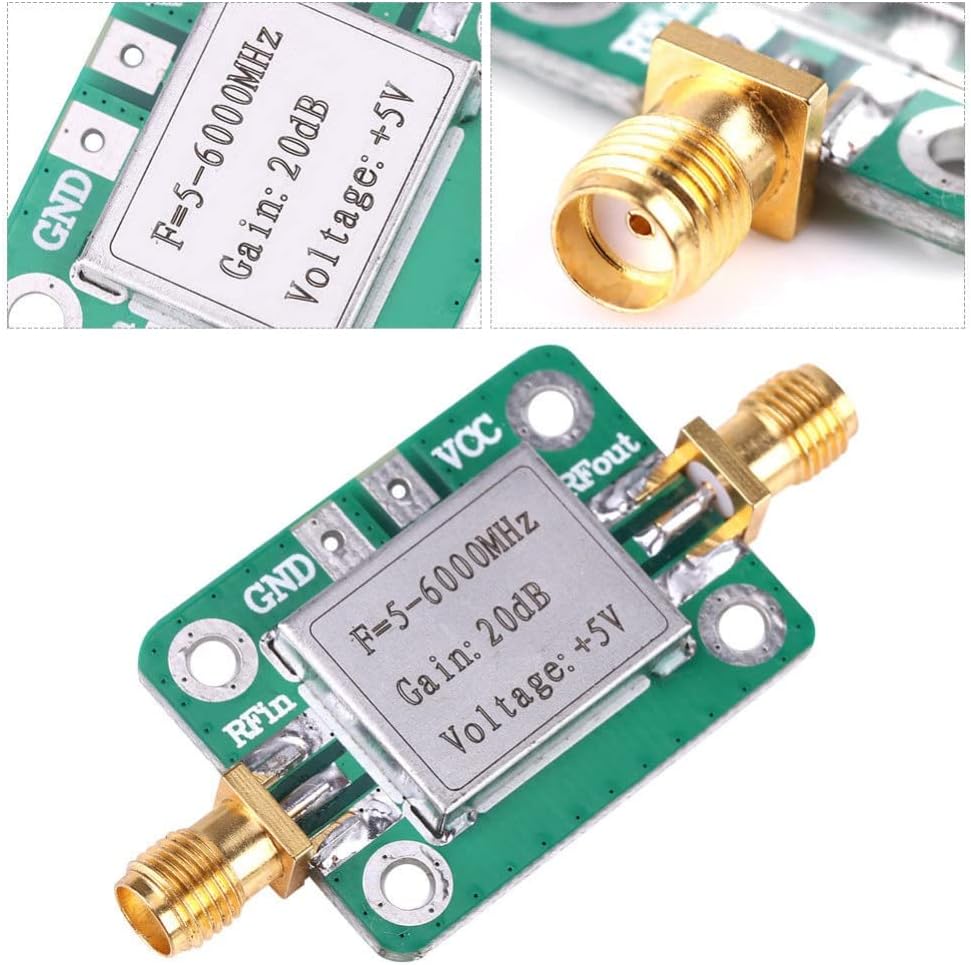

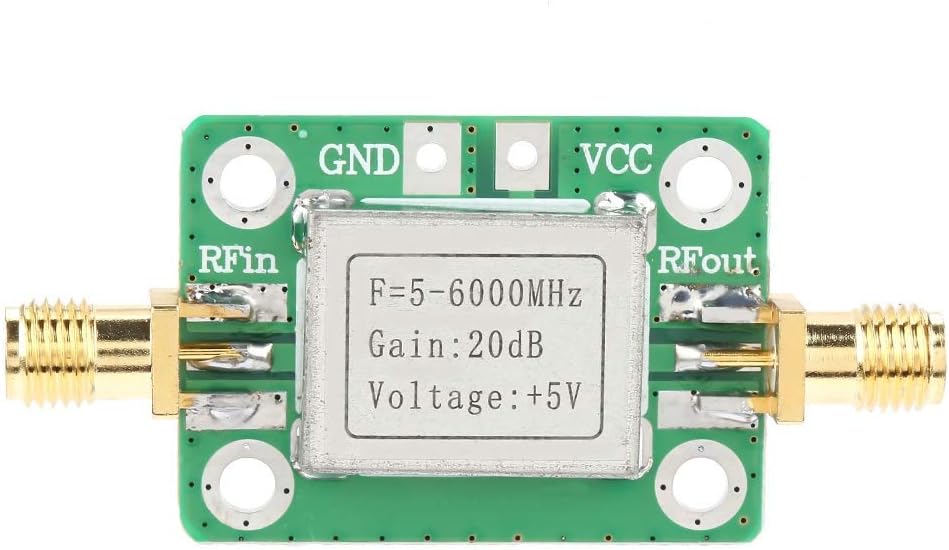

SPF5189 LNA 5-6000mhz RF Low Noise Broadband Signal Amplifier 20dB Gain RF Signal Receiver Module Shield Board (6000MHz)

449.00 (inc. GST)

Out of stock

(1) Operating frequency: 5 – 6000MHz
(2) Amplifier gain: 20dB
(3) Max. Output power: + 21dBm (100mW) @ 1dB compression point
(4) Operating current: 85mA (5V)
(5) Supply voltage: 5VDC
(6) System impedance: 50 ohms
(7) Color: Green

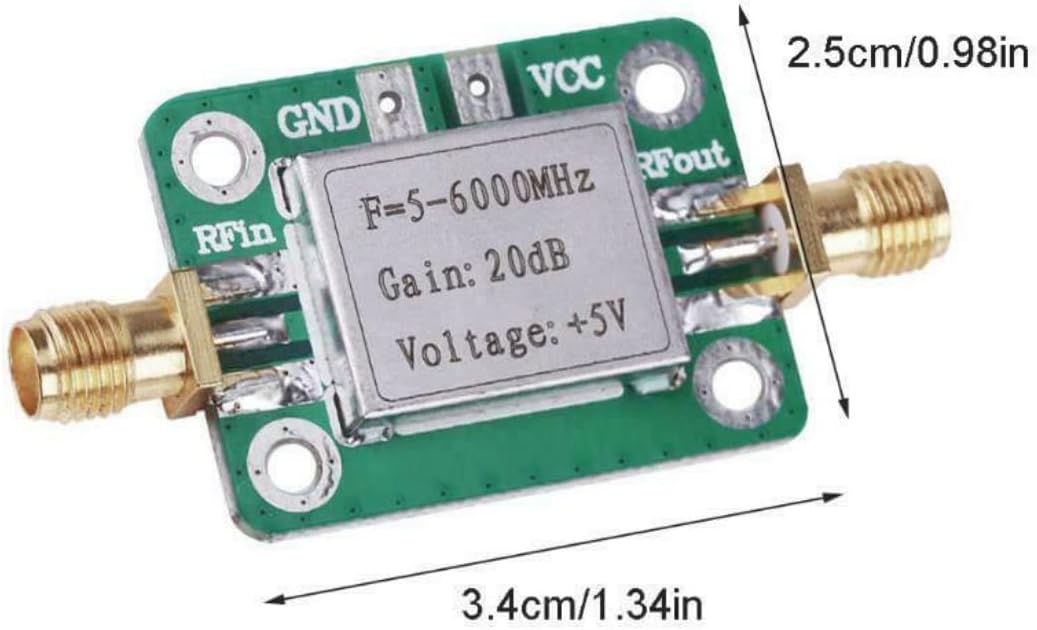

(8) Size: 23*28MM

SKU: RY1186 Category:
Add to Wishlist
Add to Wishlist

Description

  • * Wide Frequency Range * — This wideband RF Signal Amplifier has a large dynamic range and a wide operating frequency range, 4000MHz RF Amplifier is LNA is 5 – 6000MHz.
  • * Low Noise * — In the case of amplifying weak signals, the amplifier itself can be very noisy, so it is desired to reduce this noise to improve the signal-to-noise ratio of the output.This signal amplifier is just the product designed to reduce noise.
  • * Increases Communication Distance * 5-6000MHz RF low noise amplifier is 20dB Gain.
  • * Wide Application * — Suitable for all types of fixed gain amplification of RF signals.Such as wireless communication transceiver cards, tower top amplifiers (TMAs), combiners, repeaters and remote/digital wireless broadband terminal equipment applications.



Operating frequency: 5 – 6000MHz
(2) Amplifier gain: 20dB
(3) Max. Output power: + 21dBm (100mW) @ 1dB compression point
(4) Operating current: 85mA (5V)
(5) Supply voltage: 5VDC
(6) System impedance: 50 ohms
(7) Color: Green
(8) Size: 23*28MM
