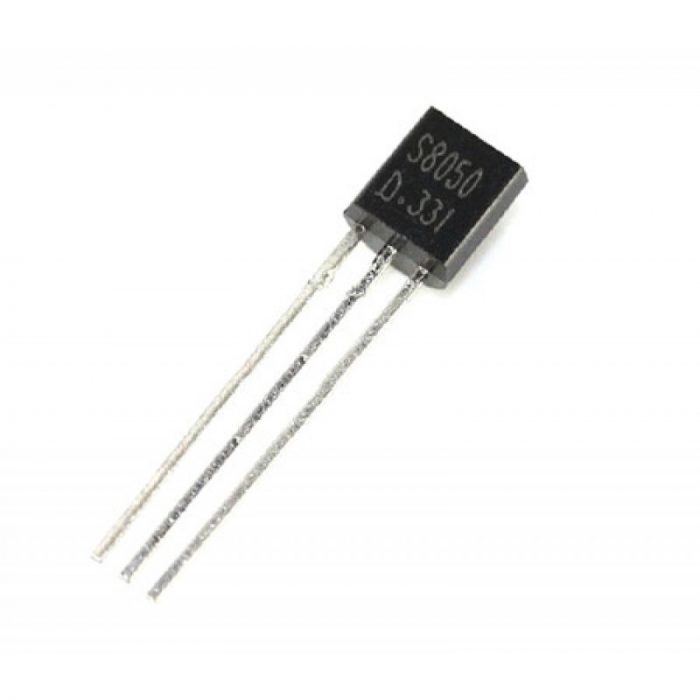

S8050 NPN General Purpose Transistor 20V 700mA TO-92 Package – 5 Piece Pack

(1 customer review)

15.00 (inc. GST)

In stock

  • Cash on Delivery(COD) available on orders above 499/-
  • Free shipping on prepaid orders above 499/- use FREESHIP Coupon code!
  • 10 Days Return Policy!
  • Dispatch in 24 Hours from Warehouse!
Add to Wishlist
Add to Wishlist

Transistor Polarity NPN
Collector−Emitter Voltage (VCEO) 20V
Collector−Base Voltage (VCBO) 30V
Continuous Collector Current (Ic) 700mA
Emitter Base Voltage (VEBO) 5V
Operating Temperature Range -65 – 150°C
DC Current Gain (hFE) 120-400
Current Gain Bandwidth (fT) 100MHz
Output Capacitance (Cob) 9pF

SKU: RY1018 Categories: ,

Description

S8050 is a three layer NPN device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE.

Features:-

• Low saturation voltage

• Simple drive requirements

• High safe operating area

• For low distortion complementary designs

• Easy to carry and handle

Detailed Specifications:-

Transistor Polarity NPN
Collector−Emitter Voltage (VCEO) 20V
Collector−Base Voltage (VCBO) 30V
Continuous Collector Current (Ic) 700mA
Emitter Base Voltage (VEBO) 5V
Operating Temperature Range -65 – 150°C
DC Current Gain (hFE) 120-400
Current Gain Bandwidth (fT) 100MHz
Output Capacitance (Cob) 9pF

Related Documents:-

S8050 Transistor Datasheet

* Product Images are shown for illustrative purposes only and may differ from actual product.
