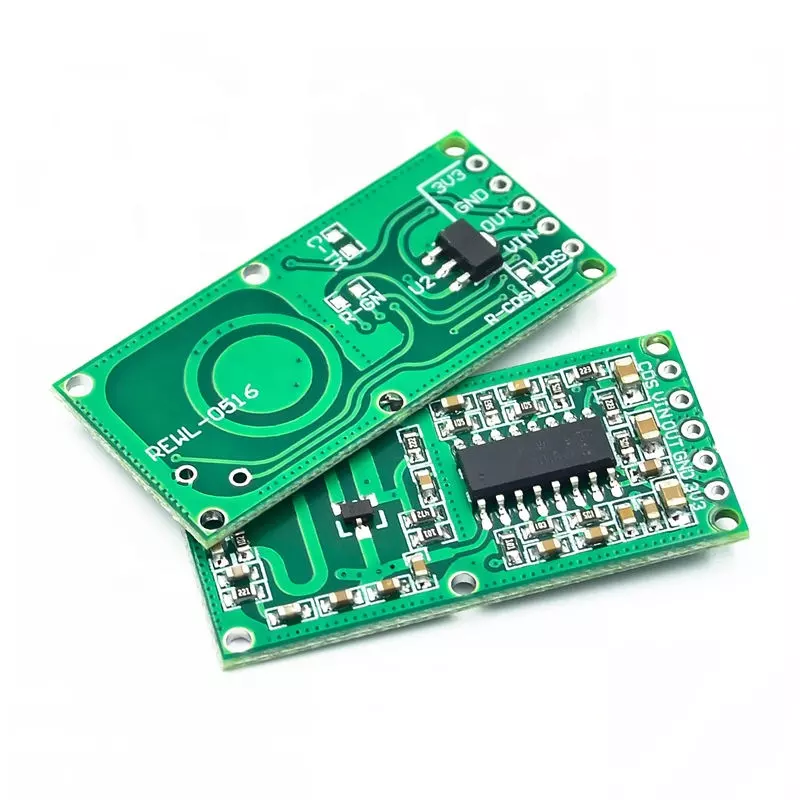

RCWL-0516 Microwave Radar Sensor Switch Module (with diode on board)

₹49.00 (inc. GST)

In stock

Transmission signal processing control chip RCWL-9196
Wide operating voltage range 4.0V to 28.0V
Penetrating detection capability, compared with the traditional infrared feeling PIR
Adjustable Block time and distance
Operating Current: 2.8mA (typical); 3mA (max)
Detection Distance: 5-9m
Transmitting Power: 20mW (typical); 30mW (max)

SKU: RY-RCWL0516D Categories: Ultrasonic & Proximity, Sensor and Modules, Sensors

Description

RCWL0516 Micro Wave Radar Human Body Induction Switch

Name: RCWL-0516 Microwave Radar Sensor Switch Module (with diode on board) - Rytronics.in
Brand: Ultrasonic & Proximity
SKU: RY-RCWL0516D
Price: 49.00 INR
Availability: InStock

The RCWL-0516 Microwave Radar Sensor module has been designed as an alternative to the common PIR motion sensors widely used in burglar alarms and security lights. Like the PIR Sensor, this sensor also detects only movements within its detection range.

But instead of sniffing the blackbody radiation from a moving person, this sensor uses a “microwave Doppler radar” technique to detect moving objects. It has a sensitivity range of ~7 meters. When triggered, its TTL-level output (OUT) pin will switch from LOW (0 V) to HIGH (3.3 V) for a finite time (2 to 3 s) before returning to its idle (LOW) state.

This flexible sensor module can easily be used in conjunction with many microcontrollers and even without a microcontroller at all. It can handle power supply inputs anywhere from 4 to 28 V.

The output pin can be utilized for a multitude of tasks, such as for driving an aural/visual indicator or even linking with the I/O of any 3-V microcontroller for further processing.

During construction, avoid any metal part in front of the sensor module. Similarly, always keep a minimum of 1-cm clear space on the front and rear side of the module.

Doppler microwave detection devices transmit a continuous signal of low-energy microwave radiation at a target area and then analyze the reflected signal. The detector registers a change in the frequency of waves occurring when the microwave source and the vehicle are in motion relative to one another. This allows the device to detect moving vehicles.

Radar is capable of detecting distant objects and determining their position and speed of movement. With vehicle detection, a device directs high frequency radio waves at the roadway to determine the time delay of the return signal, thereby calculating the distance to the detected vehicle.

Studies show that microwave sensors provide practically accurate traffic counts in normal weather conditions, however, their accuracy may decrease significantly in adverse weather conditions

Specifications:

Supply Voltage: 4–28 VDC (tested with 5 V at my lab)

Operating frequency: ~3.2 GHz (observed by me at my lab)

Transmit power: 20 mW (typical)/30 mW (max)

Sensing Distance: 5–7 m (>3 m measured at my lab)

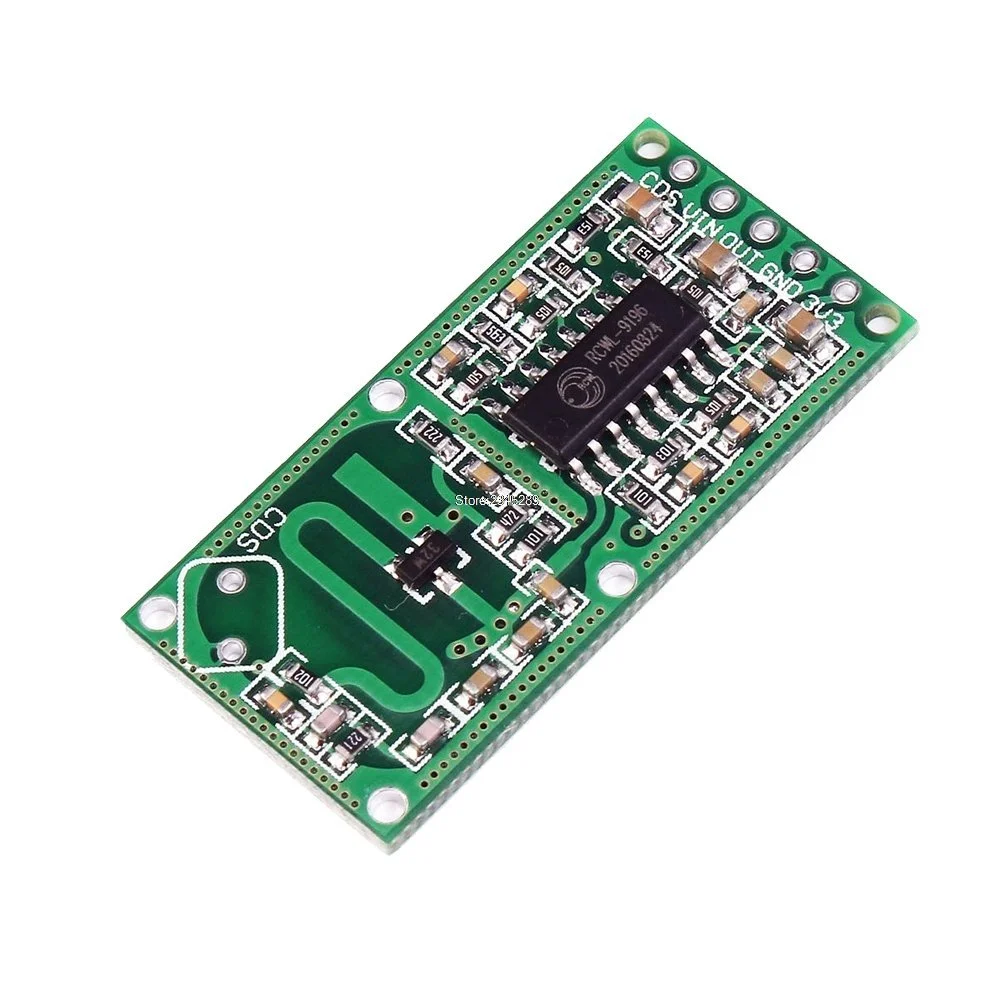

Pinouts:

CDS — Sensor disable input (low = disable)

VIN — 4- to 28-V DC supply input

OUT — HIGH (3.3 V) motion detected/LOW (0 V) idle

GND — Ground/0 V

3V3 — Regulated DC output (100 mA max)

Features :

Transmission signal processing control chip RCWL-9196
Wide operating voltage range 4.0V to 28.0V
Penetrating detection capability, compared with the traditional infrared feeling PIR
Adjustable Block time and distance
3.3V output power supply

Package Includes :

1 x RCWL-0516 Microwave Radar Sensor(with diode on board)
