RC3563 Battery Internal Resistance Tester 200Ω 100V 3-Digit Lead Acid Lithium Battery Tester True 4-Wire Auto Batter

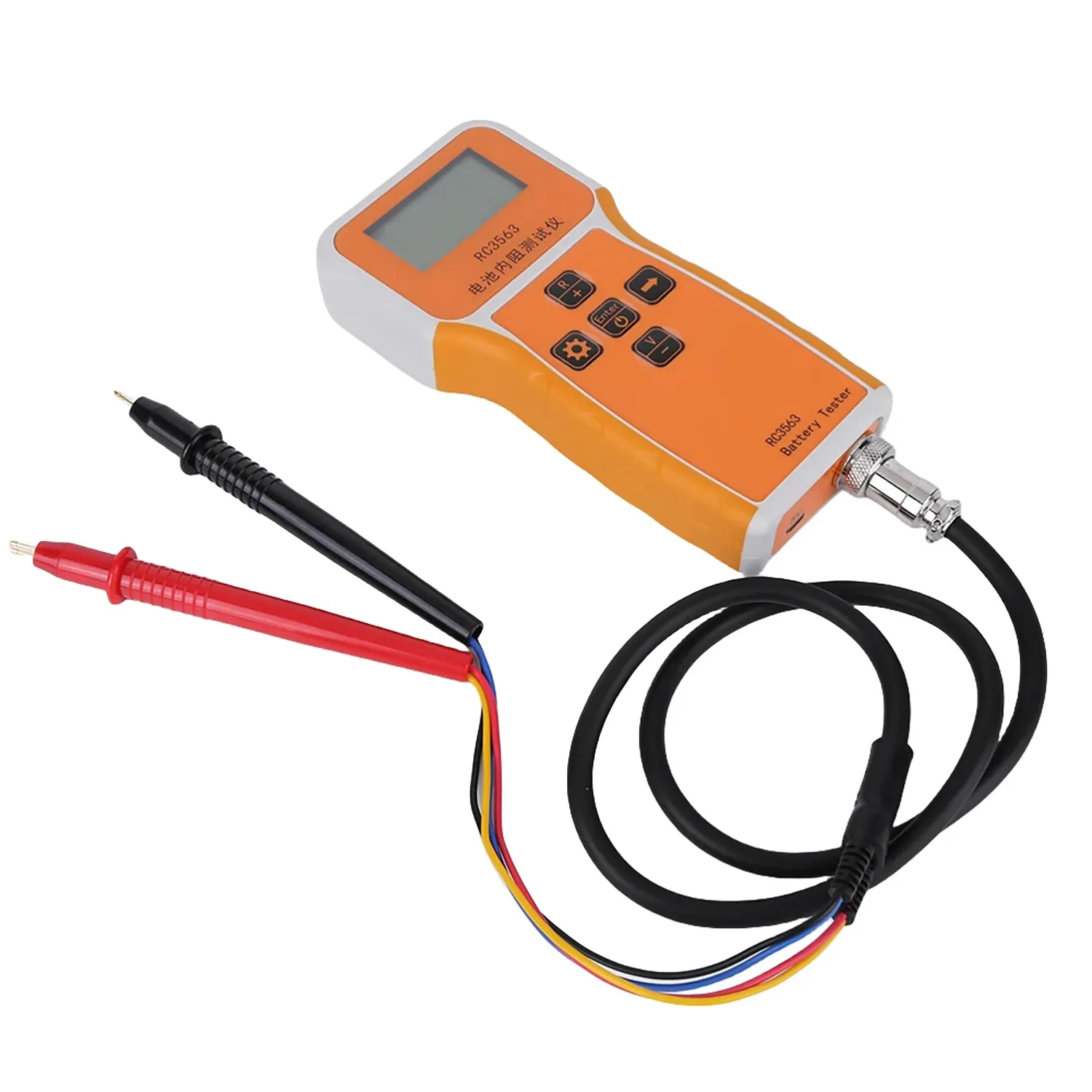

RC3563 IR Internal Resistance Detector High Precision Voltage Tester for Lithium Battery

₹3499.00 (inc. GST)

In stock

Test Signal Current:20mΩ, 50mA; 200mΩ, 5mA; 20Ω, 0.5mA
Model Number:RC3563
Testing Voltage:DC 1mV~100V
Display Type:Digital Only

SKU: RY1370 Category: Batteries BMS and Accessories

Description

The RC3563 Battery Internal Resistance Tester is a state-of-the-art 4-wire battery tester designed for accurate and reliable measurements. Ideal for testing a wide range of batteries including LiPo, LiFePO4, NiMH, and NiCd, this Battery IR tester simultaneously measures AC resistance and DC voltage with high precision. Its intelligent control system, clear LCD display, and built-in battery make it perfect for on-the-go testing in manufacturing, maintenance, and research environments.

RC3563 Battery IR Tester Features:

True 4-wire testing for minimized contact resistance errors
Dual measurement capability: measures both AC resistance and DC voltage simultaneously.
High accuracy: 0.5% measurement precision for both resistance and voltage
Intelligent control with both automatic and manual range options
Versatile usage for batteries, capacitors, and high-precision resistors

\RC3563 Battery IR Tester Specifications:

Model	Battery Internal Resistance Tester RC3563
Measurement Parameters	AC Resistance, DC Voltage
Basic Accuracy	0.5% for both resistance and voltage
Resistance Measuring Range	1 μΩ ~ 200 Ω
Voltage Measuring Range	1 mV ~ +100 V DC
Test Signal Frequency	AC 1 KHz
Test Signal Current Options	20 mΩ: 50 mA; 200 mΩ: 5 mA; 20 Ω: 0.5 mA
Resistance Ranges	6 ranges (automatic and manual)
Voltage Ranges	3 ranges (automatic and manual)
Display	LCD, updates 5 times per second

Package Includes:

1 x RC3563 IR Tester with Probe, Clip & Fixture
