Heartbeat sensor arduino

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

₹155.00 (inc. GST)

In stock

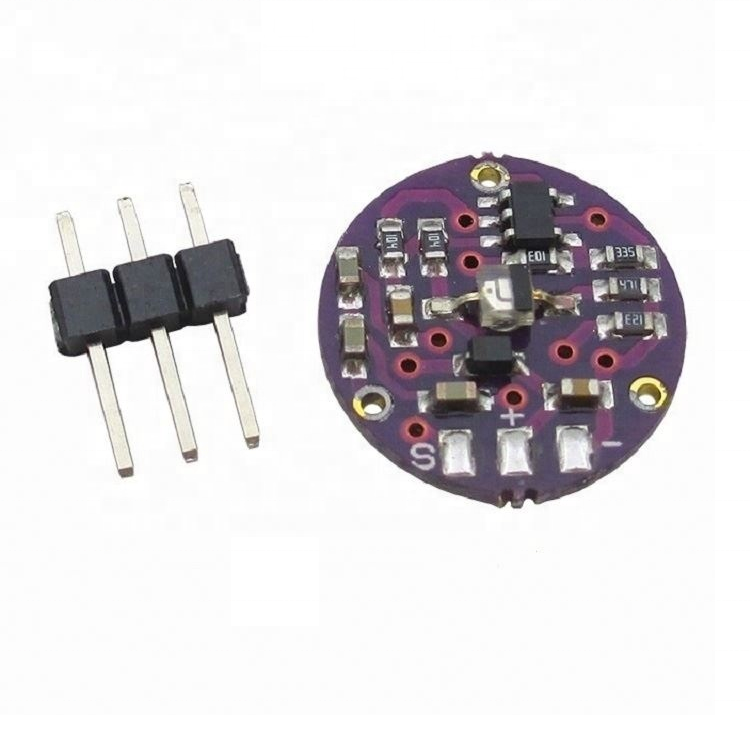

Heartbeat sensor arduino is Pulse Heart Beat-Rate Sensor for Arduino or Arduino compatible board.

Heart rate data can be really useful whether you’re designing an exercise routine, studying your activity or anxiety levels. The problem is that heart rate can be difficult to measure. Now, the Pulse Sensor Amped can solve that problem!

SKU: RY-HB01 Categories: Health Sensor, Sensor and Modules, Sensors Tags: ecg, heart beat, heart sensor, pulse rate

Description

Heartbeat sensor arduino is Heart Pulse Sensor which is a well-designed plug-and-play heart-rate sensor for Arduino and Arduino compatible board. It can be used by students, hobbyists, athletes, makers, and game & module developers who want to easily incorporate live heart-rate data into their projects. The sensor can be clips(if applicable) onto a fingertip or earlobe and plugs right into Arduino and Arduino compatible board. with some jumper cables.

Features :

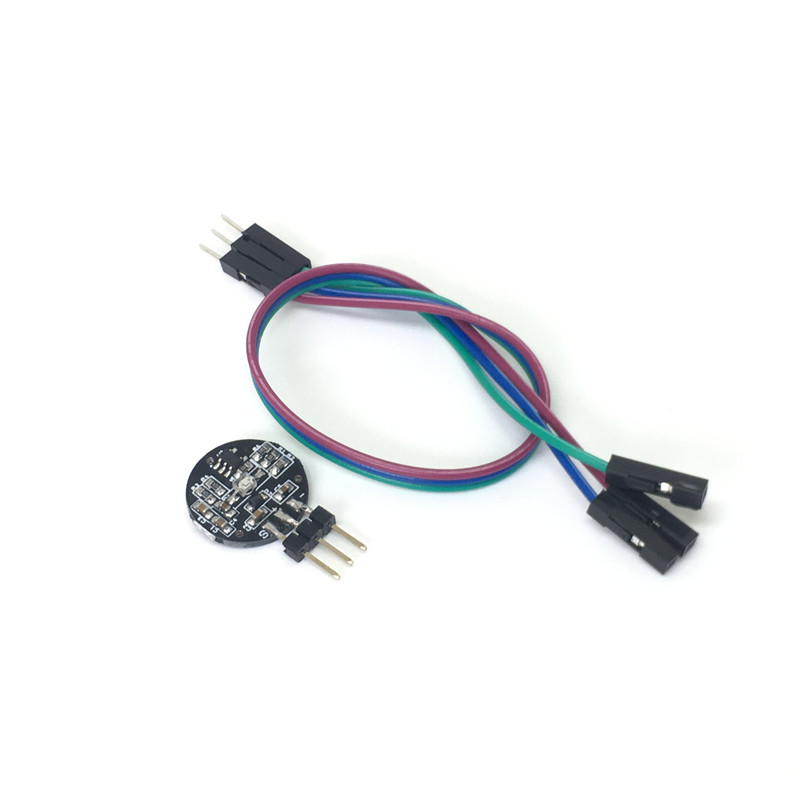

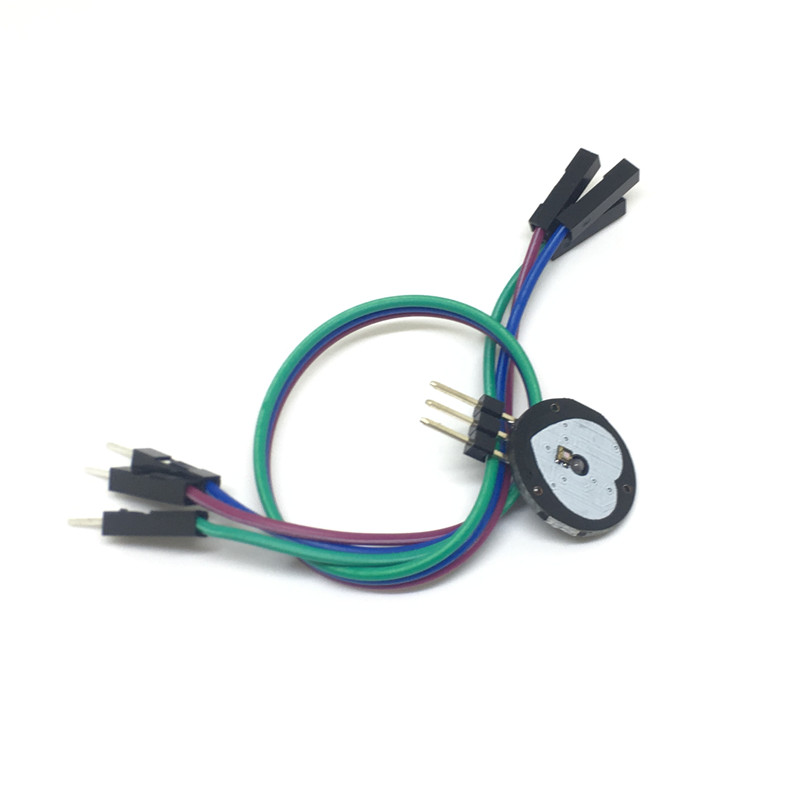

A Color-Coded Cable with length 24inch, with a standard male header connectors. Plug it straight into an Arduino or a Breadboard.
3 Transparent Stickers. These are used on the front of the Pulse Sensor to protect it from oily fingers and sweaty earlobes.
The Pulse Sensor has 3 holes around the outside edge which make it easy to sew it into almost anything.

Specifications:

Maximum Ratings	VCC	3.0 – 5.5V
	IMax (Maximum Current Draw)	< 4mA
	VOut (Output Voltage Range)	0.3V to Vcc
Wavelength	LED Output	565nm
Wavelength	Sensor Input	525nm
Dimensions	L x W (PCB)	15.8mm (0.625″)
Dimensions	Lead Length	20cm (7.8″)
