PIR Motion Sensor Detector Module HC-SR501

Sale!

PIR Motion Sensor Detector Module HC-SR501

(6 customer reviews)

Original price was: ₹82.00.Current price is: ₹69.00. (inc. GST)

In stock

  • Cash on Delivery(COD) available on orders above 499/-
  • Free shipping on prepaid orders above 499/- use FREESHIP Coupon code!
  • 10 Days Return Policy!
  • Dispatch in 24 Hours from Warehouse!
Add to Wishlist
Add to Wishlist
  • Infrared Sensor with Control Circuit Board
  • The Sensitivity and Holding Time Can be Adjusted
  • Detection Distance: 3 to 7m (can be adjusted)
  • Detection Range: <140°
SKU: RY-PIR01 Categories: , , Tags: ,

Description

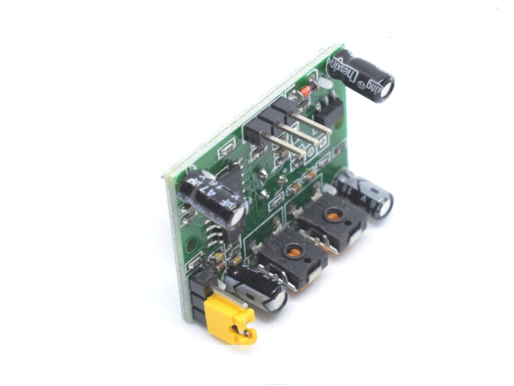

The PIR Motion Sensor Detector Module is used for motion detection. This is also known us “PIR”,  “Passive Infrared” and “IR Motion” sensor. The module has an on-board pyroelectric sensor, conditioning circuitry and a dome shaped Fresnel lens. It is used to sense movement of people, animals, or other objects. They are commonly used in burglar alarms and automatically-activated lighting systems.

Specifications:-

  • Color: White + Green
  • Infrared Sensor with Control Circuit Board
  • The Sensitivity and Holding Time Can be Adjusted
  • Working Voltage Range: DC 4.5V- 20V
  • Current Drain: <60uA
  • Detection Range: <140°
  • Voltage Output: High/Low level Signal: 3.3V TTL output
  • Detection Distance: 3 to 7m (can be adjusted)
  • Delay Time: 5 to 200s (Can be Adjusted, Default 5s +/- 3%)
  • Blockade time: 2.5s (Default)
  • Work temperature: -20-+80°C
  • Dimension: 3.2cm x 2.4cm x 1.8cm (Approx)
  • Sensitive Setting: Turn to Right, Distance Increases (About 7M); Turn to Left, Distance Reduce (About 3M)
  • Time Setting: Turn to Right, Time Increases (About 200S); Turn to Left, Time Reduce (About 5S).

Package contains:

1 x PIR Motion Sensor Detector Module HC-SR501
