Name: Piezoelectric shock tap sensor Vibration switch module - Rytronics.in
Brand: Sensor and Modules
SKU: RY1122
Price: 149.00 INR
Availability: InStock

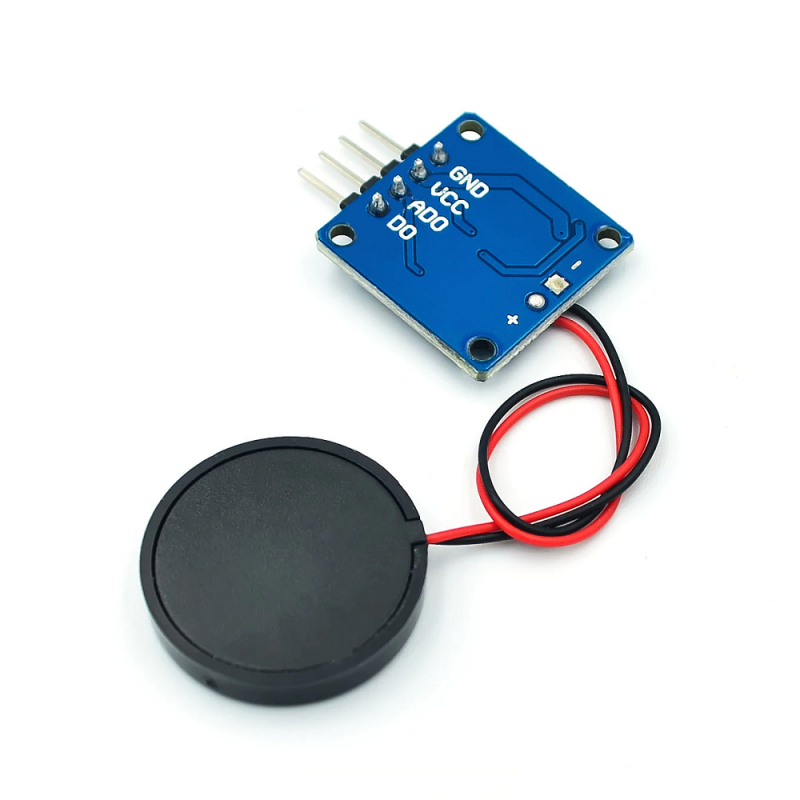

Piezoelectric shock tap sensor Vibration switch module

₹149.00 (inc. GST)

In stock

.Working voltage: 5.0V (DC)
2.Interface type: AD / DO
3.DO: TTL level output
4.Working temperature: -10 ° C ~ + 70 ° C
5.Size: 20MM* 20MM
6.Weight: 25g
7.G (GND): power ground
8.V (VCC): Working pressure 5V (DC)

SKU: RY1122 Categories: Sensor and Modules, Miscellaneous Module, Modules, Other Sensors, Sensors

Description

Description:

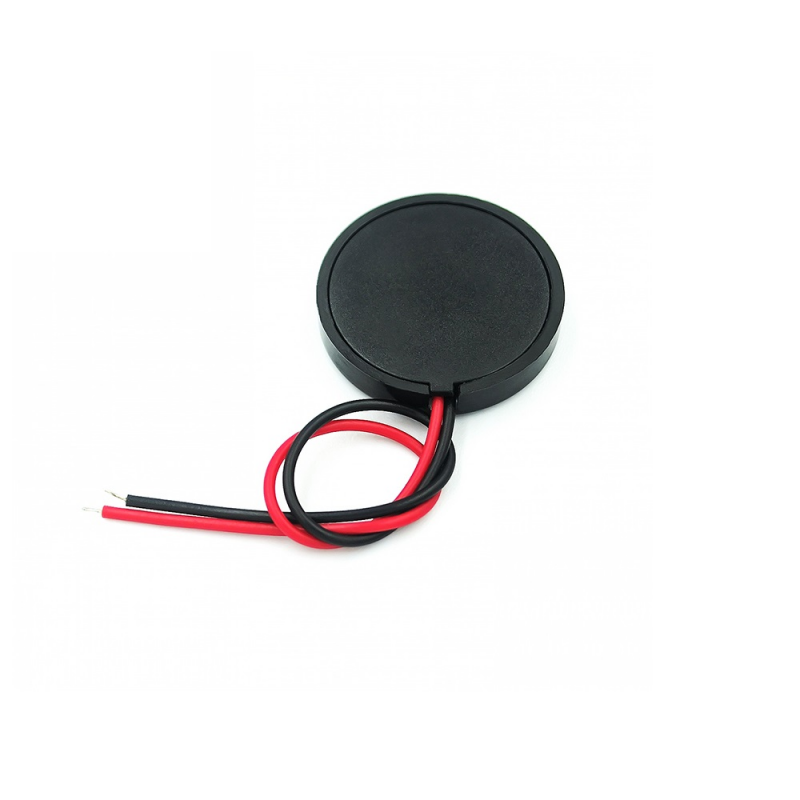

Piezoelectric shock tap sensor Vibration switch module

1.The analog vibration sensor based on the voltage ceramic plate is an inverse transformation process.
2.It uses piezoelectric ceramics to generate vibration. When the piezoelectric ceramic plate vibrates, it generates electrical signals.
3.A special sensor expansion board is used in combination, and the analog port can be weakly sensed. Electric vibration signals can be used for interactive work related to vibration, such as electronic drum interactive works.
4.The analog voltage ceramic vibration sensor is connected to the controller analog port A0 according to the program.
5.When the degree of vibration is different, the output value of the serial port can be observed, and the interactive work related to vibration can be achieved.
6.High, the vibration amplitude sensitivity can be adjusted by the potentiometer, (the left turn sensitivity is low, the right turn sensitivity is high)
7.This product has high sensitivity adjustment, which can be adjusted to respond by blowing with your mouth or tapping with your hand to have output.
8.The TTL output effective signal is high level, and the output control current can reach 1A, which can be connected to high-power LED lights.

Specification:
1.Working voltage: 5.0V (DC)
2.Interface type: AD / DO
3.DO: TTL level output
4.Working temperature: -10 ° C ~ + 70 ° C
5.Size: 20MM* 20MM
6.Weight: 25g
7.G (GND): power ground
8.V (VCC): Working pressure 5V (DC)

Package Including:
1 x Vibration Switch Module
