Name: OV7670 640×480 VGA CMOS Camera Image Sensor Module - Rytronics.in
Brand: Miscellaneous Module
SKU: RY-OV7607
Price: 189.00 INR
Availability: InStock

Sale!

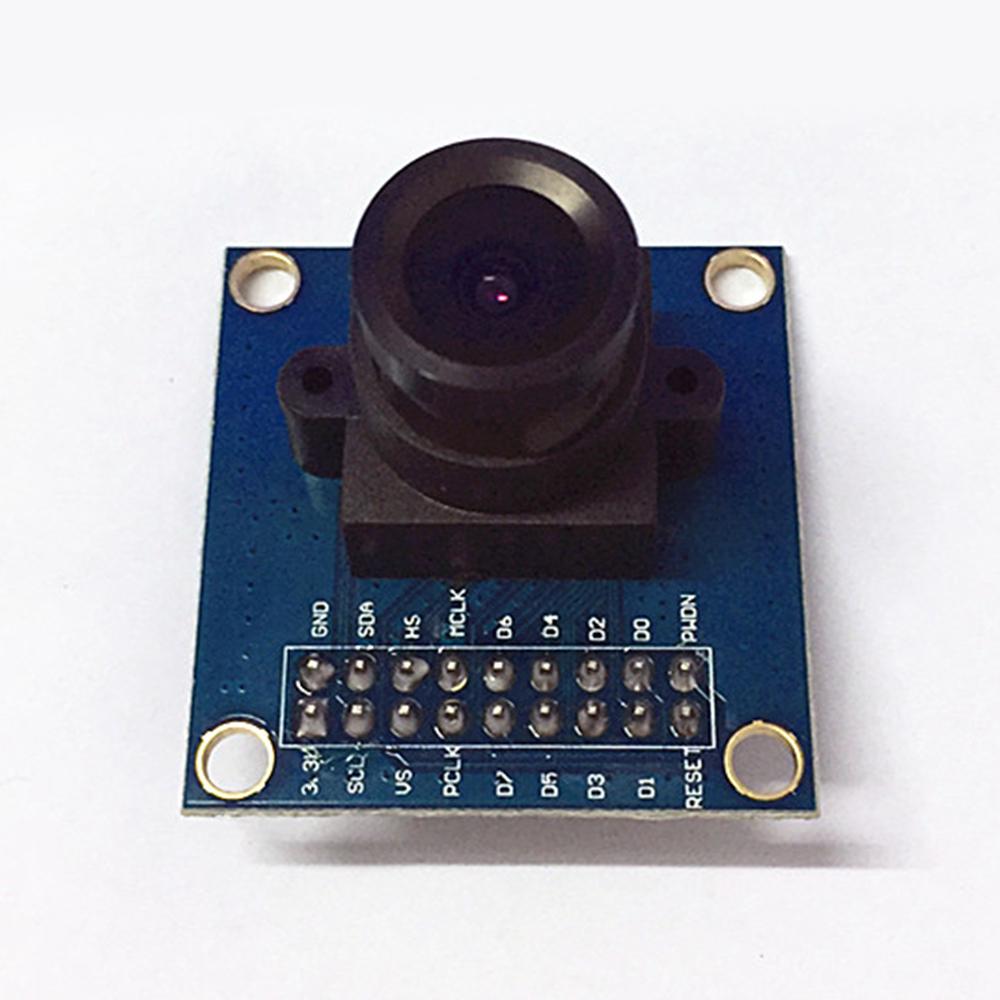

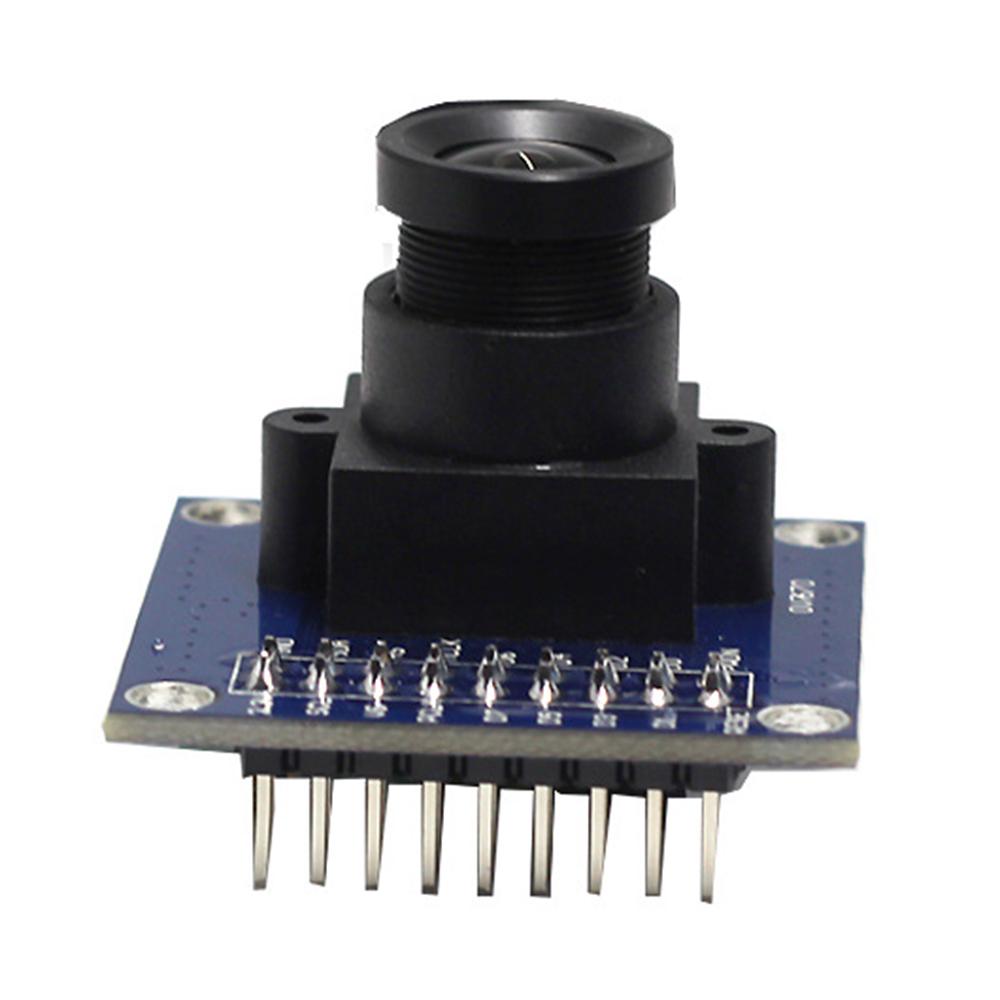

OV7670 640×480 VGA CMOS Camera Image Sensor Module

Original price was: ₹245.00.Current price is: ₹189.00. (inc. GST)

In stock

Operating Power: 60mW/15fpsVGAYUV.
Sleeping Mode: <20 uA.
Lens Size: 1/6″.
Max. Frame Rate: 30fps VGA.
Sensitivity: 1.3V / (Lux-sec).
dynamic range: 52 dB.
Electronic Exposure: 1 to 510 row.
Also knows a Multirotors, OV7670 640X480 VGA CMOS CAMERA IMAGE SENSOR MODULE

SKU: RY-OV7607 Categories: Miscellaneous Module, Modules, Sensor and Modules

Description

OV7670 640X480 VGA CMOS CAMERA IMAGE SENSOR MODULE is a low-cost image sensor, DSP that can operate at a maximum of 30 fps and 640 x 480 (“VGA”) resolutions, equivalent to 0.3 Megapixels.

Focal length of lens is 3.6 mm 650 nm Bands Black FR-4 PCB, Quality Heavy Gold Plate, effectively prevent the PCB from light leak issues and prevents shadow in images 2×10 0.1″ output connector for convenient insertion into Prototype Board, Bread Board, MCU Onboard Connectors This Camera module is very powerful and easy-to-interface with 8/16/32 bit Micro-controller. OV7670 640X480 VGA CMOS CAMERA IMAGE SENSOR MODULE will provide vision to your small embedded systems and will be useful for plenty of applications in Robotics.

The captured image can be pre-processed by the DSP before sending it out. This pre-processing can be configured via the Serial Camera Control Bus (SCCB). OmniVision OV7670 CMOS VGA (640×480) CAMERA-CHIP Sensor with OmniPixel technology 3.3V DC Input Voltage. working Temp. 0-50 Degree Celsius All Glass Lenses, Lens(including seat) is Magnesium Alloy material.

Specifications and Features:

MODEL: OV7670 640X480 VGA CMOS CAMERA
Pixel Coverage: 3.6um x 3.6um;
Duck Current: 12 mV/s at 6’C
Support VGA, CIF and from CIF to 40 x 30 format;
Flicker 50/60Hz auto-detection;
Color saturation level auto adjust;
Edge enhancement level auto adjust;
De-noise level auto adjust
High sensitivity for low light applications
Low voltage suitable for embedded applications
Standard sccb interface, compatible with i2c interface
Vario Pixel method for sub-sampling; Auto Image Control: AEC, AGC, AWB, ABF, ABLC;
Image Quality Control: Color saturation, hue, gamma, sharpness, and anti-blooming;
ISP includes noise reduction and defect correction; Support image scaling; Lens shading correction;
Flicker 50/60Hz auto-detection;
Color saturation level auto adjust;
Edge enhancement level auto adjust;
De-noise level auto adjust
High sensitivity for low light applications
Low voltage suitable for embedded applications
Standard sccb interface, compatible with i2c interface

Package Includes:

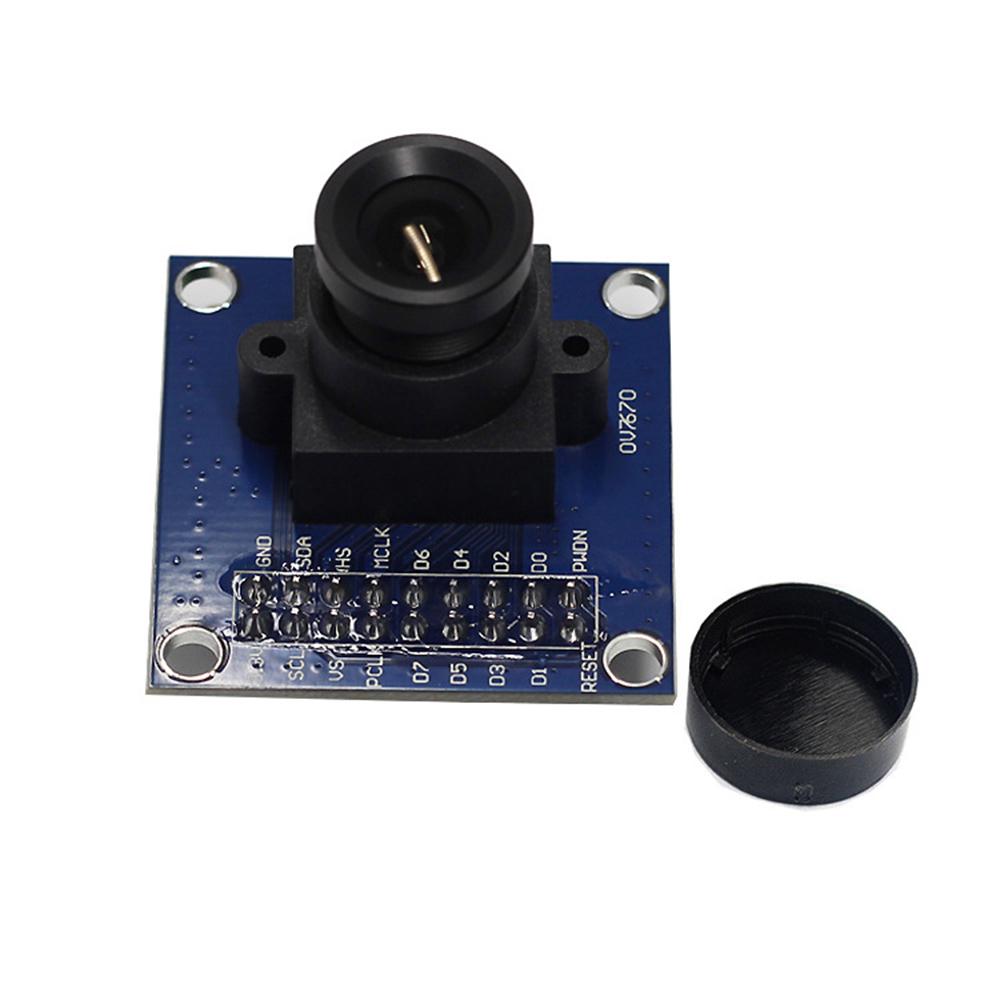

1 x OV7670 640×480 VGA CMOS Camera Image Sensor Module.

1 x Lens Cover.
