Name: MQ-2 Smoke LPG Butane Hydrogen Gas Sensor Detector Module - Rytronics.in
Brand: Sensor and Modules
SKU: RY-MQ2SENSOR
Price: 95.00 INR
Availability: InStock
Rating: 3.00 (2 reviews)

Sale!

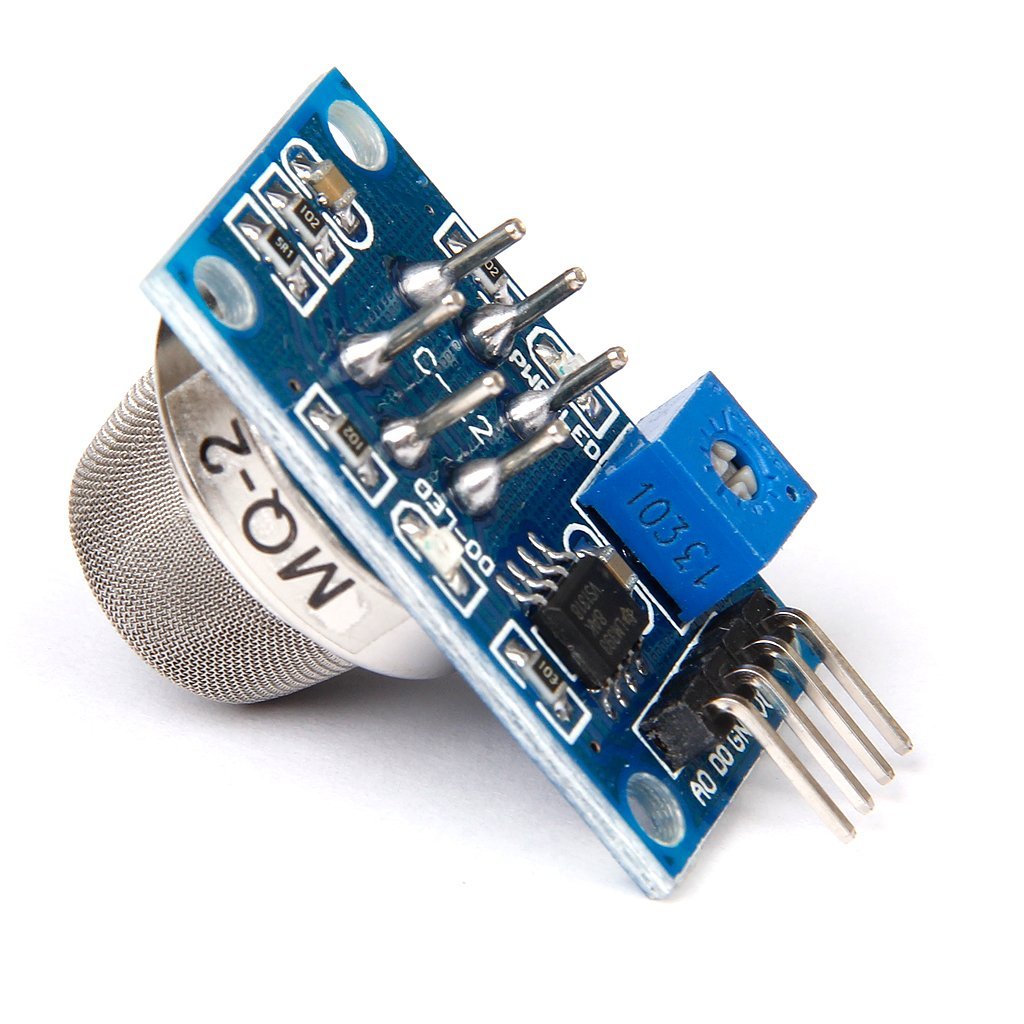

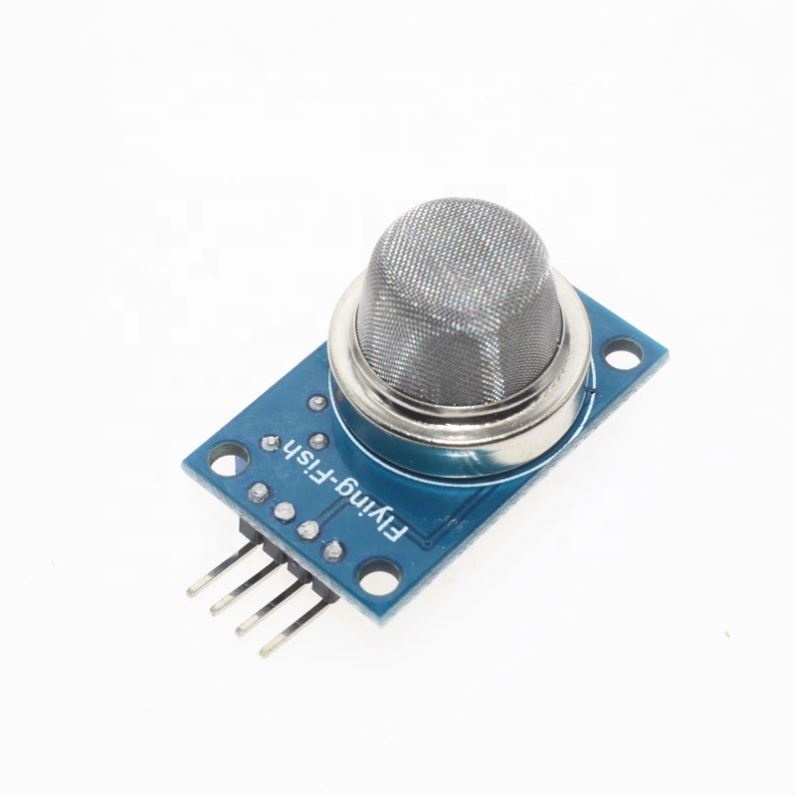

MQ-2 Smoke LPG Butane Hydrogen Gas Sensor Detector Module

Rated 3.00 out of 5 based on 2 customer ratings

(2 customer reviews)

Original price was: ₹119.00.Current price is: ₹95.00. (inc. GST)

In stock

Operating Voltage:+5V
Preheat Duration:20 s
Analog Output Voltage:0 to 5 V
Dimension:36x20x21 mm
Wide detecting scope
Fast response and high sensitivity

SKU: RY-MQ2SENSOR Categories: Sensor and Modules, Sensors, Temp, Humidity & Gas Sensor

Description

MQ-2 Smoke LPG Butane Hydrogen Gas Sensor Detector Module is a Metal Oxide Semiconductor (MOS) type Gas Sensor mainly used to detect gases like Methane, Butane, LPG, Smoke, etc. It is also known as Chemiresistors as the gas detection is based on the change of resistance of the sensing material when the Gas comes in to contact. If you want to measure a different type of Gas you can check these Gas Sensors.

MQ-2 Smoke LPG Butane Hydrogen Gas Sensor Detector Module works on 5V DC and uses around 800mW. It can detect LPG, Smoke, Alcohol, Propane, Hydrogen, Methane and Carbon Monoxide concentrations in a range of 200 to 10000 ppm.

MQ-2 gas sensor using gas sensitive material is to be clean air in the lower conductivity of stannic Oxide or tin oxide (SnO2). When the sensor when flammable gases are present in the environment in which the conductivity of the sensor with an increasing concentration of combustible gas in the air increases.

Use a simple circuit to convert the changes in conductivity and output signal that corresponds to the concentration of the gas.

Features & Specifications-

Operating Voltage is +5V
Analog output voltage: 0V to 5V
Digital Output Voltage: 0V or 5V (TTL Logic)
Preheat duration 20 seconds
Can be used as a Digital or analog sensor
The Sensitivity of Digital pin can be varied using the potentiometer

Product Description

To use the MQ2 gas sensor module, you need to power the device with 5V supply and the Power LED will start to glow. You should give it some preheating time before start reading the output. While measuring the gas present, the Output LED will glow in a specific concentration of the gas. You can change it by using the potentiometer. Else you can also use the Analog Output to see how your program reacts to different concentration of gases present.

Package Includes :

1 x MQ-2 Smoke LPG Butane Hydrogen Gas Sensor Detector Module
