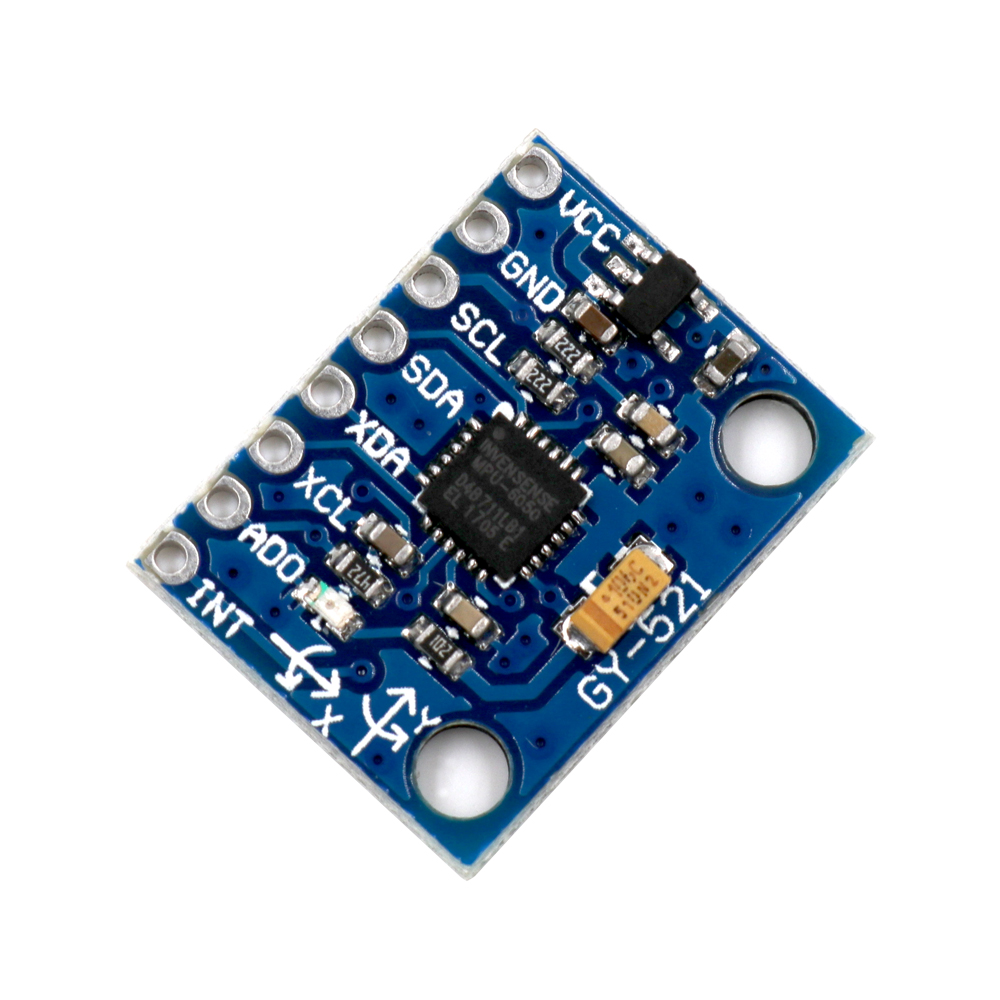

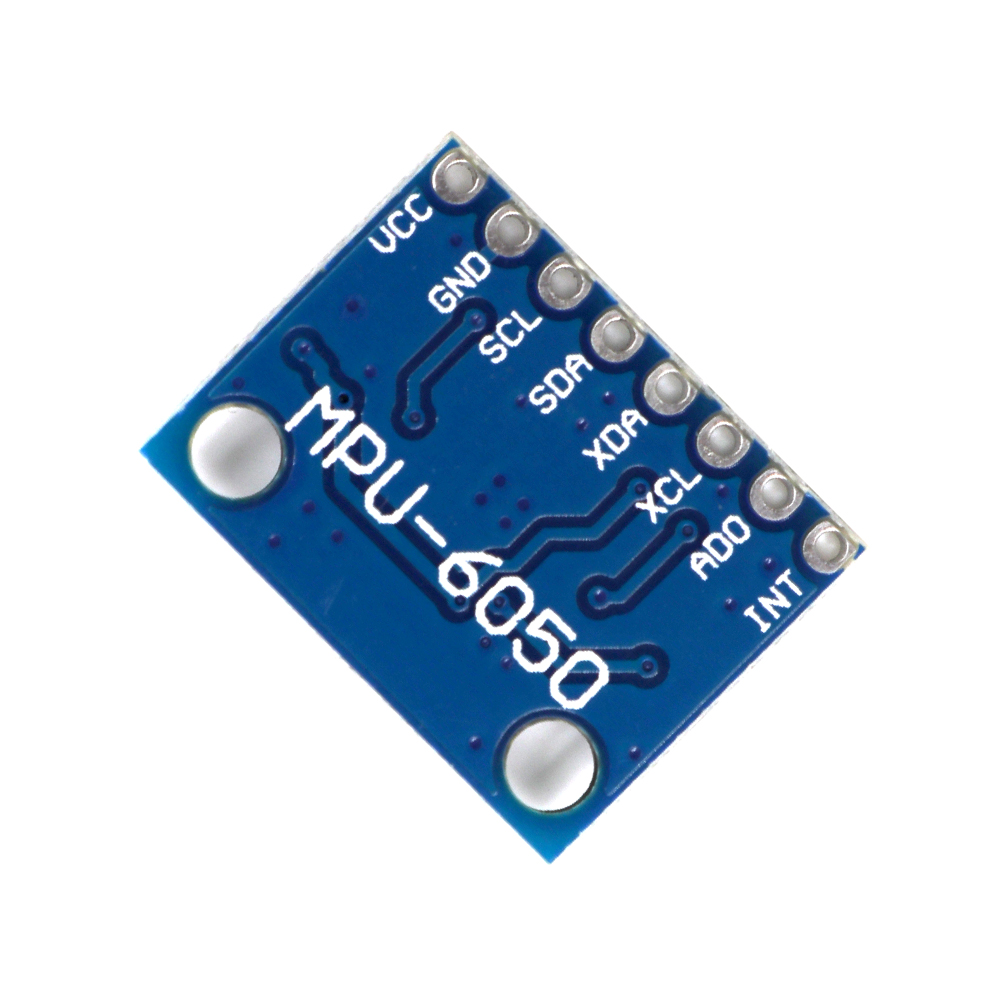

MPU-6050 3-Axis Accelerometer and Gyro Sensor

(1 customer review)

Original price was: ₹149.00.Current price is: ₹119.00. (inc. GST)

In stock

  • Cash on Delivery(COD) available on orders above 499/-
  • Free shipping on prepaid orders above 499/- use FREESHIP Coupon code!
  • 10 Days Return Policy!
  • Dispatch in 24 Hours from Warehouse!
Add to Wishlist
Add to Wishlist
  1. Chip built-in 16bit AD converter, 16-bit data output
  2. Driver Chip: MPU6050
  3. Operating Voltage: 3-5V DC
  4. Communication: I2C/IIC Protocol
  5. Gyro Range: ± 250, 500, 1000, 2000 °/s
  6. Accelerometer Range: ± 2 ± 4 ± 8 ± 16 g

Robotic Sensors, accelerator, Gyro, IMU, Inertial Measurement Unit, Robot Stabilizer, 6 DOF

Description

The MPU6050 IMU has both 3-Axis accelerometer and 3-Axis gyroscope integrated on a single chip.

The gyroscope measures rotational velocity or rate of change of the angular position over time, along the X, Y and Z axis. It uses MEMS technology and the Coriolis Effect for measuring

The outputs of the gyroscope are in degrees per second, so in order to get the angular position we just need to integrate the angular velocity.

On the other hand, the MPU6050 accelerometer measures acceleration in the same way as explained in the previous video for the ADXL345 accelerometer sensor. Briefly, it can measure gravitational acceleration along the 3 axes and using some trigonometry math we can calculate the angle at which the sensor is positioned. So, if we fuse, or combine the accelerometer and gyroscope data we can get very accurate information about the sensor orientation.

he MPU6050 IMU is also called six-axis motion tracking device or 6 DoF (six Degrees of Freedom) device, because of its 6 outputs, or the 3 accelerometer outputs and the 3 gyroscope outputs.

Features :

  1. Chip built-in 16bit AD converter, 16-bit data output.
  2. I2C Digital-output of 6 or 9-axis MotionFusion data in rotation matrix, quaternion, Euler Angle, or raw data format.
  3. Selectable Solder Jumpers on CLK, FSYNC, and AD0.
  4. Digital Motion Processing™ (DMP™) engine offloads complex MotionFusion, sensor timing synchronization, and gesture detection.
  5. Embedded algorithms for run-time bias and compass calibration. No user intervention is required.
  6. Digital-output temperature sensor.

Package Includes:

1 x MPU-6050 Gyro Sensor 2 + Accelerometer.

1 x 1*8 Burg connector Pins(Right angle).

1x 1*8 Burg connector Pins(Straight).
