Sale!

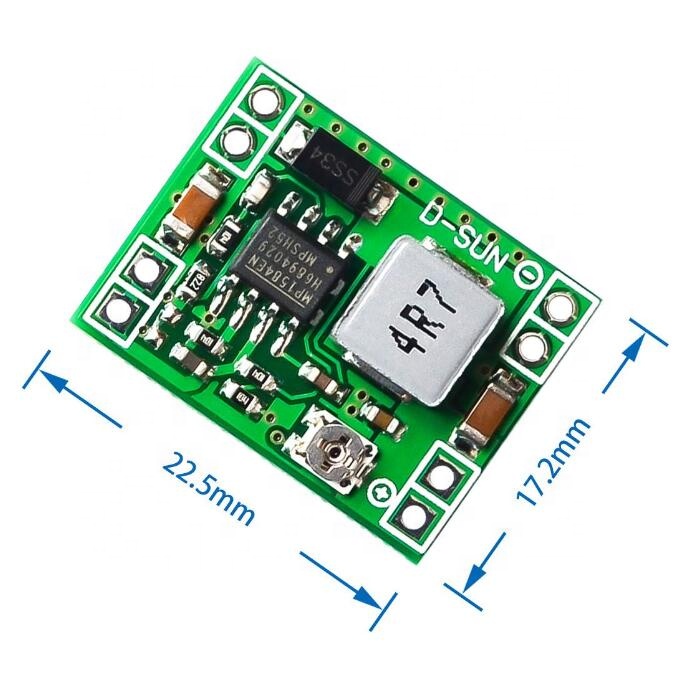

Mini MP1584 DC-DC 3A Adjustable Buck module

(3 customer reviews)

Original price was: ₹63.00.Current price is: ₹59.00. (inc. GST)

In stock

  • Cash on Delivery(COD) available on orders above 499/-
  • Free shipping on prepaid orders above 499/- use FREESHIP Coupon code!
  • 10 Days Return Policy!
  • Dispatch in 24 Hours from Warehouse!
Add to Wishlist
Add to Wishlist
  1. Input Voltage: 4.5V – 28V
  2. Output Voltage: 0.8V – 20V
  3. Output Voltage Adjustment: On-board potentiometer
  4. Output Current:  1.8A (typical), 3.0A (max).
  5. Ceramic Capacitor Stable
  6. Internal Soft-Start
  7. Internally Set Current Limit without a Current Sensing Resistor

Description

The Mini MP1584 DC-DC 3A Adjustable Buck module is ultra small adjustable 0.8V to 20V output DC to DC step-down Buck converter uses an MP1584EN high frequency switching regulator and integrated high voltage power MOSFET.

It features soft start, thermal shutdown, and under-voltage lockout (UVLO) to protect the module from operating at the insufficient supply voltage.

Small size, light weight, low internal power consumption, and wide input voltage range of 4.5V to 28V makes this module suitable for a variety of different applications where small size and lightweight voltage conversion is needed, including RC cars and airplanes, quadcopters, robotics, Arduino modules, and DIY devices.

Applications:
  1. DIY 8051 / AVR / ARM / PIC / Arduino / Raspberry-Pi projects
  2. Robotics
  3. Breadboard power supply
  4. Manual speed adjustment of small DC motors
  5. Power Supply for RC project planes, cars, helicopters
  6. Universal Battery Elimination Circuit (UBEC) for 2S-6S lipo battery pack
  7. Receiver/servo power supply
  8. Communications equipment power supply
  9. Mobile equipment power supplies

Features :

  1. Wide 4.5V to 28V Operating Input Range
  2. High-Efficiency Pulse Skipping Mode for Light Load
  3. Ceramic Capacitor Stable
  4. Internal Soft-Start
  5. Internally Set Current Limit without a Current Sensing Resistor

Package Includes :

1 x Mini MP1584 DC-DC 3A Adjustable Buck module

3 reviews for Mini MP1584 DC-DC 3A Adjustable Buck module

  1. VINOTH KUMAR V (verified owner)

    Cant able to adjust the screw tried with every possible way ended up with damaging the adjustable screw,at least give some tool to adjust that screw

  2. mudit satija (verified owner)

  3. Gaurav Chaudhary (verified owner)
