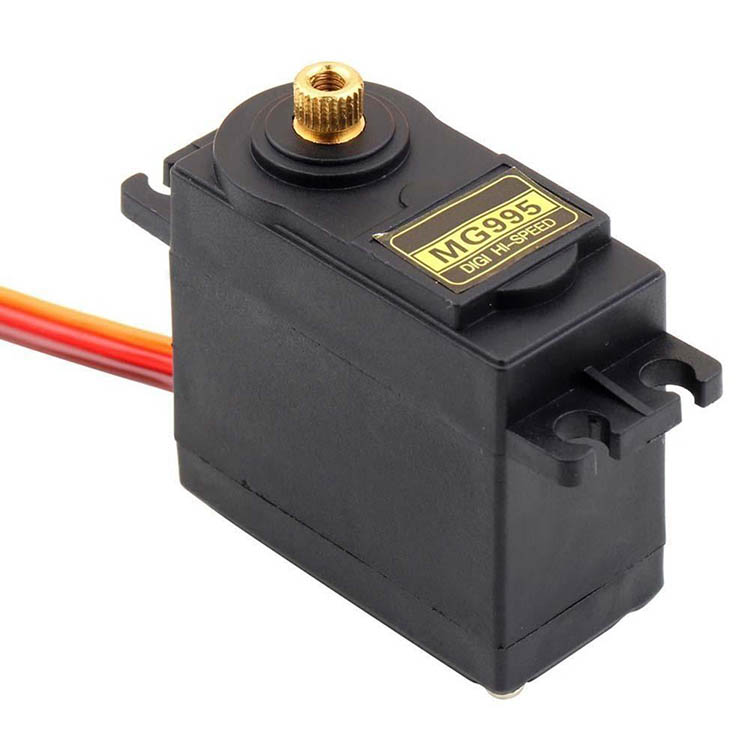

MG995 Metal Gear Servo Motor (180° Rotation)

₹289.00 (inc. GST)

Out of stock

Model: MG995
Weight: 55 gm
Operating voltage: 4.8V~ 7.2V
Servo Plug: JR
Stall torque @4.8V : 10 kg-cm
Stall torque @6.6V : 12 kg-cm

SKU: RY-MG995M Category: Motors and Drivers

Add to Wishlist

Description

MG995 Metal Gear Servo Motor is a high-speed standard servo can rotate approximately 180 degrees (60 in each direction) used for airplane, helicopter, RC-cars and many RC model. Provides 10kg/cm at 4.8V, and 12kgcm at 6V.

It is a Digital Servo Motor which receives and processes PWM signal faster and better. It equips sophisticated internal circuitry that provides good torque, holding power, and faster updates in response to external forces.

They are packed within a tight sturdy plastic case which makes them water and dust resistant which is a very useful feature in RC planes, Boats, and RC Monster Trucks etc. It equips 3-wire JR servo plug which is compatible with Futaba connectors too.

Wire Description:

RED – Positive
Brown – Negative
Orange – Signal

Features:

The connection cable is thicker.
Equips high-quality motor.
High resolution
Accurate positioning
Fast control response
Constant torque throughout the servo travel range
Excellent holding power

Specification :

Weight : 55g
Dimension : 40.7 × 19.7 × 42.9 mm
Operating Speed (4.8V no load): 20sec / 60 deg
Operating Speed (6.0V no load): 16sec / 60 deg ( no load)
Stall Torque (4.8V): 10kg/cm
Stall Torque (6.0V): 12kg/cm
Operation Voltage : 4.8 – 7.2Volts
Gear Type: All Metal Gears
Stable and shock proof double ball bearing design
Dead band width: 5 µs
Temperature range: 0 ºC – 55 ºC.
Control System: Analog
Operating Angle: 120degree
Required Pulse: 900us-2100us

Package Includes

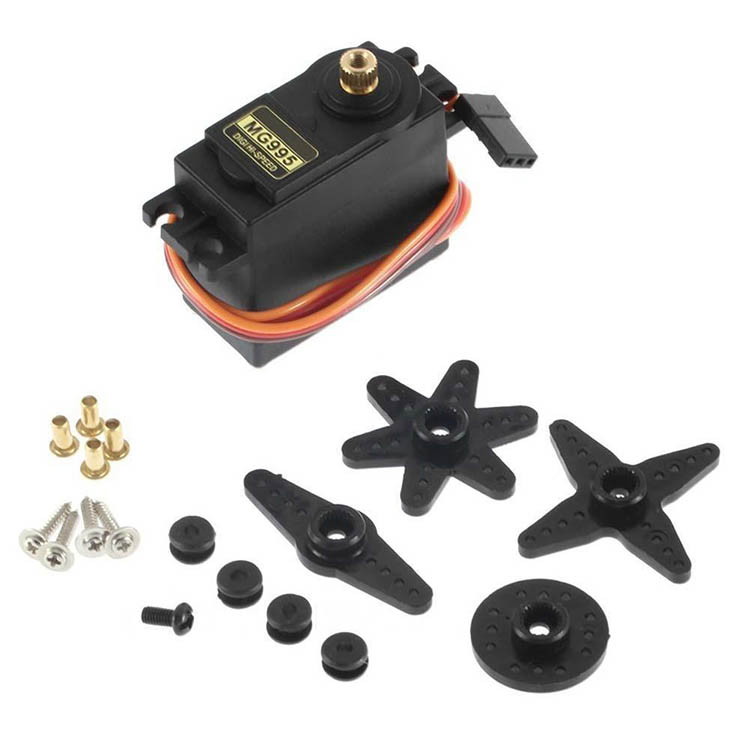

1 x MG995 Metal Gear Servo Motor (180° Rotation)
