MAX7219 8X8 Dot LED Matrix Display Module
₹89.00 (inc. GST)
In stock
- Input Voltage: 3.7 to 5.3 V
- Input Current: 320 mA
- Dimensions:3.2cm X 3.2cm X1.5cm
- 7-Segment Displays
- Industrial Controllers
- Electronic Panel Meters
- LED Matrix Displays
- Display symbols, simple graphics, and texts.
Description
The MAX7219 is compact, serial input/output common-cathode display drivers that interface microprocessors to 7-segment numeric LED displays of up to 8 digits or 64 individual LEDs. It includes an on-chip BCD code-B decoder, multiplex scan circuitry, segment and digits drivers, and an 8×8 static RAM that stores each digit. Only one external resistor is required to set the segment current for all LEDs.
Features:

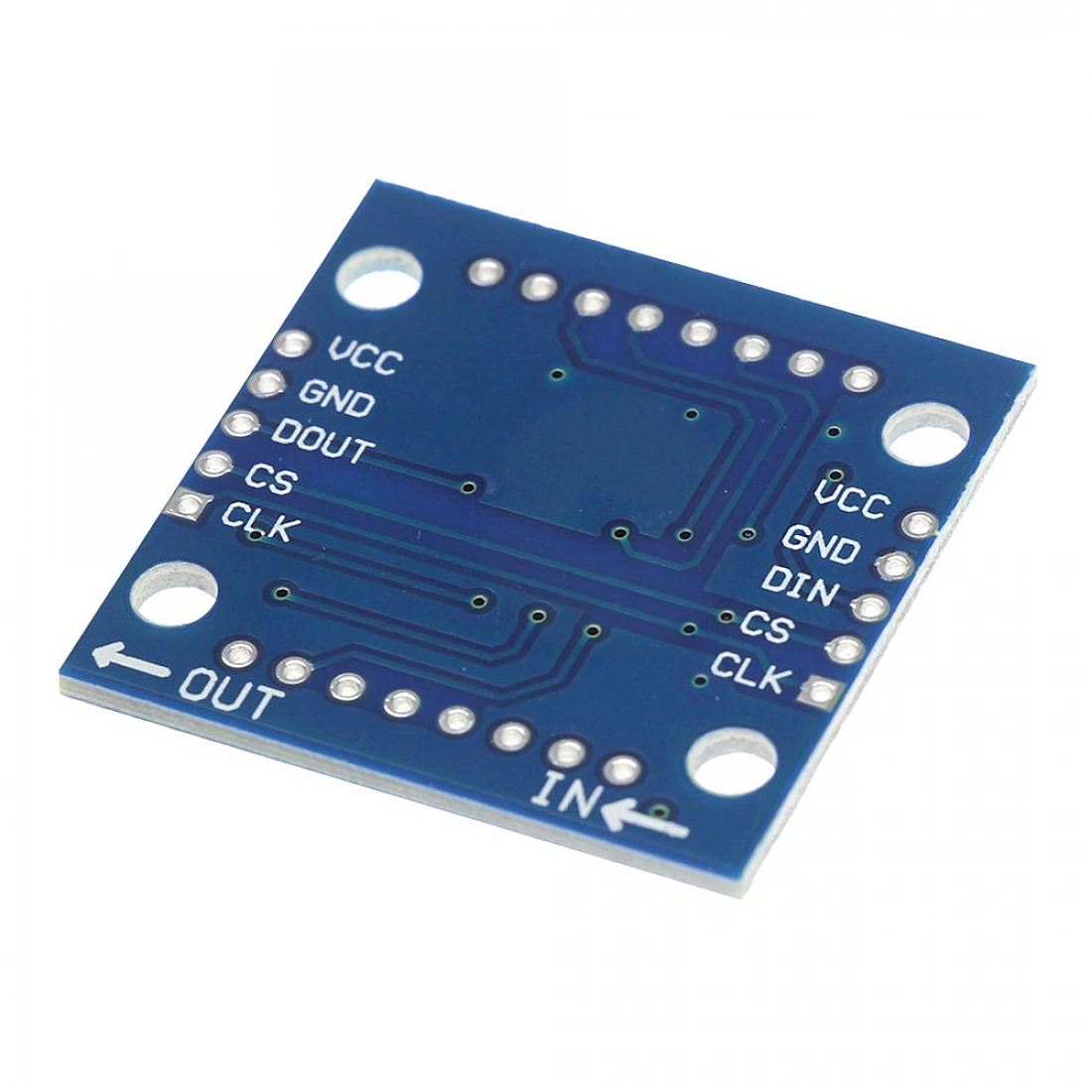

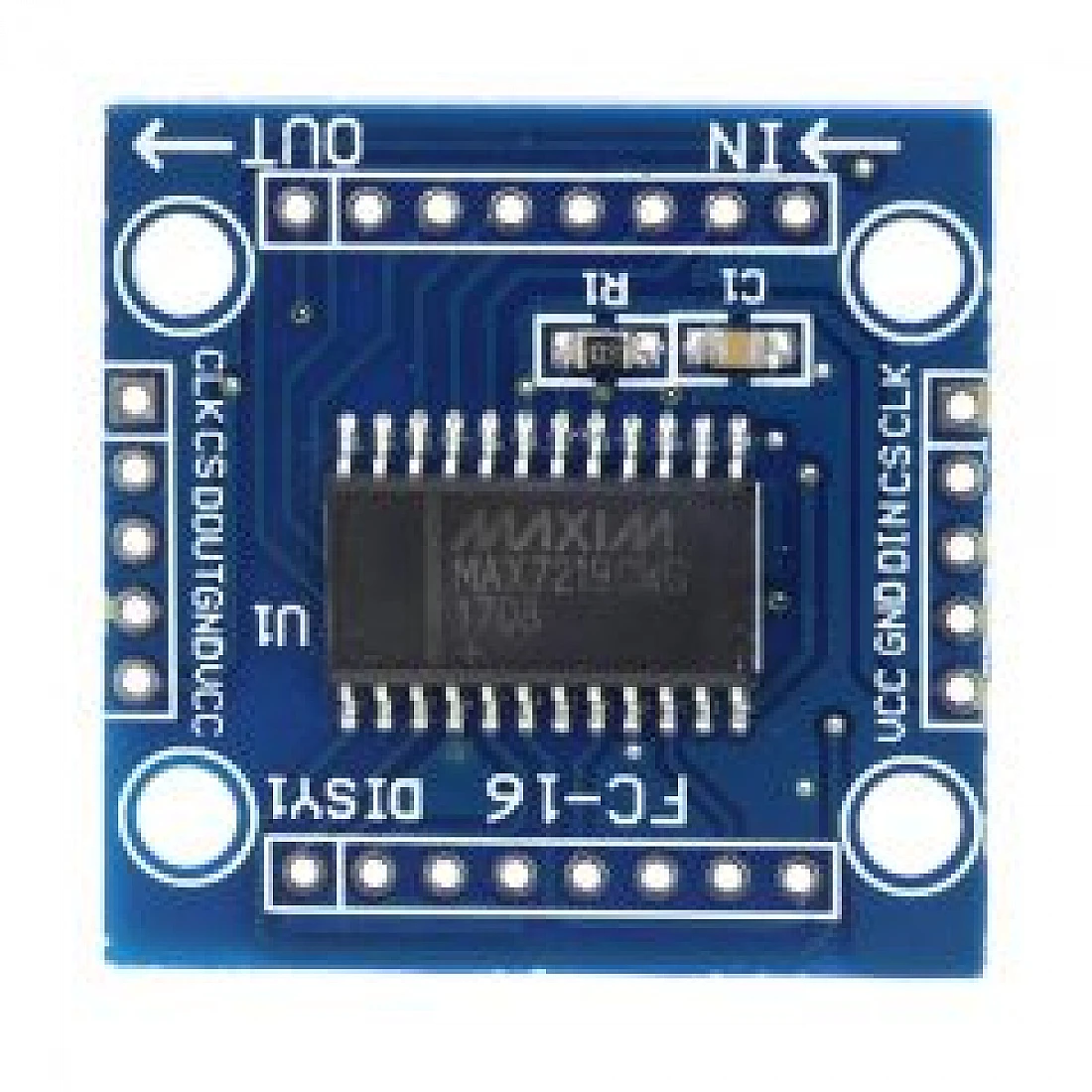

- MAX7219 Driver Board
- A single module can drive an 8*8 common cathode matrix
- Module with input and output interface, supporting multiple module cascade
- 4 fixing screw holes, 3mm aperture, can be fixed with M3 copper column
Specifications:
- Input Voltage: 3.7 to 5.3 V
- Input Current: 320 mA
- Dimensions:3.2cm X 3.2cm X1.5cm
Application:
- Bar-Graph Displays
- 7-Segment Displays
- Industrial Controllers
- Electronic Panel Meters
- LED Matrix Displays
- Display symbols, simple graphics, and texts.
Package Includes:

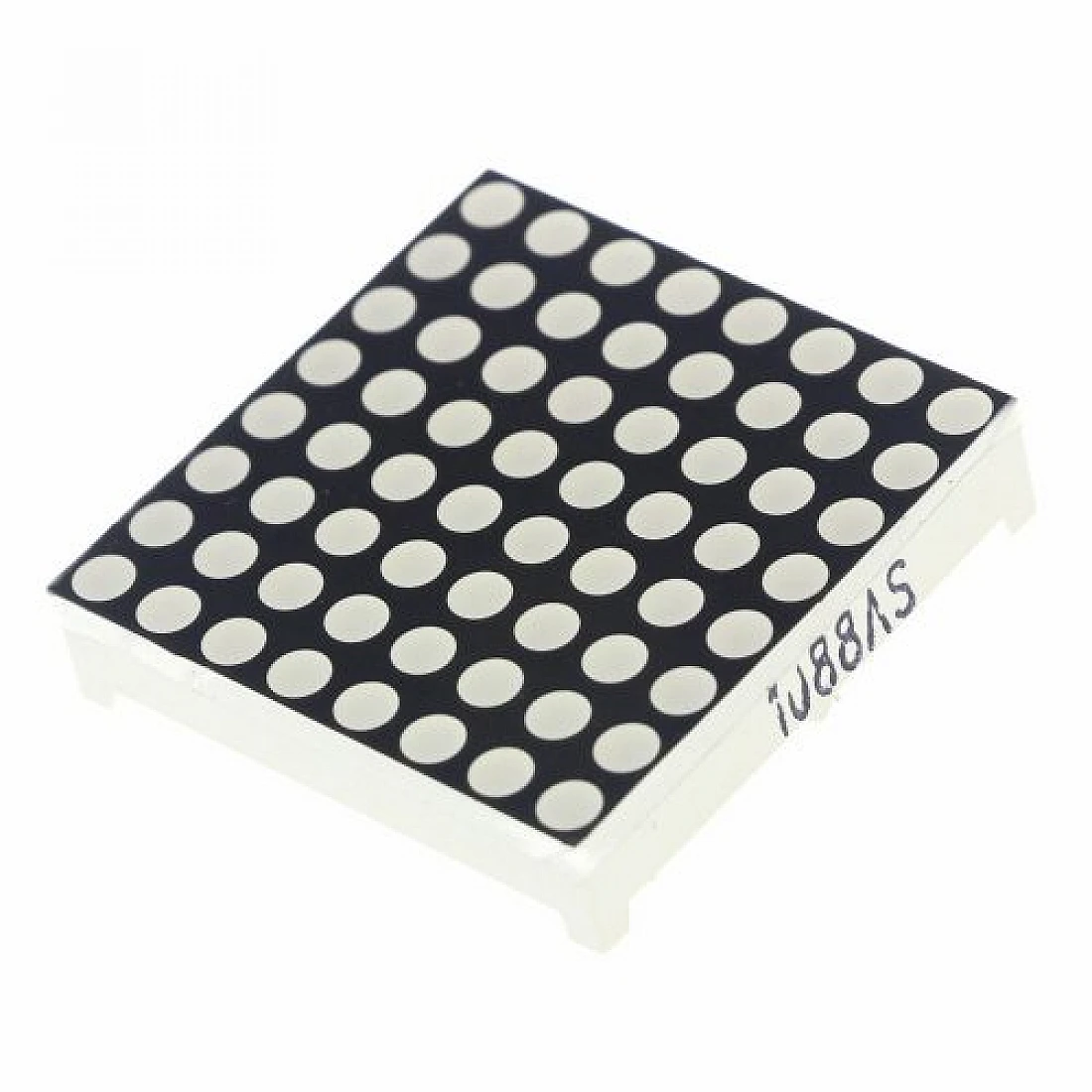

1 x MAX7219 8×8 dot LED Matrix Display Module.
