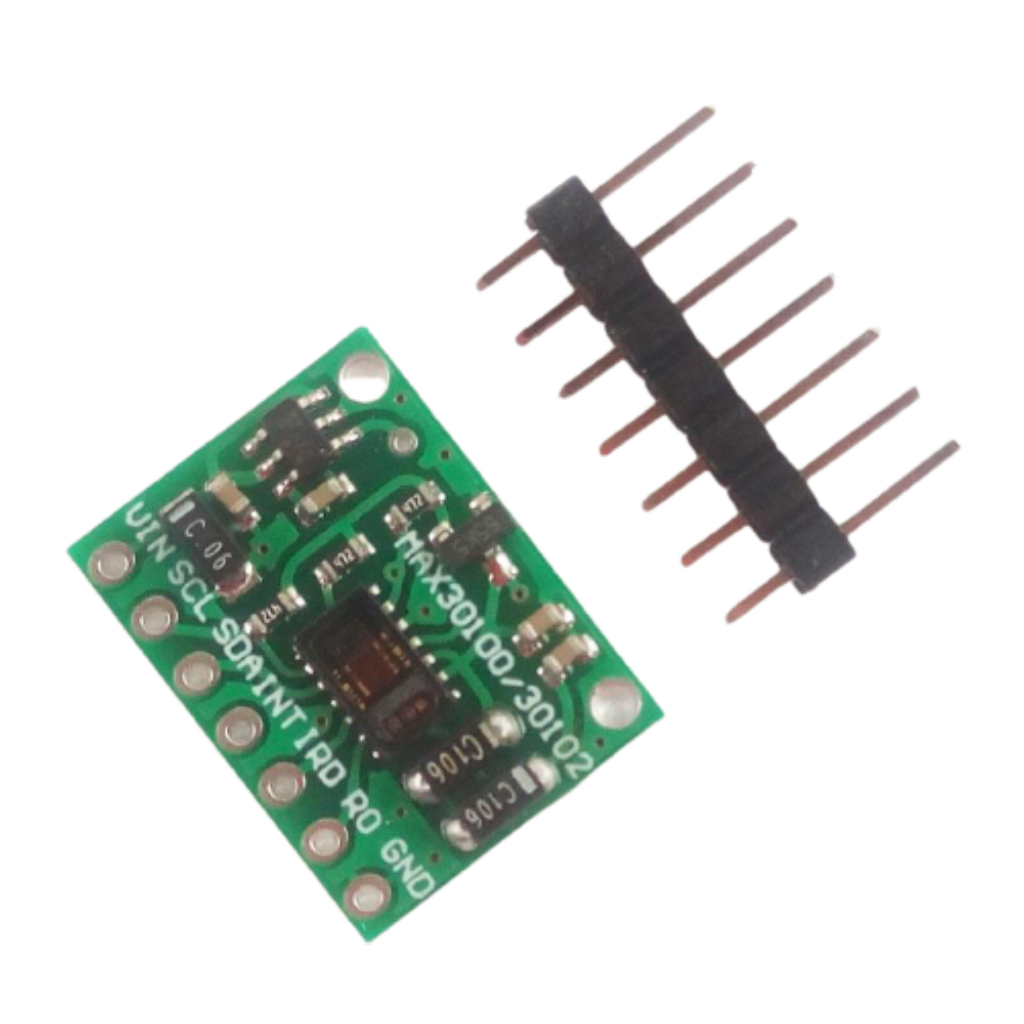

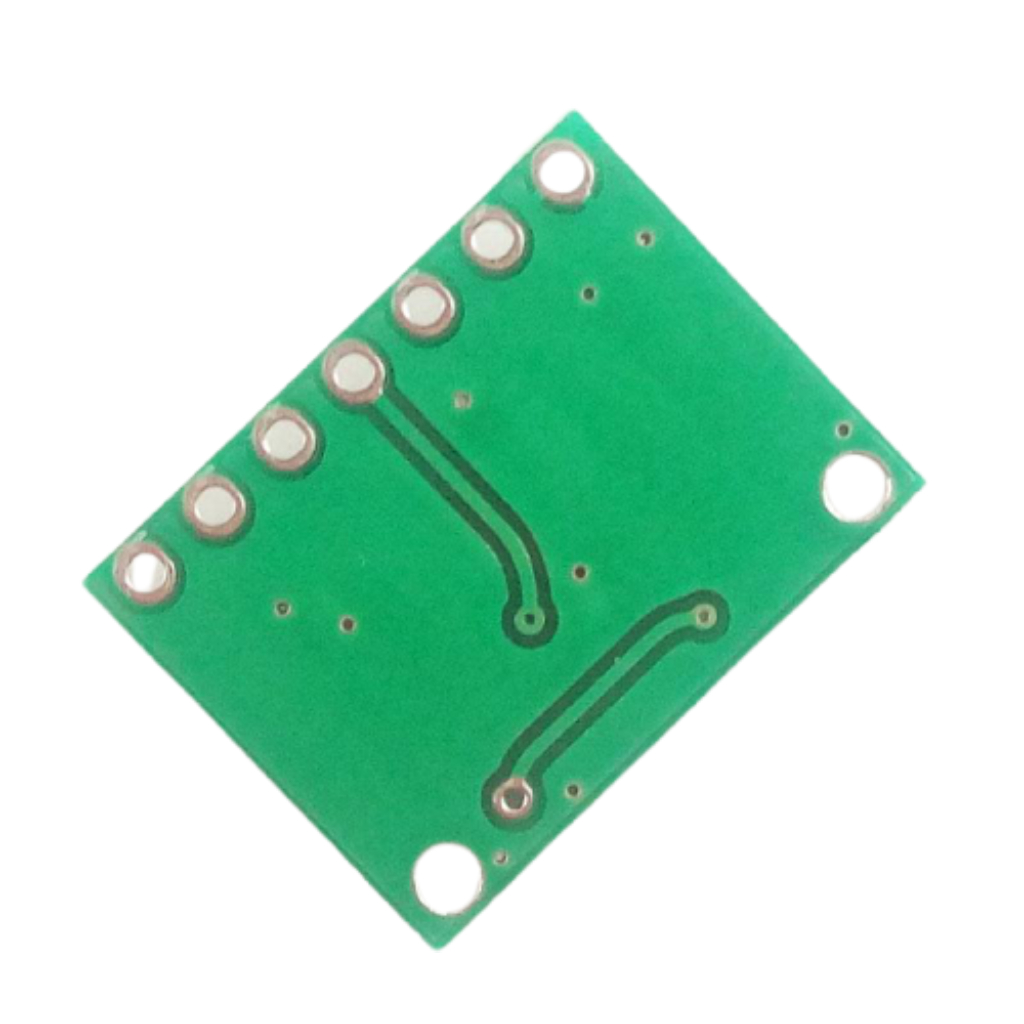

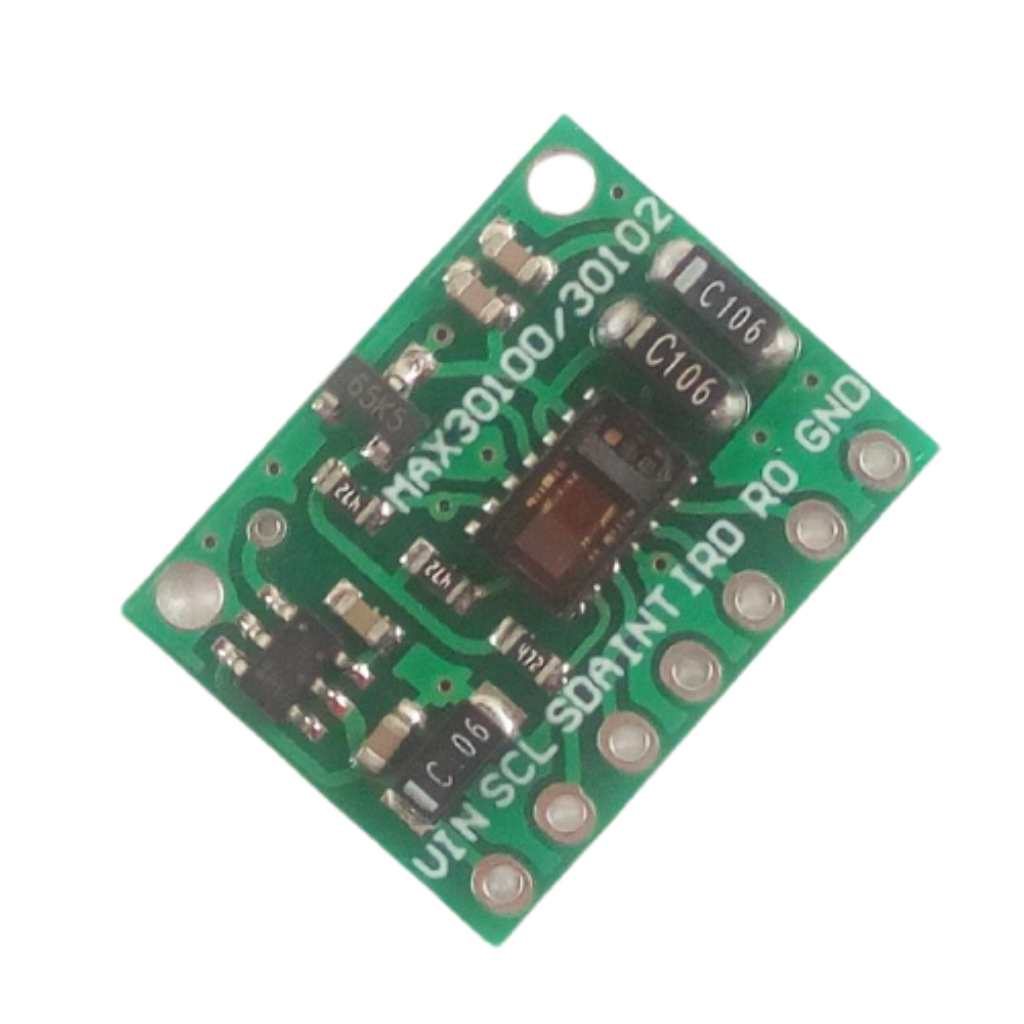

max30100/max30102 pulse oximeter heart rate sensor module good quality
₹189.00 (inc. GST)
In stock
This MAX30100/MAX30102 pulse sensor module for Arduino can be used to get the biometric data which can be used to monitor heart pulse rate, oxygen levels, remote patient monitoring or exercise routines. It has an integrated temperature sensor for calibrating the temperature dependence of pulse oximetry system.
It uses I2C communication to communicate with the microcontroller.
Description
The MAX30100/MAX30102 is an integrated pulse oximetry and heart-rate monitor module. It has internal LEDs, photodetectors, optical elements, and low-noise electronics with ambient light rejection.
The MAX30100/MAX30102 provides a complete system solution to ease the design-in process for mobile and wearable devices. The MAX30100/MAX30102 operates on a single 1.8V power supply and a separate 3.3V power supply for the internal LEDs.
Communication is through a standard I2C-compatible interface. The module can be shut down through software with zero standby current, allowing the power rails to remain powered at all times.
Applications:
- Wearable Devices
- Fitness Assistant Devices
- Smartphones
- Tablets
Features:
- Heart-Rate Monitor and Pulse Oximeter Sensor in LED Reflective
- Tiny 5.6mm x 3.3mm x 1.55mm 14-Pin Optical Module
- Robust Performance
- Ultra-Low Power Operation for Mobile Devices
- Programmable Sample Rate and LED Current for Power Savings
- Ultra-Low Shutdown Current (0.7μA)
- Fast Data Output Capability
- High Sample Rates
- Robust Motion Artifact Resilience
- MAX30100/MAX30102 High-Sensitivity Pulse Oximeter andHeart-Rate Sensor for Wearable Health.
Package Contents
1× MAX30100/max30102 Heart Rate Oxygen Pulse Sensor
