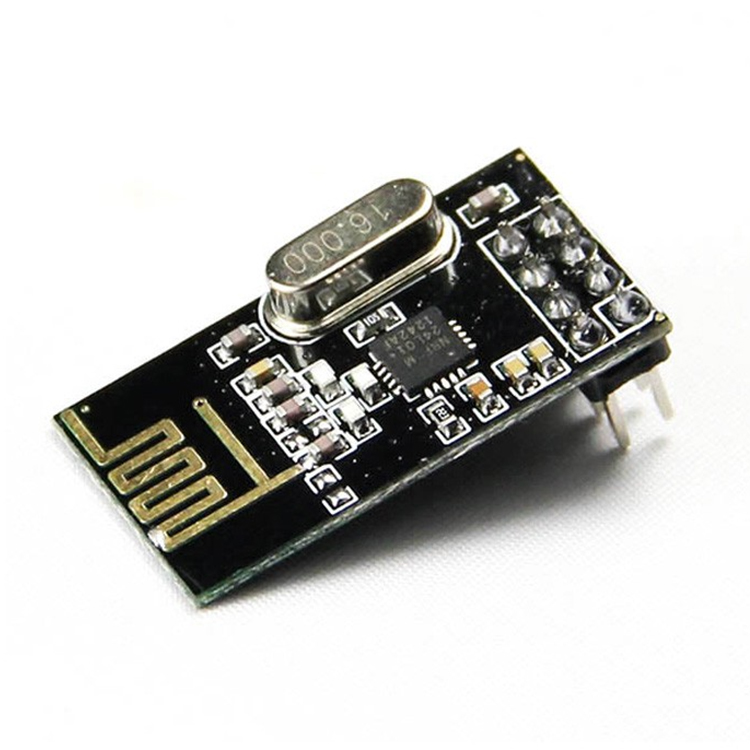

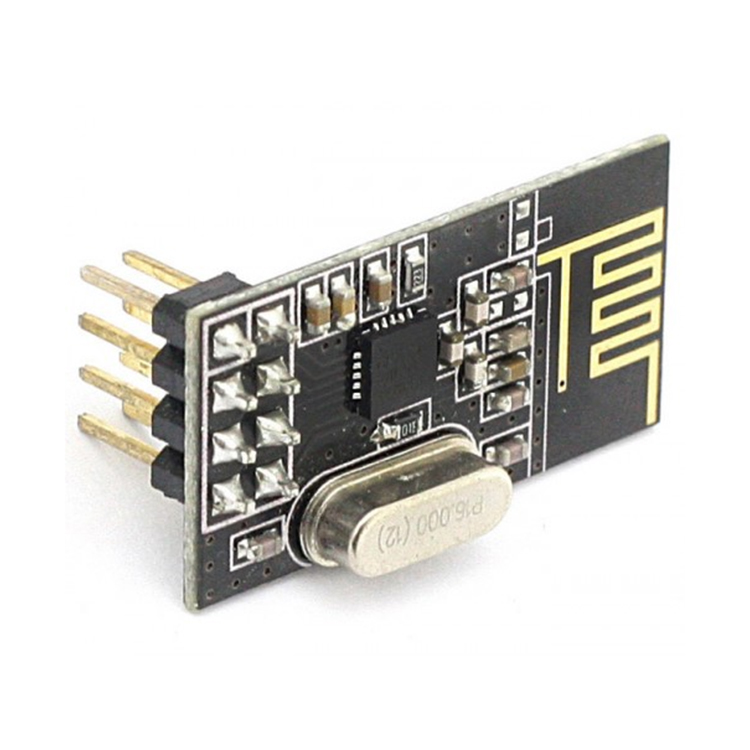

M177 NRF24L01 2.4GHz Antenna Wireless Transceiver Module

₹98.00 (inc. GST)

In stock

Maximum operating speed can be one of the 250kbps/1Mbps/2Mbps.,
wide used to make communicate two devices wirelessly eg: one arduino to another arduino
Built-in hardware CRC error detection, Multipoint communication address control.
Low-power 1.9 ~ 3.6V, only 1uA on Power down mode
Built-in 2.4Ghz antenna
Built-in voltage regulator
Standard DIP Pitch Interface for embedded applications.

SKU: RY-NRF24L01 Categories: Communication Module, Cable and Connectors, Sensor and Modules, Modules Tags: Nordic, Nordic Semiconductors, receiver, RF, SPI, Transceiver, Transmitter, Wifi, Wifi Board

Description

The M177 NRF24L01 2.4GHz Antenna Wireless Transceiver Module is designed to operate in 2.4 GHz worldwide ISM frequency band and uses for data transmission. The data transfer rate can be one of 250kbps/1Mbps/2Mbps.

The operating voltage of the module is from 1.9 to 3.6V, So as Arduino logic pins are 5-volt tolerant, so we can easily connected to Arduino or any 5V logic microcontroller without using any logic level converter.

Specifications:

Frequency Range	2.4 GHz ISM Band
Maximum Air Data Rate	2 Mb/s
Modulation Format	GFSK
Max. Output Power	0 dBm
Operating Supply Voltage	1.9 V to 3.6 V
Max. Operating Current	13.5mA
Min. Current(Standby Mode)	26µA
Logic Inputs	5V Tolerant
Communication Range	800+ m (line of sight)

Package Includes :

1 x M177 NRF24L01 2.4GHz Antenna Wireless Transceiver Module.
