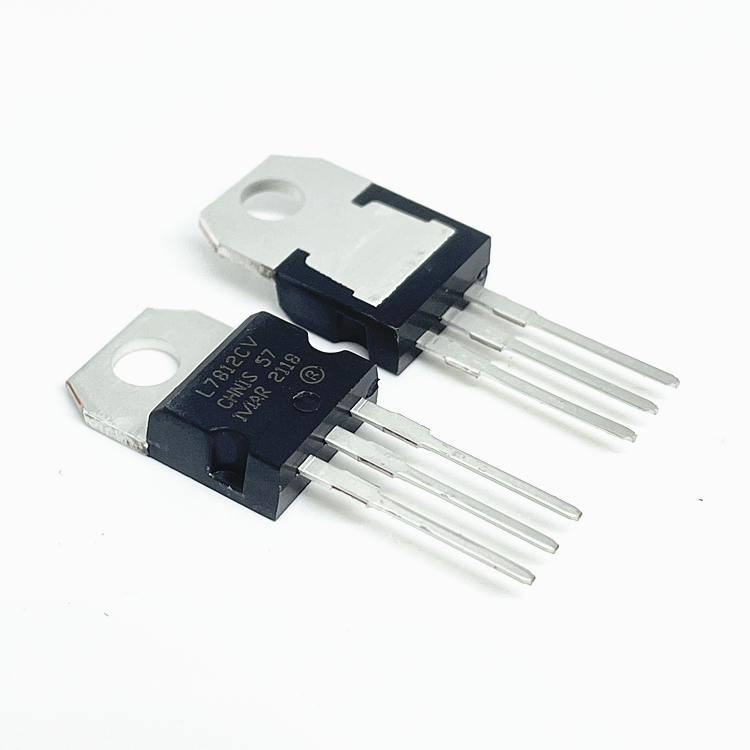

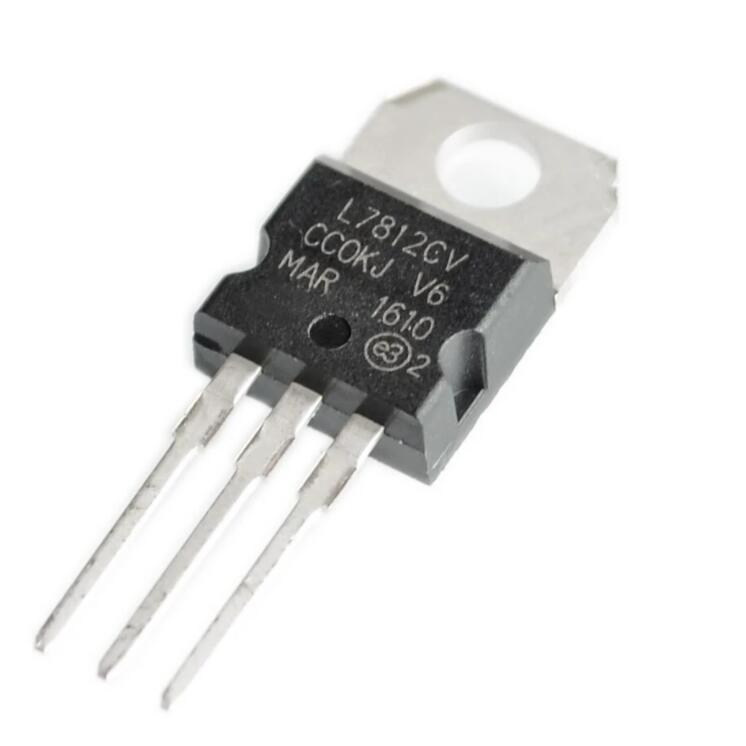

LM7812 7812 IC 12V Voltage Regulator IC
₹10.00 (inc. GST)
In stock
- LM7812 is a positive voltage regulator that outputs +12 volts
- The LM7812 is a three-pin IC
- Output Current up to 1.5A
- Thermal Overload Protection
- Short Circuit Protection
- Available in TO-220 package
- Thermal Resistance Junction-Cases (TO-220) : °C/W
- Thermal Resistance Junction-Air (TO-220): °C/W
- Operating Temperature Range: -40° – 125° C
Description
A LM7812 7812 IC 12V Voltage Regulator IC is a voltage regulator that outputs +12 volts.
An easy way to remember the voltage output by a LM78XX series of voltage regulators is the last two digits of the number. A LM7812 ends with “12”; thus, it outputs 12 volts. The “78” part is just the convention that the chip makers use to denote the series of regulators that output positive voltage. The other series of regulators, the LM79XX, is the series that outputs negative voltage. So:
LM78XX: Voltage regulators that output positive voltage, “XX”=voltage output.
Pin Details:-
The LM7812, like most other regulators, is a three-pin IC.
Pin 1 (Input Pin): The Input pin is the pin that accepts the incoming DC voltage, which the voltage regulator will eventually regulate down to 5 volts.
Pin 2 (Ground): Ground pin establishes the ground for the regulator.
Pin 3 (Output Pin): The Output pin is the regulated 12 volts DC.
Features:
- LM7812 is a positive voltage regulator that outputs +5 volts
- The LM7812 is a three-pin IC
- Output Current up to 1.5A
- Thermal Overload Protection
- Short Circuit Protection
- Available in TO-220 package
- Thermal Resistance Junction-Cases (TO-220) : °C/W
- Thermal Resistance Junction-Air (TO-220): °C/W
- Operating Temperature Range: -40° – 125° C
Package include:
1 x LM7812 7812 IC 12V Voltage Regulator IC
