LilyPad 328 ATmega328P Main Board 16M Compatible with Arduino

Sale!
LilyPad 328 ATmega328P

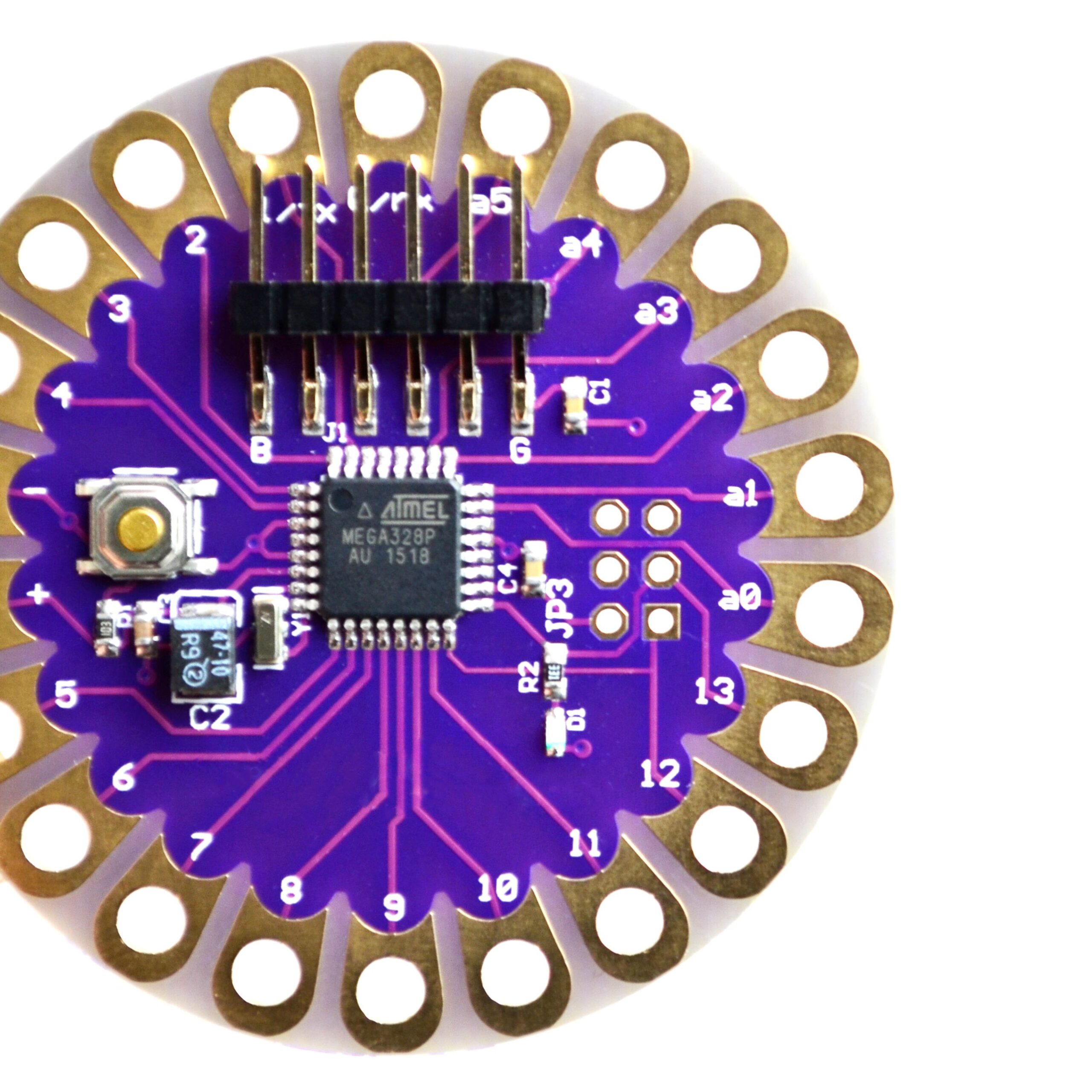

LilyPad 328 Main Board ATmega328P ATmega328 16M For Arduino 1 scaled
LilyPad 328 ATmega328P

LilyPad 328 ATmega328P Main Board 16M Compatible with Arduino

(1 customer review)

Original price was: ₹699.00.Current price is: ₹519.00. (inc. GST)

In stock

  • Cash on Delivery(COD) available on orders above 499/-
  • Free shipping on prepaid orders above 499/- use FREESHIP Coupon code!
  • 10 Days Return Policy!
  • Dispatch in 24 Hours from Warehouse!
Add to Wishlist
Add to Wishlist
  1. Microcontroller:  ATmega328P
  2. Operating Voltage: 2.7-5.5 V
  3. Digital I/O Pins: 14
  4. PWM Channels: 6
  5. Analog Input Channels: 6
  6. DC Current per I/O Pin: 40 mA
  7. Board will run from 2V to 5V.
  8. The latest version of the LilyPad supports automatic reset for even easier programming.

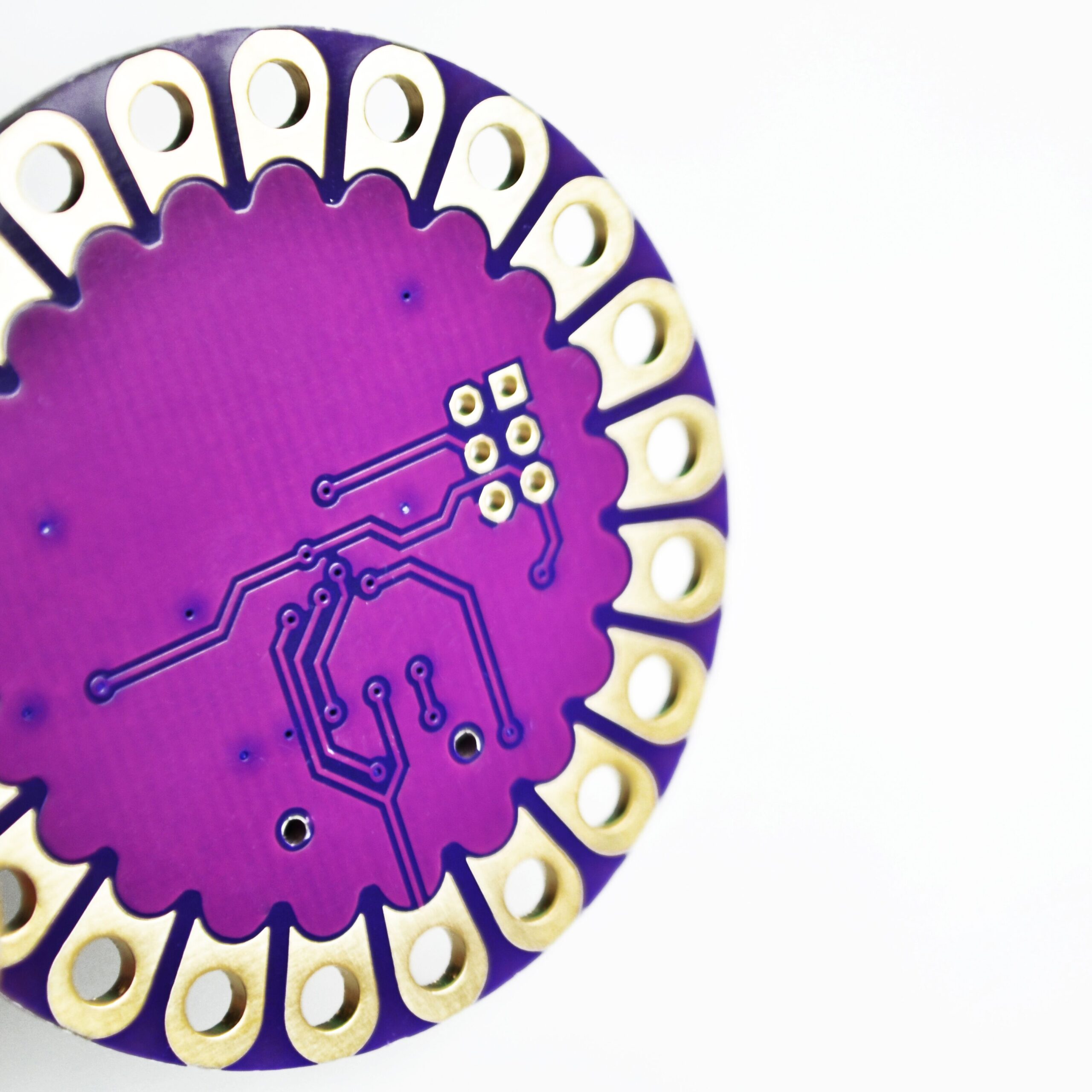

  9. The back side of the LilyPad is now completely flat!
SKU: RY-ARDUINOLILY Categories: , Tags: , , , ,

Description

The LilyPad Arduino 328 Main Board is an Arduino-programmed microcontroller designed to be easily integrated into e-textiles and wearable projects. It offers the same functionality you find in other Arduino boards, in a lightweight, round package designed to minimize snagging and profile, with wide tabs that can be sewn down and connected with conductive thread.

The LilyPad Arduino consists of an ATmega328 with the Arduino bootloader and a minimum number of external components to keep it as small (and as simple) as possible. This board will run from 2V to 5V and offers large pin-out holes that make it easy to sew and connect. Each of these pins, with the exception of (+) and (-), can control an attached input or output device (like a light, motor, or switch).

LilyPad is a wearable e-textile technology developed by Leah Buechley and cooperatively designed by Leah and SparkFun. Each LilyPad was creatively designed to have large connecting pads to allow them to be sewn into clothing. Various input, output, power, and sensor boards are available. They’re even washable!



Features :

  1. Board will run from 2V to 5V.
  2. The latest version of the LilyPad supports automatic reset for even easier programming.
  3. The backside of the LilyPad is now completely flat!
  4. We now use a surface mount programming connector to keep the header from poking through.
  5. This version of the LilyPad now uses the new ATmega328 at 8MHz.
  6. Arduino 0016 supports the Pro Mini Arduino 328/8MHz/16MHZ.
  7. Use this setting when using this new LilyPad 328.

Package Includes :

1 x Lilypad Audriono ATMega328P 16M HW-1 Board.
