L298N Motor Driver Module – Good Quality

Sale!
l298n motor driver module
Rytronics 2amp 7v 30v l298n motor driver stepper driver 2 channels
2amp-7v-30v-l298n-motor-driver-stepper-driver-2-channels

L298N Motor Driver Module – Good Quality

(5 customer reviews)

Original price was: ₹199.00.Current price is: ₹125.00. (inc. GST)

In stock

  • Cash on Delivery(COD) available on orders above 499/-
  • Free shipping on prepaid orders above 499/- use FREESHIP Coupon code!
  • 10 Days Return Policy!
  • Dispatch in 24 Hours from Warehouse!
Add to Wishlist
Add to Wishlist

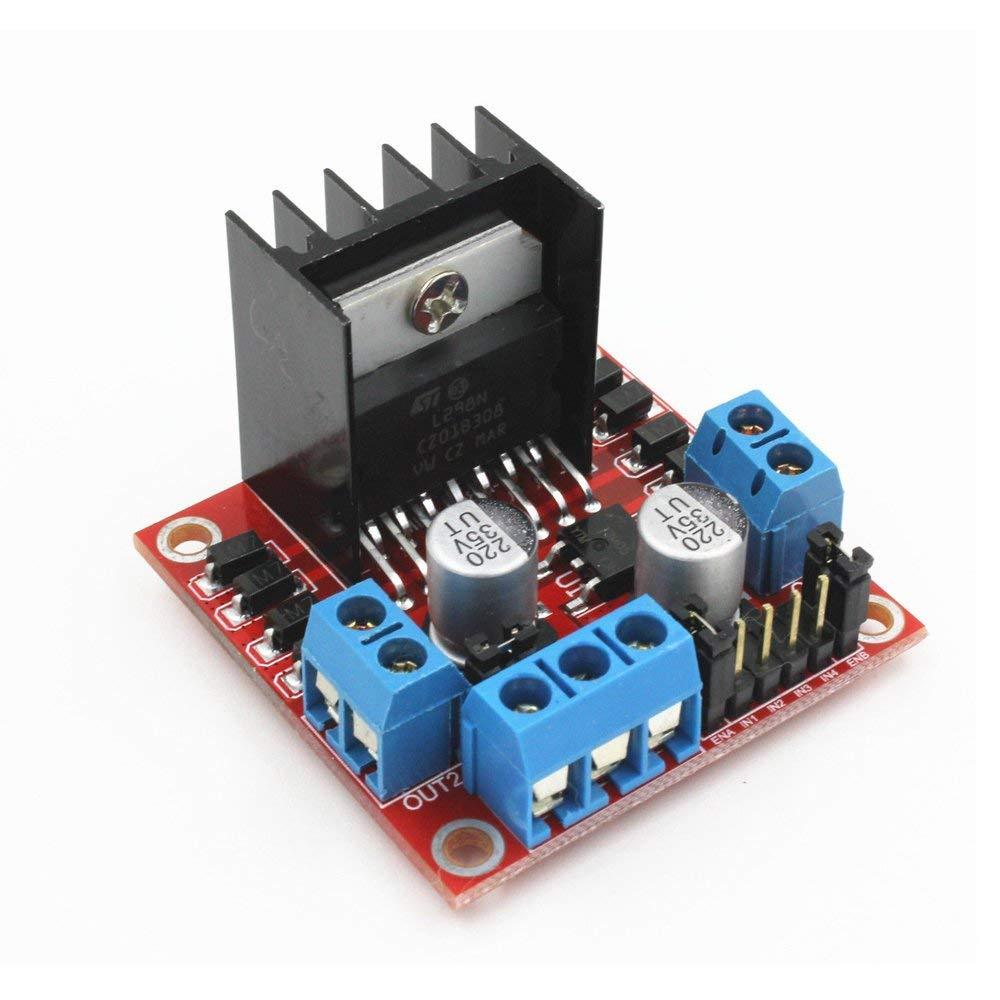

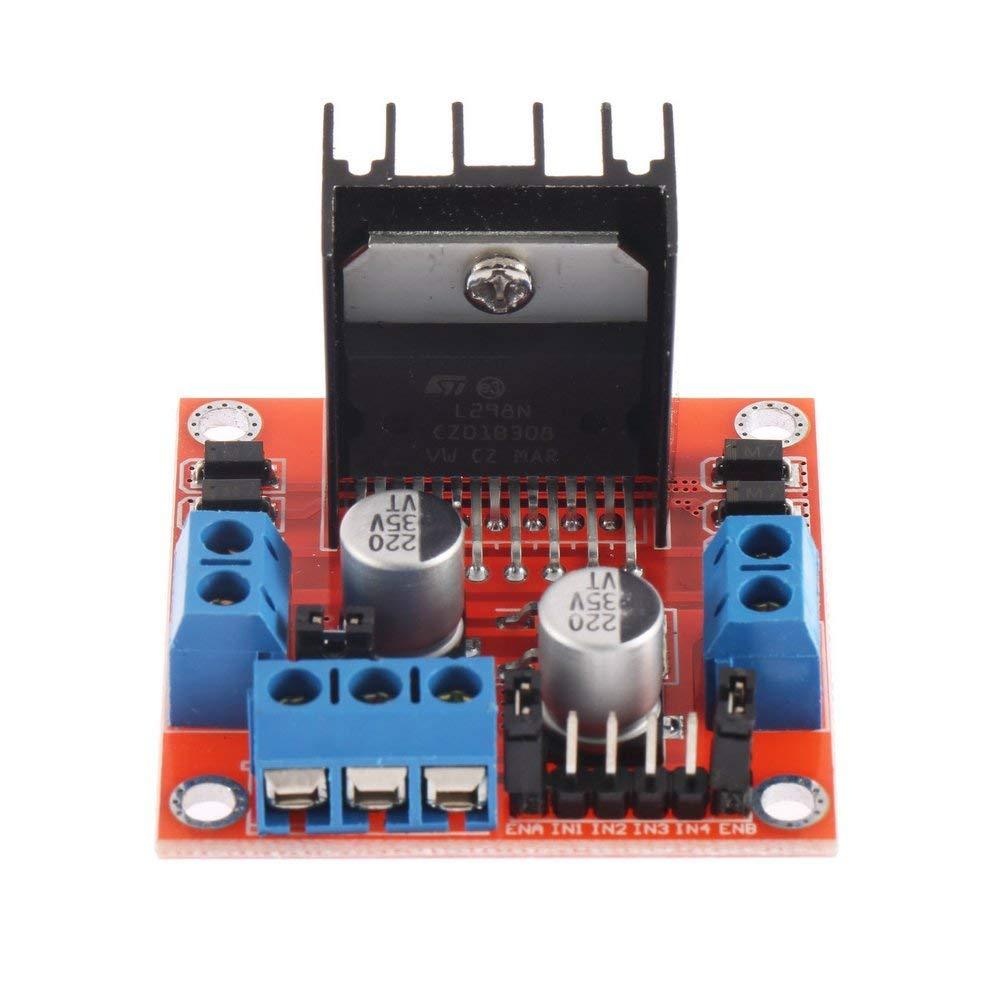

  1. L298N Motor Driver Module
  2. Current Sense for each motor.
  3. Heatsink for better performance.
  4. Power-On LED indicator.
  5. Double H bridge Drive Chip: L298N.
  6. Operating Voltage(VDC): 5~35
  7. Peak Current (A): 2
  8. Continuous Current (A): 0-36mA
  9. No. of Channels: 2
  10. Over-Current Protection (A): Yes
  11. Thermal Protection: Yes
SKU: RY-L298N Category:

Description

This L298N Motor Driver Module is capable of driving inductive loads such as relays, solenoids, DC and stepping motors. The module is based on the L298 chip; which is a high voltage, high current, dual full-bridge motor driver designed to accept standard TTL logic levels. The L298 Stepper Controller makes it easy to drive either two DC motors or a bipolar stepper motor.

Usage:

H-bridges are typically used in controlling motors speed and direction but can be used for other projects such as driving the brightness of certain lighting projects such as high powered LED arrays.

How it works:

An H-Bridge is a circuit that can drive a current in either polarity and be controlled by *Pulse Width Modulation (PWM).

* Pulse Width Modulation is a means in controlling the duration of an electronic pulse. In motors try to imagine the brush as a water wheel and electrons as the flowing droplets of water. The voltage would be the water flowing over the wheel at a constant rate, the more water flowing the higher the voltage. Motors are rated at certain voltages and can be damaged if the voltage is applied to heavily or if it is dropped quickly to slow the motor down. Thus PWM. Take the water wheel analogy and think of the water hitting it in pulses but at a constant flow. The longer the pulses the faster the wheel will turn, the shorter the pulses, the slower the water wheel will turn. Motors will last much longer and be more reliable if controlled through PWM.

Pins Details

Out 1: Motor A lead out
Out 2: Motor A lead out
Out 3: Motor B lead out
Out 4: Mo (Can actually be from 5v-35v, just marked as 12v)
GND: Ground
5v: 5v input (unnecessary if your power source is 7v-35v, if the power source is 7v-35v then it can act as a 5v out)
EnA: Enables PWM signal for Motor A (Please see the “Arduino Sketch Considerations” section)
In1: Enable Motor A
In2: Enable Motor A
In3: Enable Motor B
In4: Enable Motor B
EnB: Enables PWM signal for Motor B (Please see the “Arduino Sketch Considerations” section)

Two things to mention;

  • Make sure you have all of your grounds tied together; Arduino, Power source, and the Motor Controller.
  • The PWM Pins are unnecessary if you do not want to control PWM features.
ARDUINO SKETCH CONSIDERATIONS :

The Arduino code sketch is pretty straightforward. Since there isn’t a library for the L298N Dual H-Bridge Motor Controller you just have to declare which pins the controller is hooked to.

The “int dir(number)Pin(letter)”‘ pins can be connected to any available digital pin you have available, as long as you declare the correct pin in your sketch. This makes the L298N Dual H-Bridge Motor Controller very versatile if your project is using a lot of Arduino pins.

The int“speedPin(letter)” pins need to be connected to a PWM pin on the Arduino if you want to enable speed control through PWM.

As a quick cheat I have included a list of PWM pins for the main two types of Arduino’s I use:

  • AT MEGA – PWM: 2 to 13 and 44 to 46. Provide 8-bit PWM output with the analogWrite() function.
  • UNO – PWM: 3, 5, 6, 9, 10, and 11. Provide 8-bit PWM output with the analogWrite() function.

Features:

  1. Maximum motor supply current: 2A per motor.
  2. Current Sense for each motor.
  3. Heatsink for better performance.
  4. Power-On LED indicator.
  5. Double H bridge Drive Chip: L298N.

Package Includes :

1 x L298N Motor Driver Module – Good Quality
