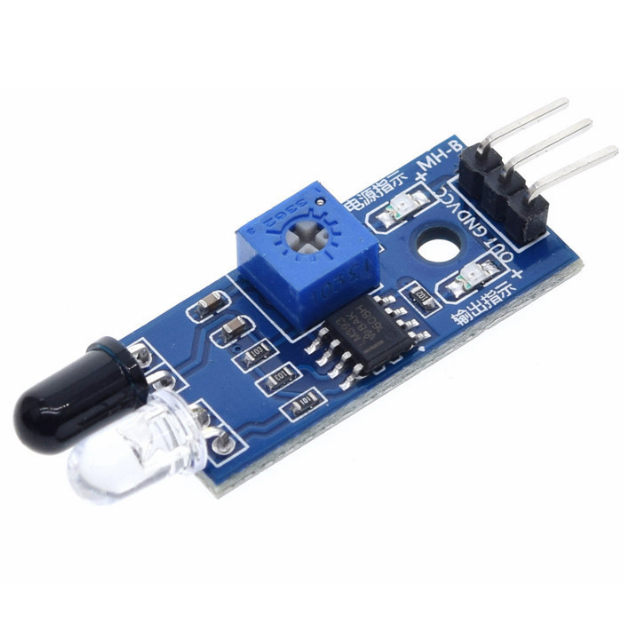

Infrared Obstacle Avoidance IR Sensor Module

(8 customer reviews)

34.00 (inc. GST)

In stock

  • Cash on Delivery(COD) available on orders above 499/-
  • Free shipping on prepaid orders above 499/- use FREESHIP Coupon code!
  • 10 Days Return Policy!
  • Dispatch in 24 Hours from Warehouse!
Add to Wishlist
Add to Wishlist
  1. Detection range: 2 ~ 80cm
  2. Detection angle: 35 °
  3. 3mm screw holes for easy mounting

Description

Infrared Obstacle Avoidance IR Sensor Module adaptable to ambient light, having a pair of infrared emitting and receiving tubes, transmitting tubes emit infrared certain frequency, when the direction of an obstacle is detected

The module features a 3 wire interface with Vcc, GND and an OUTPUT pin on its tail. It works fine with 3.3 to 5V levels. Upon hindrance/reflectance, the output pin gives out a digital signal (a low-level signal). The onboard preset helps to fine-tune the range of operation, the effective distance range is 2cm to 80cm.

– Onboard LED indicates if the module is connected properly
– Another onboard LED indicates when threshold values are touched (turns on)
– Great for DIY projects and Arduino beginners
– M3 Mounting holes to mount the module on your desk or project
– Proximity range up to 7 centimeters depending on the obstructing object and surrounding environment.

Specifications:

  1. Detection range: 2 ~ 80cm
  2. Detection angle: 35 °
  3. 3mm screw holes for easy mounting

Package Includes :

1 x Infrared Obstacle Avoidance IR Sensor Module
