Name: INMP441 MEMS Omnidirectional Microphone Module High Precision/SNR Low Power I2C Interface Supports ESP32 - Rytronics.in
Brand: Sensor and Modules
SKU: RY-INMP441
Price: 219.00 INR
Availability: InStock
Rating: 5.00 (3 reviews)

Sale!

INMP441 MEMS Omnidirectional Microphone Module High Precision/SNR Low Power I2C Interface Supports ESP32

Rated 5.00 out of 5 based on 3 customer ratings

(3 customer reviews)

Original price was: ₹399.00.Current price is: ₹219.00. (inc. GST)

In stock

Digital I2S interface with high precision 24-bit data
High signal to noise ratio is 61 dBA
High sensitivity – 26 dBFS
Stable frequency response from 60 Hz to 15 kHz
Low power consumption: low current consumption 1.4 mA
High PSR: -75 dBFS

SKU: RY-INMP441 Categories: Sensor and Modules, Audio Module, Communication Module, Modules, Sensors

Description

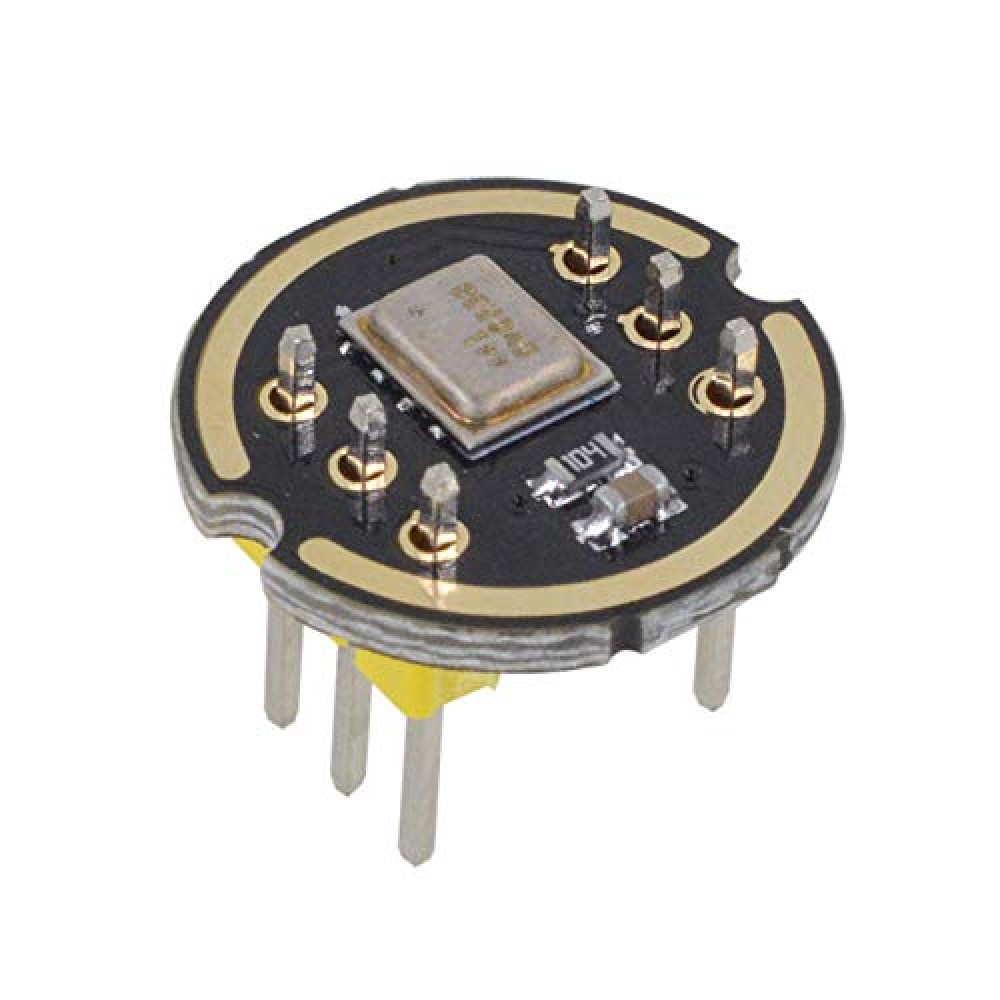

The INMP441 MEMS Omnidirectional Microphone Module is a high performance, low power, digital output, omnidirectional MEMS microphone with bottom port. The complete INMP441 solution consists of a MEMS sensor, signal conditioning, analog to digital converter, anti-aliasing filter, power management and industry standard 24-bit I2S interface. The I2S interface allows the INMP441 to be directly connected to digital processors such as DSPs and microcontrollers without the need for an audio codec for use in the system. The INMP441 has a high signal-to-noise ratio and is an excellent choice for near field applications. The INMP441 has a flat wideband frequency response that results in high definition of natural sound.

Features:

Digital I2S interface with high precision 24-bit data
High signal to noise ratio is 61 dBA
High sensitivity – 26 dBFS
Stable frequency response from 60 Hz to 15 kHz
Low power consumption: low current consumption 1.4 mA
High PSR: -75 dBFS

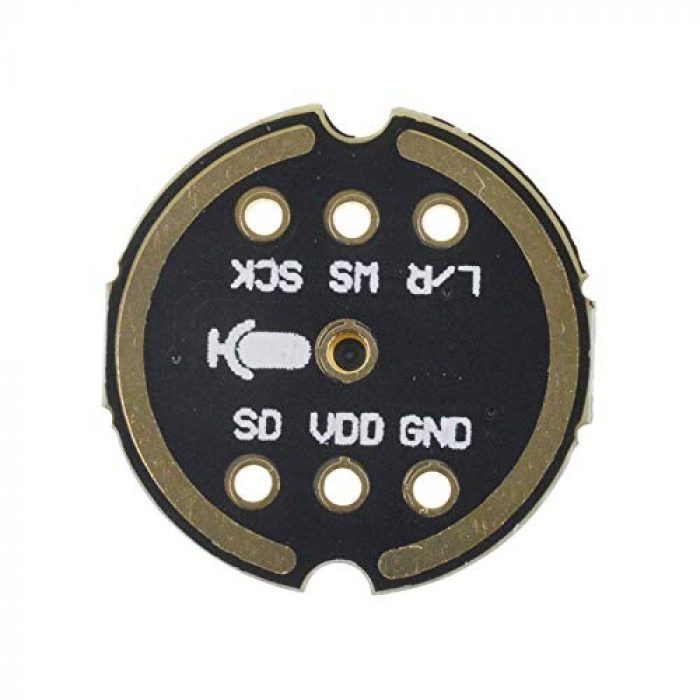

Interface definition

SCK: Serial data clock for I2S interface
WS: Serial data word selection for I2S interface
L/R: Left/Right channel selection.
When set to low, the microphone outputs a signal on the left channel of the I2S frame.
When set to high level, the microphone outputs signals on the right channel
SD: Serial data output of the I2S interface.
VCC: Input power, 1.8V to 3.3V.
GND: power ground

NMP441 connection with ESP32

SCK -GPIO14
SD – GPIO32
WS – GPIO15
L/R – GND
GND – GND
VDD – VDD3.3

Package Includes:

1 X INMP441 Mems Microphone Sensor Module
