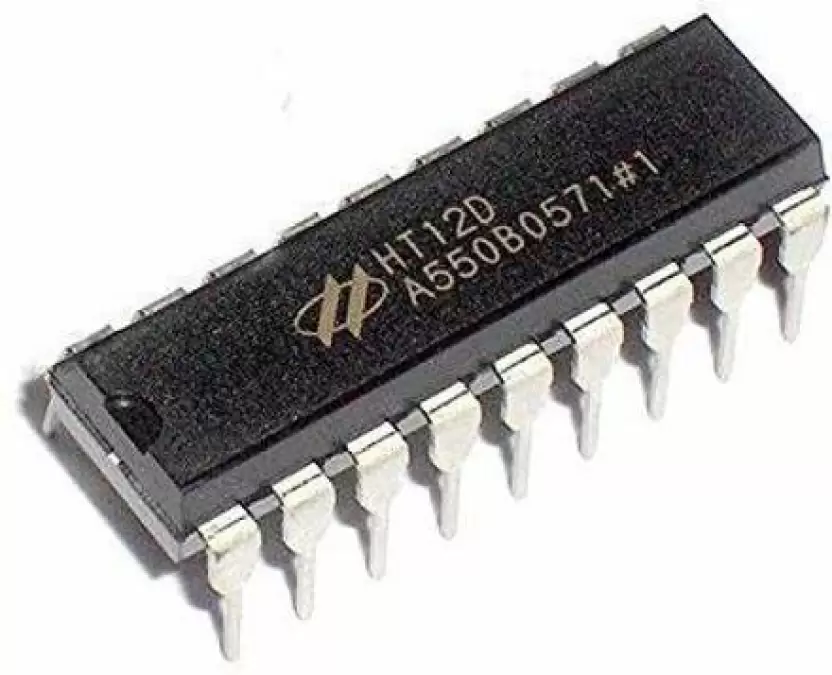

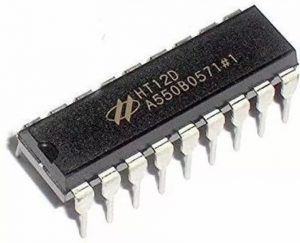

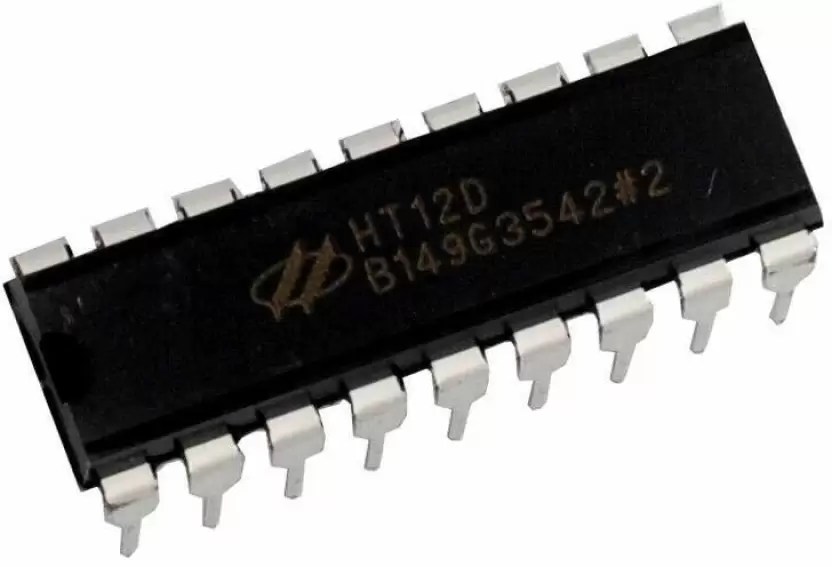

HT12D Decoder IC

ht12d-decoder-2-12-series-cmos-2-4-v-to-12-v-dip-18-for-diy-pack-original.
ht12d-decoder-2-12-series-cmos-2-4-v-to-12-v-dip-18-for-diy-pack-original.

HT12D Decoder IC

(1 customer review)

₹45.00 (inc. GST)

Out of stock

Operating Voltage Range 2.4 V to 12 V
Technology CMOS
Package DIP−18
Output Current 1.6 mA
Powering Current 0.3 mA
Temperature Range -50 °C – 125 °C
SKU: RY-HT12DIC Category:
Add to Wishlist
Add to Wishlist

Description

HT12D is a decoder integrated circuit that belongs to 212 series of decoders. This series of decoders are mainly used for remote control system applications, like burglar alarm, car door controller, security system etc. It is mainly provided to interface RF and infrared circuits.  They are paired with 212 series of encoders. The chosen pair of encoder/decoder should have same number of addresses and data format.In simple terms, HT12D converts the serial input into parallel outputs. It decodes the serial addresses and data received by, say, an RF receiver, into parallel data and sends them to output data pins. The serial input data is compared with the local addresses three times continuously. The input data code is decoded when no error or unmatched codes are found. A valid transmission in indicated by a high signal at VT pin. HT12D is capable of decoding 12 bits, of which 8 are address bits and 4 are data bits. The data on 4 bit latch type output pins remain unchanged until new is received.

Specifications & Features of HT12D Decoder IC:-

  • Operating voltage: 2.4V~12V
  • Low power and high noise immunity CMOS technology
  • Low standby current
  • Capable of decoding 12 bits of information
  • Binary address setting
  • Received codes are checked 3 times
  • Address/Data number combination
  • HT12D: 8 address bits and 4 data bits
  • Built-in oscillator needs only 5% resistor
  • Valid transmission indicator
  • Easy interface with an RF or an infrared transmission medium
  • Minimal external components
  • Pair with Holteks212 series of encoders
  • 18-pin DIP

Applications of HT12D Decoder IC:-

  • Burglar alarm system
  • Smoke and fire alarm system
  • Garage door controllers
  • Car door controllers
  • Car alarm system
  • Security system
  • Cordless telephones
  • Other remote control systems



* Product Images are shown for illustrative purposes only and may differ from actual product.
