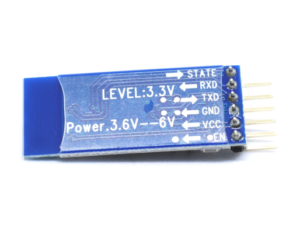

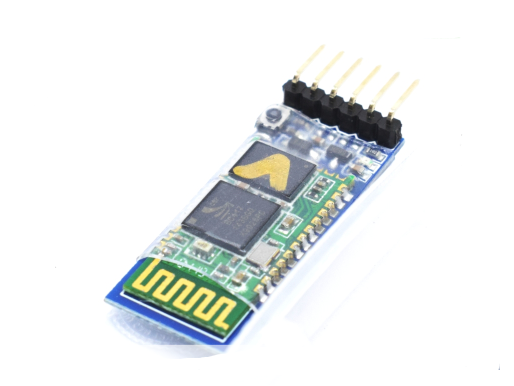

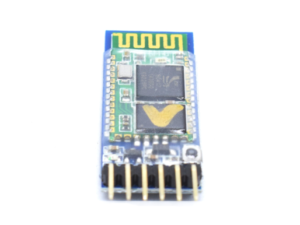

HC-05 6pin Bluetooth Module with Button
Original price was: ₹345.00.₹239.00Current price is: ₹239.00. (inc. GST)
In stock
- Bluetooth protocol: Bluetooth Specification v2.0+EDR.
- Frequency: 2.4GHz ISM band.
- Modulation: GFSK(Gaussian Frequency Shift Keying).
- Emission power: =4dBm, Class 2.
- Sensitivity: =-84dBm at 0.1% BER.
Description
HC-05 Bluetooth Module is an easy-to-use Bluetooth SPP (Serial Port Protocol) module, designed for transparent wireless serial connection setup. Its communication is via serial communication which makes an easy way to interface with controller or PC. HC-05 Bluetooth module provides switching mode between master and slave mode which means it able to use neither receiving nor transmitting data.
Specifications
- Serial Bluetooth module for Arduino and other microcontrollers
- Operating Voltage: 4V to 6V (Typically +5V)
- Operating Current: 30mA
- Range: <100m
- Works with Serial communication (USART) and TTL compatible
- Follows IEEE 802.15.1 standardized protocol
- Uses Frequency-Hopping Spread spectrum (FHSS)
- Can operate in Master, Slave or Master/Slave mode
- Can be easily interfaced with Laptop or Mobile phones with Bluetooth
Applications
1. Wireless communication between two microcontrollers
2. Communicate with Laptop, Desktops and mobile phones
3. Data Logging application
4. Consumer applications
5. Wireless Robots
6. Home Automation
Package Includes:
1 x HC-05 6pin Bluetooth Module with Button
