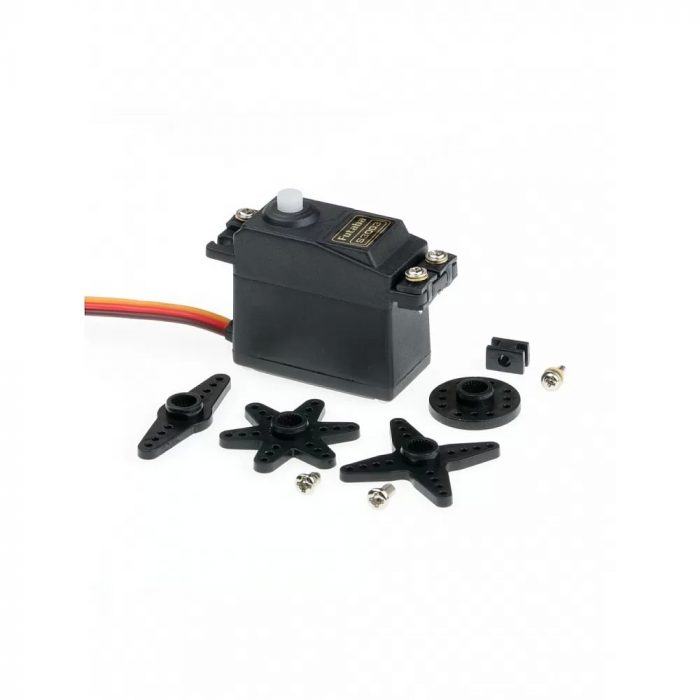

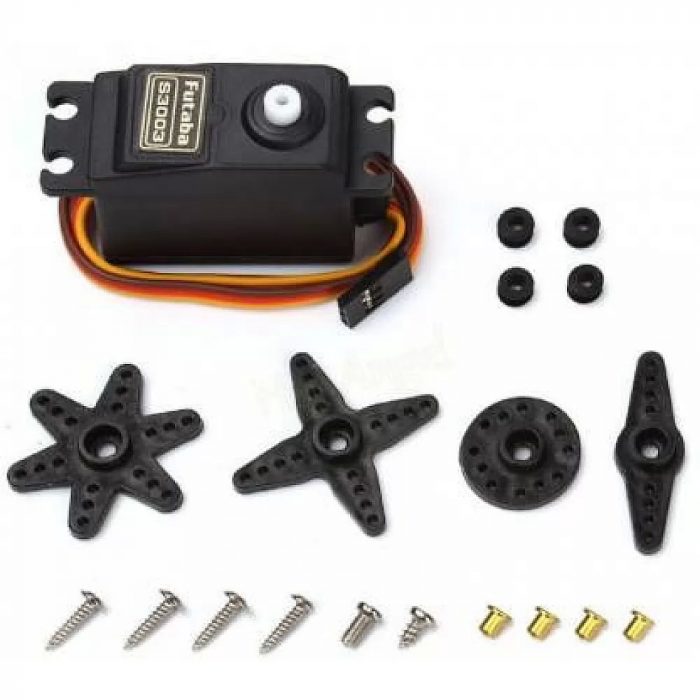

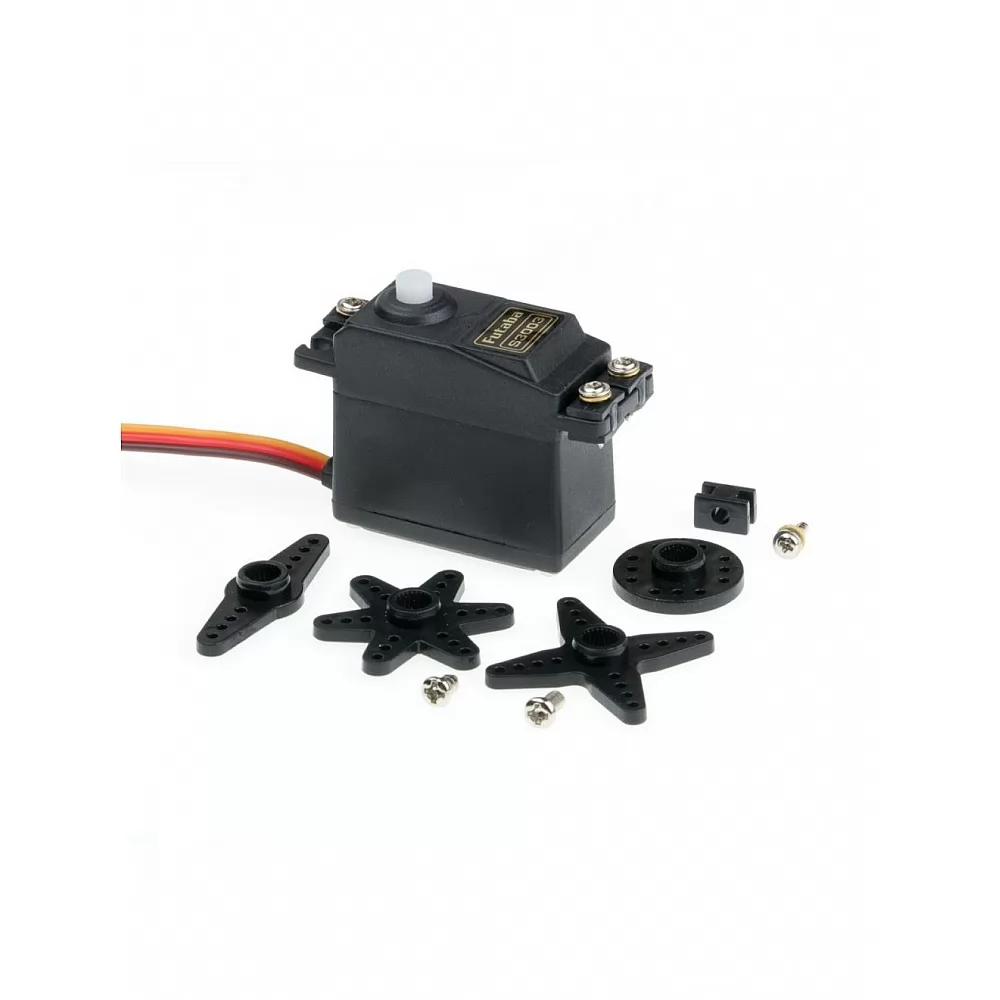

Futaba S3003 Standard 3.2 kgcm torque 360 degree Servo Motor

Original price was: ₹299.00.Current price is: ₹249.00. (inc. GST)

Out of stock

Torque: 44 oz-in (3.2 kg-cm) @ 4.8V; 57 oz-in (4.1 kg-cm) @ 6V
Speed: 0.23 sec/60° @ 4.8V; 0.19 sec/60° @ 6V
Genuine S3003 servos are your easiest and most efficient way to upgrade your Futaba system
Performance and reliability have made S3003 servos the favorite choice of professionals
Surface Mount Technology improves reliability in applications where there is vibration

Category: Motors and Drivers

Add to Wishlist

Description

The Futaba S3003 Standard 3.2 kgcm torque Servo Motor is a great multi-purpose standard-size high reliability servo, and it can be easily modified for continuous rotation. Features plastic gearing, so these are not suitable for high impact applications, but they’re a great choice for beginners – perfect for moving a robotic arms through a certain range or steering a rover!

We do stock metal geared, high torque servo’s for more intensive applications.

The unit comes complete with 30cm wire and 3 pin ‘S’ type female header connector that fits most receivers. This servo can rotate approximately 360 degrees (90 in each direction), but can be modified for full rotation, and comes with a range of horns and hardware to suit most applications! You can use any servo code, hardware or library to control these servos, so it’s great for beginners who want to make stuff move without building a motor controller with feedback & gear box, especially since it will fit in small places. They work great with 16 Channel Servo Driver , and other Raspberry Pi Motor Controllers.

Specifications:

Model	Futaba S3003
Operating Voltage	4.8-6.0 Volts
Operational current	100mA
Operating Speed (4.8V)	0.23sec/60 degrees at no load
Operating Speed (6.0V)	0.19sec/60 degrees at no load
Stall Torque (4.8V)	3.2kg.cm
Stall Torque (6.0V)	4.1kg.cm
Gear Type	Nylon Gears
Connector	“J” type
Dimensions	40 x 20 x 36mm
Weight	37g

Wiring Guide:

Red: Battery Positive
Black: Battery Negative
White: Signal

Package Includes:

1x Futaba S3003 Standard 3.2 kgcm torque Servo Motor
