FT232RL USB TO TTL 5V 3.3V Download Cable To Serial Adapter Module for Arduino

₹109.00 (inc. GST)

In stock

Chipset: FT232RL

Supported Voltages: 3.3V, 5V

Main Color: Red

Pitch: 2.54mm

Interface: Mini USB

Weight: 4 grams

Material: PCB Electronic Component

SKU: RY1300 Categories: Programmer, Miscellaneous Module, Modules

Description

FT232RL USB TO TTL 5V 3.3V Download Cable To Serial Adapter Module for Arduino

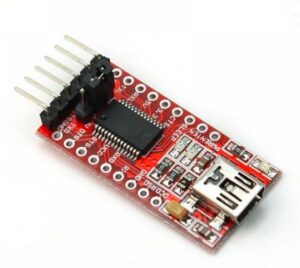

The USB TO UART TTL 5V 3.3V FT232RL Download Cable To Serial Adapter Module is a basic breakout board for the FTDI FT232RL USB to serial IC, Revision 2. The pinout of this board matches the FTDI cable to work with official Arduino and cloned 5V Arduino boards. It can also be used for general serial applications.

The major difference with this board is that it brings out the DTR pin as opposed to the RTS pin of the FTDI cable. The DTR pin allows an Arduino target to auto-reset when a new Sketch is downloaded. This is a really nice feature to have and allows a sketch to be downloaded without having to hit the reset button. This board will auto reset any Arduino board that has the reset pin brought out to a 6-pin connector.

The pins labelled BLK and GRN correspond to the coloured wires on the FTDI cable. The black wire on the FTDI cable is GND, green is CTS. Use these BLK and GRN pins to align the FTDI basic board with your Arduino target.

This board has TX and RX LEDs that make it a bit better to use over the FTDI cable. You can actually see serial traffic on the LEDs to verify if the board is working.

This board was designed to decrease the cost of Arduino development and increase ease of use (the auto-reset feature rocks!). Our Arduino Pro boards and LilyPads use this type of connector.

One of the nice features of this board is a jumper on the back of the board that allows the board to be configured to either 3.3V or 5V (both power output and IO level). This board ship default to 5V, but you can cut the default trace and add a solder jumper if you need to switch to 3.3V.

How to interface with the Pro Mini Module:

FTDI—–>Pro Mini

GND—->GND
VCC—->VCC
TX—–> RX
RX—-> TX
DTR—->GRN

Features:

Compatibility: Compatible with official Arduino and cloned 5V Arduino boards, making it ideal for Arduino development projects.
Auto-Reset Feature: Utilizes the DTR pin for auto-reset functionality, allowing for automatic resetting of Arduino targets when downloading new sketches without manual intervention.

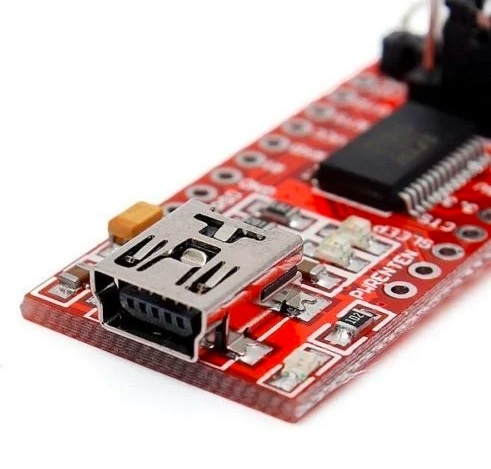

LED Indicators: Equipped with TX and RX LEDs for easy monitoring of serial traffic, enhancing usability and troubleshooting capabilities.
Jumper Configuration: Features a jumper on the back of the board for easy configuration between 3.3V and 5V settings, offering flexibility in power output and IO level.
High Performance: Powered by the original FTDI FT232 chip, ensuring stable performance and reliable data transfer.
Over Current Protection: Includes USB power with over-current protection, utilizing a 500MA self-restore fuse for added safety and protection.
Indicator Lights: Features power, sending, and receiving indicator lights, providing clear visual cues for the module’s working status.
Compact Design: Compact module size of approximately 36mm in length and 17.5mm in width, offering convenient integration into Arduino projects.
Interface: Utilizes a standard Mini USB port connection for easy connectivity with a variety of devices.

Features of FT232RL IC:-

Single chip USB to asynchronous serial data transfer interface.
Entire USB protocol handled on the chip. No USB specific firmware programming required.
Fully integrated 1024 bit EEPROM storing device descriptors and CBUS I/O configuration.
Fully integrated USB termination resistors.
Fully integrated clock generation with no external crystal required plus optional clock output selection enabling a glue-less interface to external MCU or FPGA.
Data transfer rates from 300 baud to 3 Mbaud (RS422, RS485, RS232) at TTL levels.
128 byte receive buffer and 256 byte transmit buffer utilizing buffer smoothing technology to allow for high data throughput.

Features of FT232RL USB TO TTL Module:-

Material: PCB Electronic Component
Support 3.3V, 5V
Main Color: Red
Chipset: FT232RL
USB power has over current protection, using 500MA self-restore fuse
RXD/TXD transceiver communication indicator
Pin definition: DTR,RXD,TX,VCC,CTS,GND
Pitch:2.54mm
Module Size: About 36mm(length)*17.5mm(width)
Interface : Mini USB
Weight : 4 gram

Specifications:

IC Chip	FT232RL
Pitch	2.54mm
Interface	Mini USB
Length (mm):	36
Width (mm):	18
Weight (g):	4

Package Includes

1 x USB TO UART TTL 5V 3.3V FT232RL Download Cable To Serial Adapter Module
