Name: Espressif ESP32-WROOM-32 4M 32Mbit Flash WiFi Bluetooth Module - Rytronics.in
Brand: Development Boards
SKU: RY-ESP32WAROO
Price: 339.00 INR
Availability: InStock

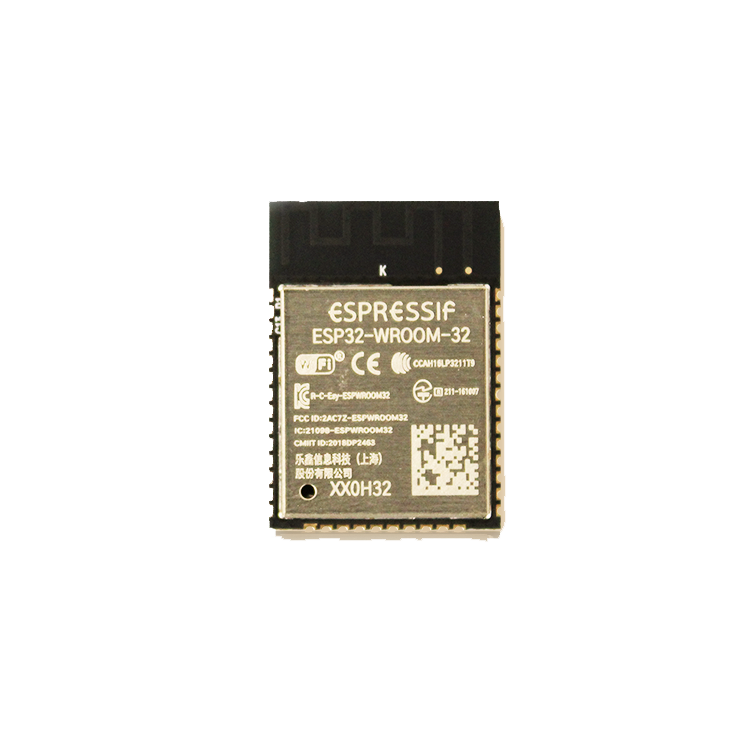

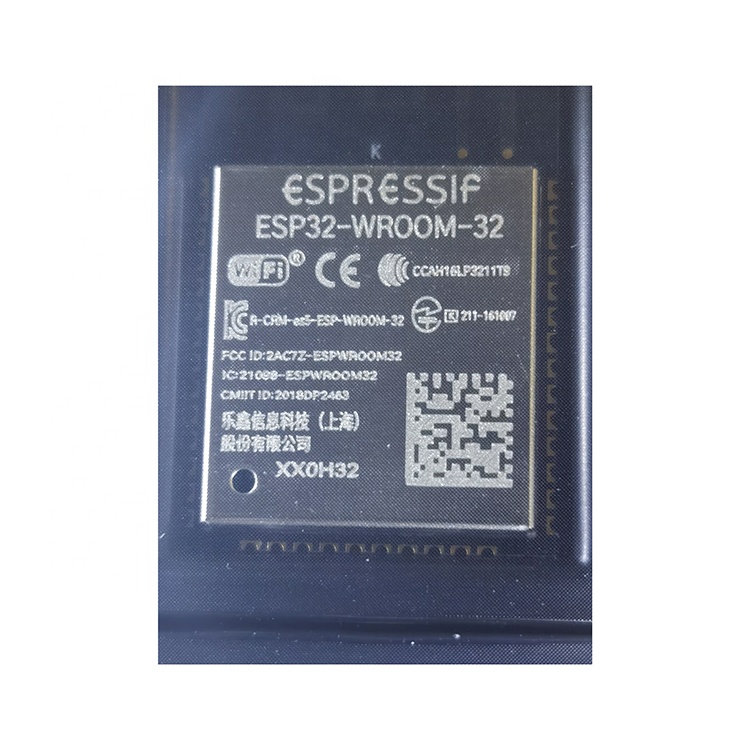

Espressif ESP32-WROOM-32 4M 32Mbit Flash WiFi Bluetooth Module

₹339.00 (inc. GST)

In stock

ESP32-D0WD core
Supports multiple external QSPI flash and SRAM chips
32Mbits 3.3V SPI flash
802.11 b/g/n (802.11n up to 150Mbps) Wi-Fi protocol
Bluetooth v4.2 BR/EDR and BLE
SD card, UART, SPI, SDIO, I²C, LED PWM, Motor PWM, I²S, and IR module interfaces
Hall sensor

SKU: RY-ESP32WAROO Categories: Development Boards, ESP Boards and Accessories

Description

Espressif Systems ESP32-WROOM-32 MCU Modules are powerful and generic Wi-Fi/BT/BLE MCU modules that target a wide variety of applications. These modules target applications ranging from low-power sensor networks to the most demanding tasks, such as voice encoding, music streaming, and MP3 decoding.

The ESP32-WROOM-32 MCU Modules use the ESP32-D0WD chip at its core. This SoC features two CPU cores that can be individually controlled, and the CPU clock frequency is adjustable from 80MHz to 240MHz. The ESP32 integrates a rich set of peripherals, ranging from capacitive touch sensors, Hall sensors, SD card interface, Ethernet, high-speed SPI, UART, I²S, and I²C.

ESP-32S Wifi Bluetooth combo module provides SDK Firmware for fast online programming and open source toolchains based on GCC for development support. It is designed for Generic low power IoT sensor hub, loggers, video streaming for the camera, Wi-Fi & Bluetooth enabled devices, Home automation, and mesh network applications, aimed at makers, hardware engineers, software engineers and solution provides.

ESP32 is a single chip 2.4 GHz Wi-Fi and Bluetooth combo chip designed with TSMC ultra-low-power 40 nm technology. It is designed and optimized for the best power performance, RF performance, robustness, versatility, features, and reliability, for a wide variety of applications, and different power profiles.

ESP32 is the most integrated solution for Wi-Fi + Bluetooth applications in the industry with less than 10 external components. ESP32 integrates the antenna switch, RF balun, power amplifier, low noise receive amplifier, filters, and power management modules. As such, the entire solution occupies a minimal Printed Circuit Board (PCB) area.

ESP32 is designed for mobile, wearable electronics, and the Internet of Things (IoT) applications. It has many features of state-of-the-art low power chips, including fine resolution clock gating, power modes, and dynamic power scaling.

Features:

Two low-power Xtensa 32-bit LX6 microprocessors
ESP32-D0WD core
Supports multiple external QSPI flash and SRAM chips
32Mbits 3.3V SPI flash
40MHz crystal
Onboard PCB antenna for ESP32-WROOM-32
U.FL connector (which needs to be connected to an external IPEX antenna) for ESP32-WROOM-32U
Advanced power-management technologies

Package Includes:

1 x Espressif ESP32-WROOM-32 4M 32Mbit Flash WiFi Bluetooth Module
