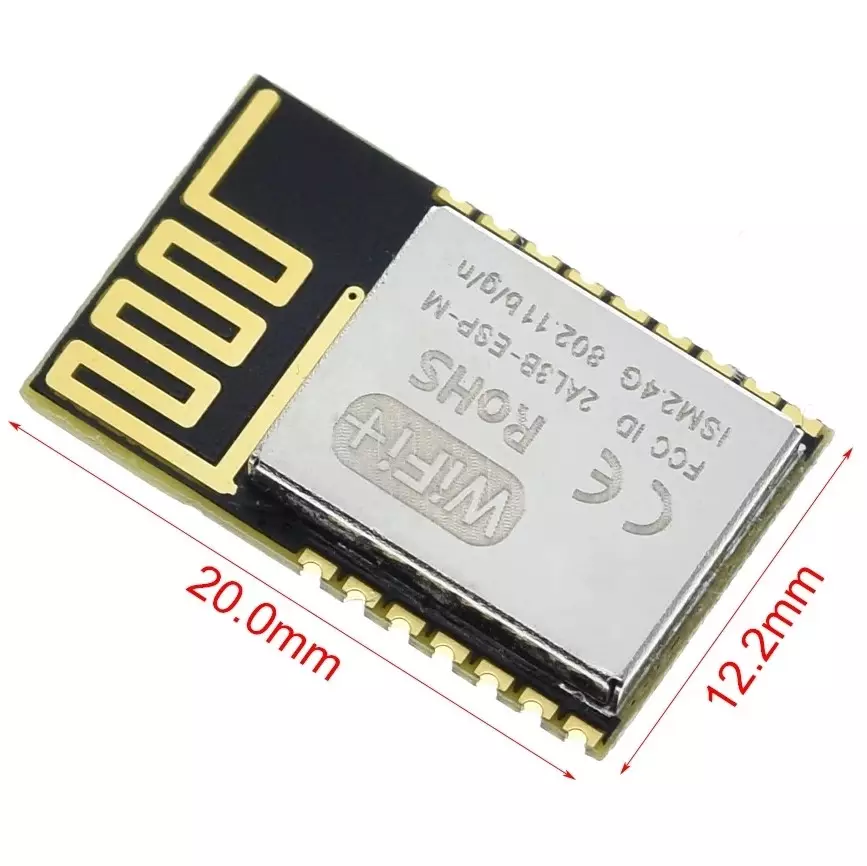

ESP8285-M1 Wifi Module

Ultra-small size Support serial to WiFi Wireless transparent transmission Long distance transmission with ultra-low power Support outboard antenna Bearing high temperature to 125 ℃, compared to the 85℃ for ESP8266.

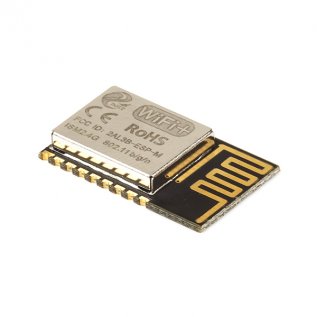

ESP8285 M1 Wifi Module 1

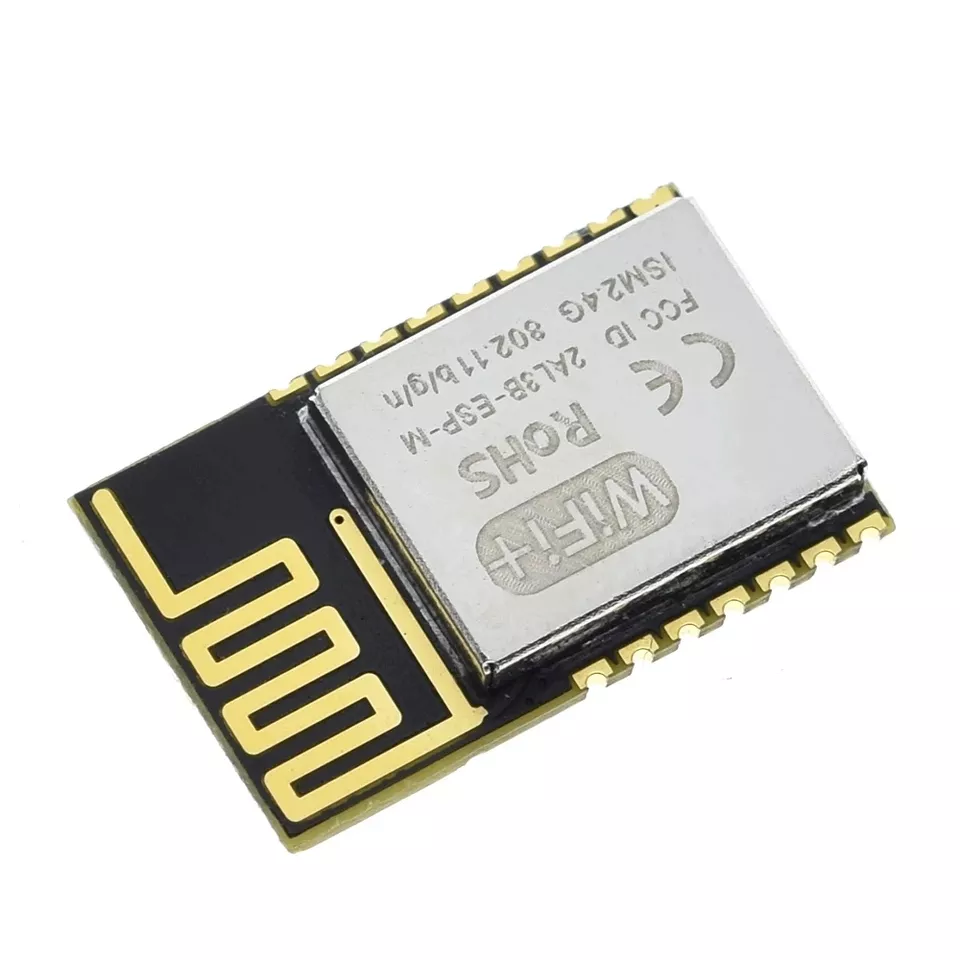

ESP8285 M2 Wifi Module 2
Ultra-small size Support serial to WiFi Wireless transparent transmission Long distance transmission with ultra-low power Support outboard antenna Bearing high temperature to 125 ℃, compared to the 85℃ for ESP8266.

ESP8285-M1 Wifi Module

₹199.00 (inc. GST)

In stock

  • Cash on Delivery(COD) available on orders above 499/-
  • Free shipping on prepaid orders above 499/- use FREESHIP Coupon code!
  • 10 Days Return Policy!
  • Dispatch in 24 Hours from Warehouse!
Add to Wishlist
Add to Wishlist
  • Ultra-small size
  • Support serial to WiFi
  • Wireless transparent transmission
  • Long distance transmission with ultra-low power
  • Support outboard antenna
  • Bearing high temperature to 125 ℃, compared to the 85℃ for ESP8266.
SKU: RY-ESP8285M1 Categories: ,

Description

ESP-M1 is encapsulated  by the high performance chip ESP8285, which is equal to ESP8266 chip plus 1M Flash. The chip ESP8285 is encapsulated a advanced Tensilica’s L106 32-bit CPU, together with SRAM.  ESP 8285 IoT Module has the full and complete WiFi function, which can used independently and also used as a slaver with other other MCU, which can start directly from the out-built Flash. In addition, the built-in high-speed buffer is benefit for the system performance. Especially, ESP 8285 can be used as a WiFi adapter by SPI/SDIO and/or I2C/UART interface, when it is applied to the other MCU design.

Features of Mini ESP8285 M1 WiFi Module

  • Ultra-small size
  • Support serial to WiFi
  • Wireless transparent transmission
  • Long distance transmission with ultra-low power
  • Support outboard antenna
  • Bearing high temperature to 125 °C, compared to the 85°C for ESP8266

Specifications  of ESP8285 M1 WiFi Module

SOC characteristics:

  • Built-in Tensilica L106 ultra-low power 32-bit CPU, main frequency supports 80MHz and160MHz and RTOS
  • Built-in TCP/IP protocol
  • Built-in one-channel 10-bit high precision ADC
  • Outboard interface: HSPI, UART, I2C, I2S, IR Remote Control, PWM, GPIO
  • Deep sleep current is 10uA, the cut-off current is smaller than 5uA
  • Wake, connect and transmission data package within 2ms
  • The consumer power is smaller 1.0Mw (DTIM3) when at standby status
  • Built-in 1M byte for SPI Flash

 WiFi characteristics

  • Support 802.11 b/g/n/e/I
  • Support Station, Soft AP, Soft AP+STA mode
  • Support WiFi Direct (P2P)
  • Support CCMP (CBC-MAC, computation mode), TKIP (MIC, RC4), WAPI (SMS4), WEP (RC4), CRC etc., for hardware acceleration
  • P2P finding, P2P GO mode/ GC mode and P2P power manage
  • WPA/PA2PSK and WPS
  • 802.11securitycertification: pre-certification and TSN
  • Support 802.11n (2.4GHz)
  • 802.1h/RFC1042 frame encapsulation
  • Support seamless roaming
  • Support AT remote update and cloud update (OTA)
  • Support Smart Config function (including Android and Ios device)

 Module interface:

  • 2* UART
  • 1*ADC
  • 1*En
  • 1*wakeup pin
  • 1*HSPI
  • 1*I2C
  • 1*I2S
  • More than 10*GPIOs
  • Working temperature : -40°C-+125°C

Applications of Mini ESP-M1 ESP8285 Serial Wireless WiFi Transmission Module

  • Smart power plug, smart light
  • Infant monitor
  • Sensor networks
  • Security ID label
  • Wireless location beacon
  • Home automation
  • Mesh networks
  • IP video camera
  • Wearable electronics
  • Wireless location recognition
  • Industrial wireless control
  • Electronic appliance

Package includes:

  • 1 x Esp8285-M1 Wifi Module
