ESP32 Development Board WiFi + BT + BLE (38pin)

Rated 5.00 out of 5 based on 3 customer ratings

(3 customer reviews)

Original price was: ₹449.00.Current price is: ₹359.00. (inc. GST)

In stock

ESP32-WROOM-32 Based Development board
It supports WiFi, Bluetooth, Bluetooth Low Energy
Dual Core MCU
Clock Frequency of upto 240 Mhz
Upto 512 KB RAM
Available Peripherals: Capactive Touch, ADCs, DACs, UART, SPI, I2C and more

SKU: RY-ESP32WIFIBT Category: Basic Components

Description

This is ESP WROOM 32 MCU Module. ESP WROOM 32 is a powerful, generic WiFi-BT-BLE MCU module that targets a wide variety of applications, ranging from low-power sensor networks to the most demanding tasks, such as voice encoding, music streaming, and MP3 decoding.

The user may also power off the CPU and make use of the low-power coprocessor to constantly monitor the peripherals for changes or crossing of thresholds. ESP32S integrates a rich set of peripherals, ranging from capacitive touch sensors, Hall sensors, low-noise sense amplifiers, SD card interface, Ethernet, high-speed SDIO/SPI, UART, and I²C.

Using Bluetooth, users can connect to their phone or broadcast low energy beacons for its detection. The use of Wi-Fi enables a large physical range, as well as a direct connection to the internet via a Wi-Fi router. Perfect for wearable electronic or battery-powered applications, the ESP32 chip uses less than 5µA.

In addition, this module can support data rates of up to 150 Mbps and 22 dBm output power at the PA in order to allow for the widest physical range.

ESP32 Development board is based on the ESP32-WROOM-32 Module, which consists of ESP32 series microcontroller from ESPRESSIF. It is a WiFi + Bluetooth + BLE development board. The module has a 32 Bit Dual Core MCU, ultra low power, based on 40 nM technology. The module supports 802.11 b/g/n along with Bluetooth v4.2 BR/EDR and BLE specification. It has integrated 4 MB Flash, and up to 512 KB RAM. It can operate at up to 240 Mhz Frequency.

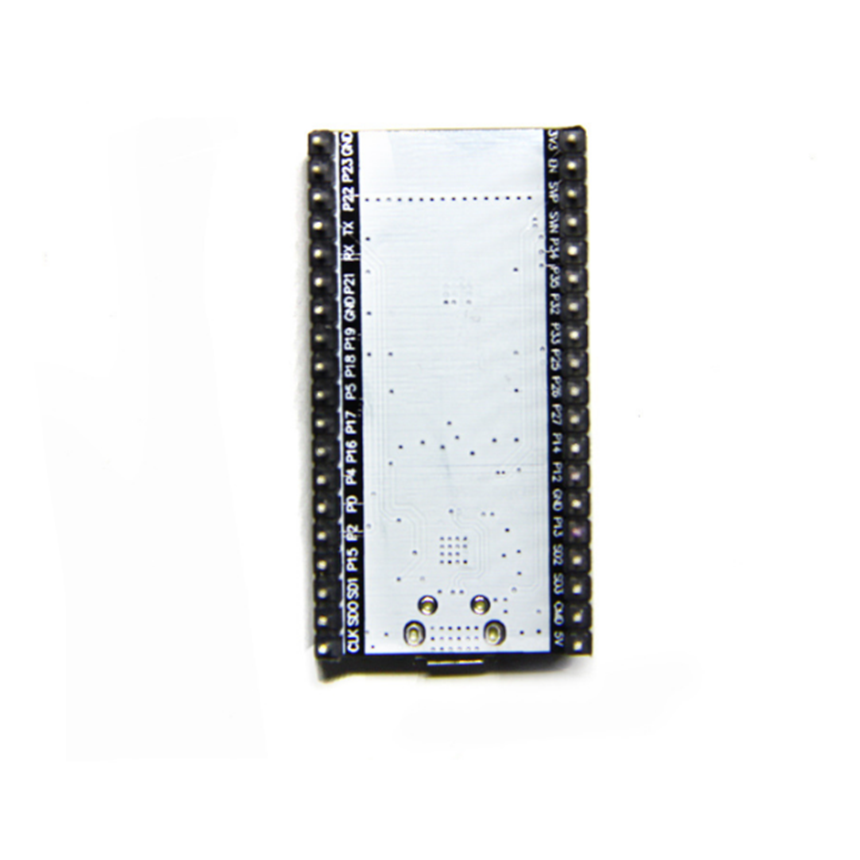

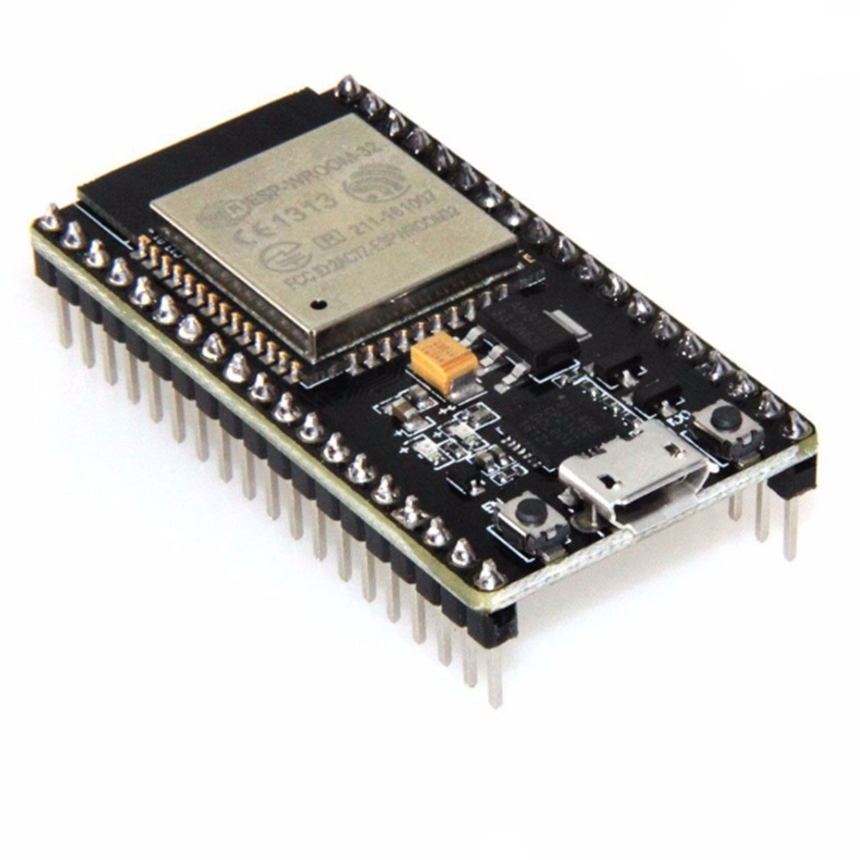

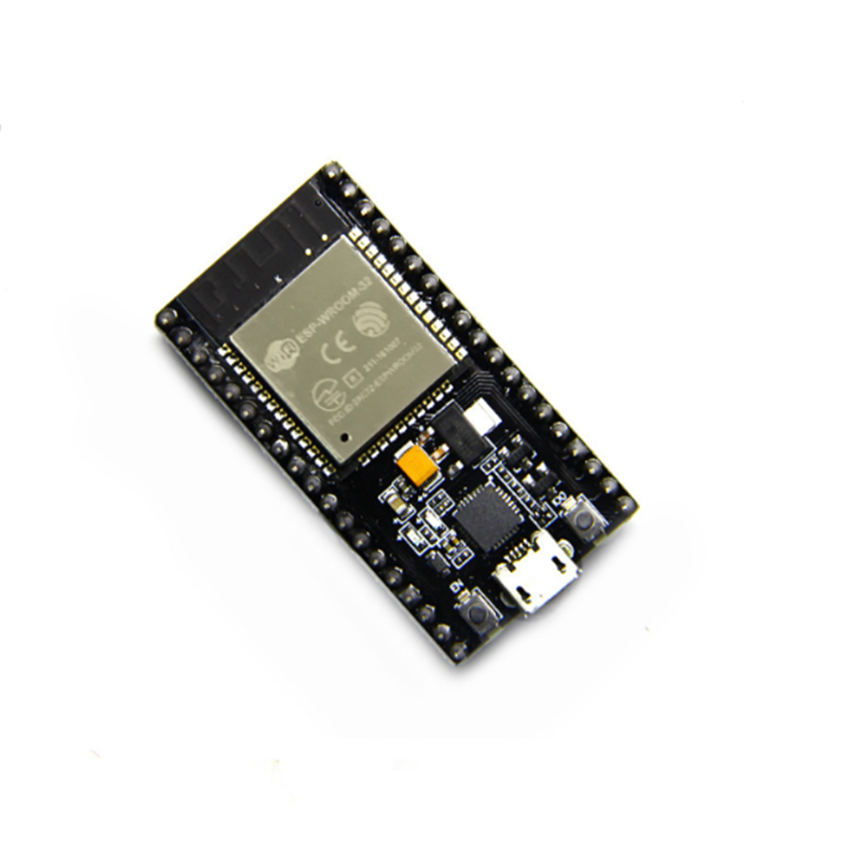

The ESP32 Development board is 30 pin board, with all of the interfaces accessible. It sports a micro USB Connector, and USB to UART Bridge, reset and boot mode buttons, and a LDO regulator. Most of the important GPIOs are accessible in the board.

This board is useful to add high capacity WiFi, Bluetooth or BLE in any existing projects very rapidly. It also supports Lua scripting language, there by making it easier to develop for the developers.

802.11 b/g/n
WiFI + Bluetooth v4.2 BR/EDR And BLE
Based on ESP32 WROOM 32, 32Bit dual core MCU
Up to 512 KB RAM
Operating Voltage: 3.3 V
Supports Lua Program, making easier to develop
Supported Modes: AP, Station, AP+Station
Small Size, can be easily embedded to other projects

Application :

Universal low power IoT sensor hub.
Home automation.
Universal low power IoT recorder.
Mesh network.
Video streaming of the camera.
Industrial wireless control.
OTT TV box / set-top box device.
Baby monitor.
Smart Socket.
Sensor networks.
Wi-Fi toys: Counters, toys, Anti-lost device.
Wearable electronic products.
Wi-Fi speech recognition device.
Wi-Fi location-aware devices.

Features :

Integrated 520 KB SRAM.
Hybrid Wi-FI & Bluetooth.
High level of integration.
Ultra-low-power management.
4 MB Flash.
On-board PCB antenna.

Package Includes :

1 x ESP-WROOM-32 WIFI Bluetooth Networking Smart Component Development Board
