Name: ENC28J60 Ethernet Module(12 Pin Package: SSOP) - Rytronics.in
Brand: Communication Module
SKU: RY-ENC28J60ETH
Price: 459.00 INR
Availability: OutOfStock

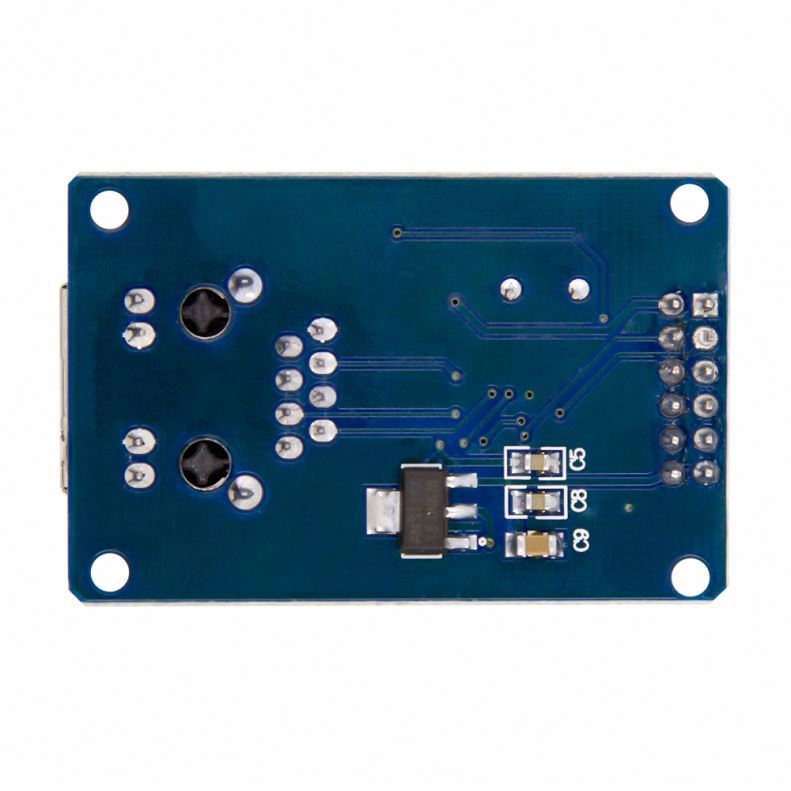

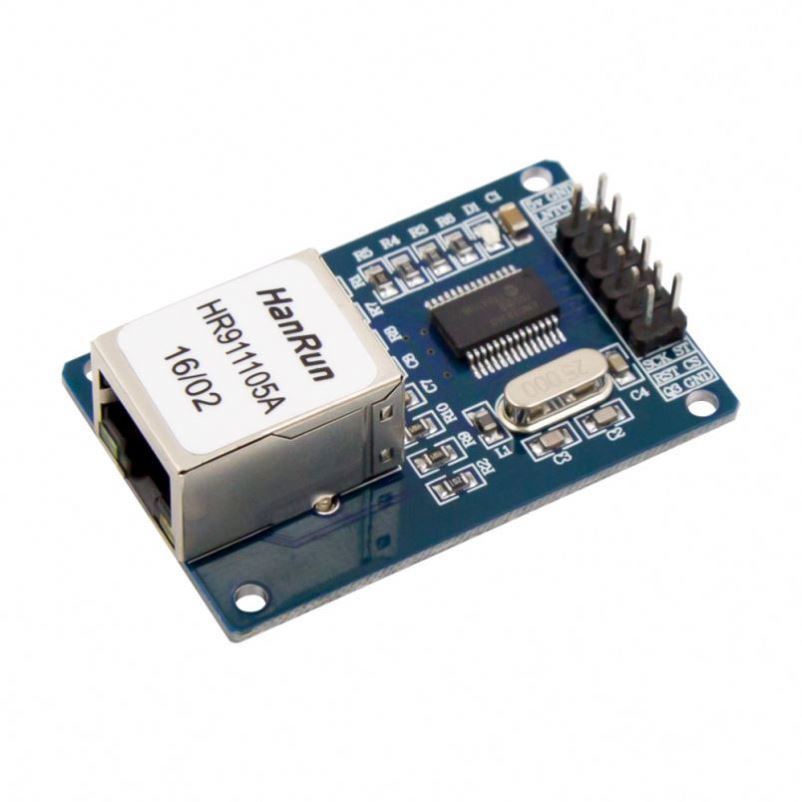

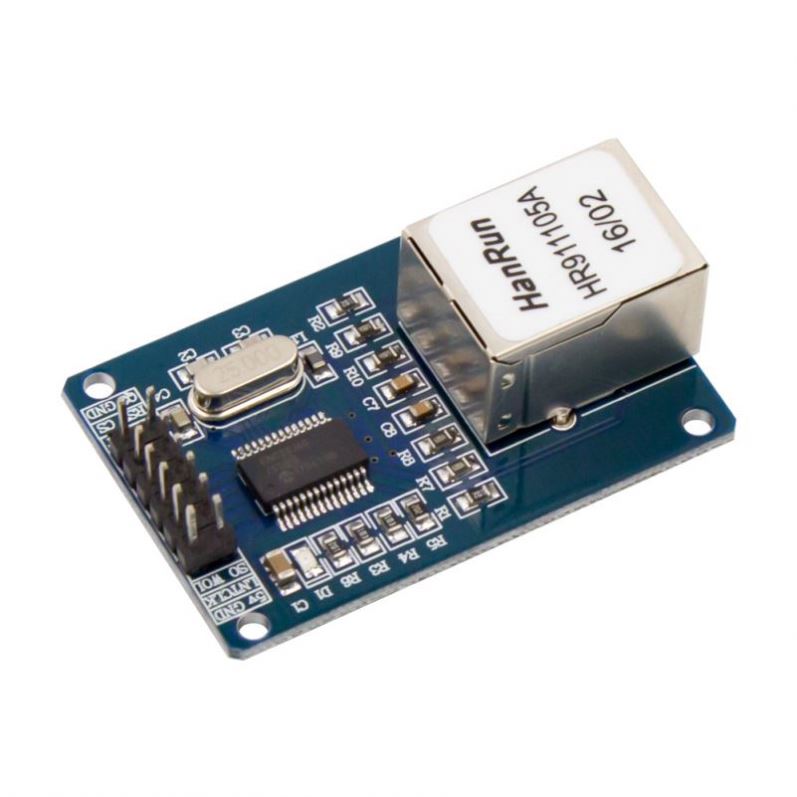

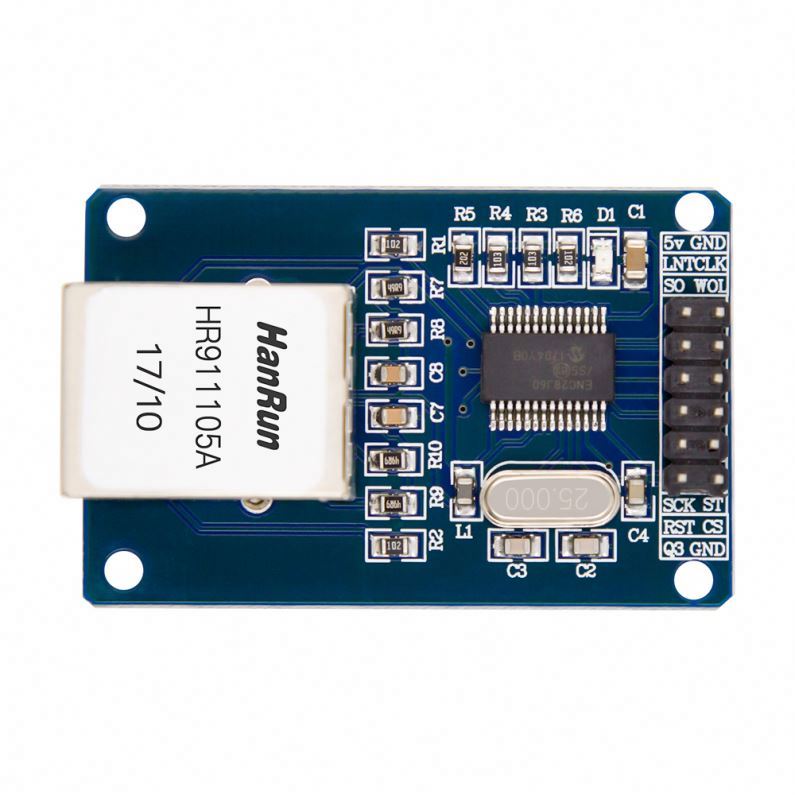

ENC28J60 Ethernet Module(12 Pin Package: SSOP)

₹459.00 (inc. GST)

Out of stock

ENC28J60 Ethernet Module
HanRun HR911105A Ethernet port
5V supply voltage
100% Genuine ENC28J60 Chipset, compatible with Arduino etc.
25MHz Crystal.
Standard HanRun HR911105A Ethernet Interface.

SKU: RY-ENC28J60ETH Categories: Communication Module, Cable and Connectors, Connectors, Modules, Sensor and Modules

Add to Wishlist

Description

The ENC28J60 Ethernet Module is a board which contains an Ethernet port and converts Ethernet input into SPI. The board is based on Microchip’s ENC28J60 integrated circuit and it can be used to provide internet connectivity to microcontroller systems like Arduino boards over Ethernet.

Since the board is small in size and it supports SPI, it is applicable to a variety of projects.

Utilizes the new SSOP 12 package Microchip ENC28J60 Stand-Alone Ethernet Controller IC featuring a host of features to handle most of network protocol requirements. The board connects directly to most microcontrollers with a standard SPI interface with a transfer speed of up to 25MHz.

The ENC28J60 Ethernet Module is an industry standard Serial Peripheral Interface (SPI). It is designed to serve as an Ethernet network interface for any controller equipped with SPI.

The ENC28J60 consists of seven major functional blocks:

An SPI interface that serves as a communication channel between the host controller and the ENC28J60.
Equips control registers for controlling and monitoring the ENC28J60.
A dual port RAM buffer for received and transmitted data packets.
An arbiter to control the access to the RAM buffer when requests are made from DMA, transmit and receive blocks.
The bus interface that interprets data and commands received via the SPI interface.
The MAC (Medium Access Control) module that implements the IEEE 802.3 compliant MAC logic.
The PHY (Physical Layer) module that encodes and decodes the analog data that is present on the twisted-pair interface.

Package Includes

1 x ENC28J60 Ethernet Module(12 Pin Package: SSOP)
