Name: DS3231 Real Time Clock Module 3.3V 5V Precise, with battery - Rytronics.in
Brand: Sensor and Modules
SKU: RY-3231RTC
Price: 239.00 INR
Availability: InStock

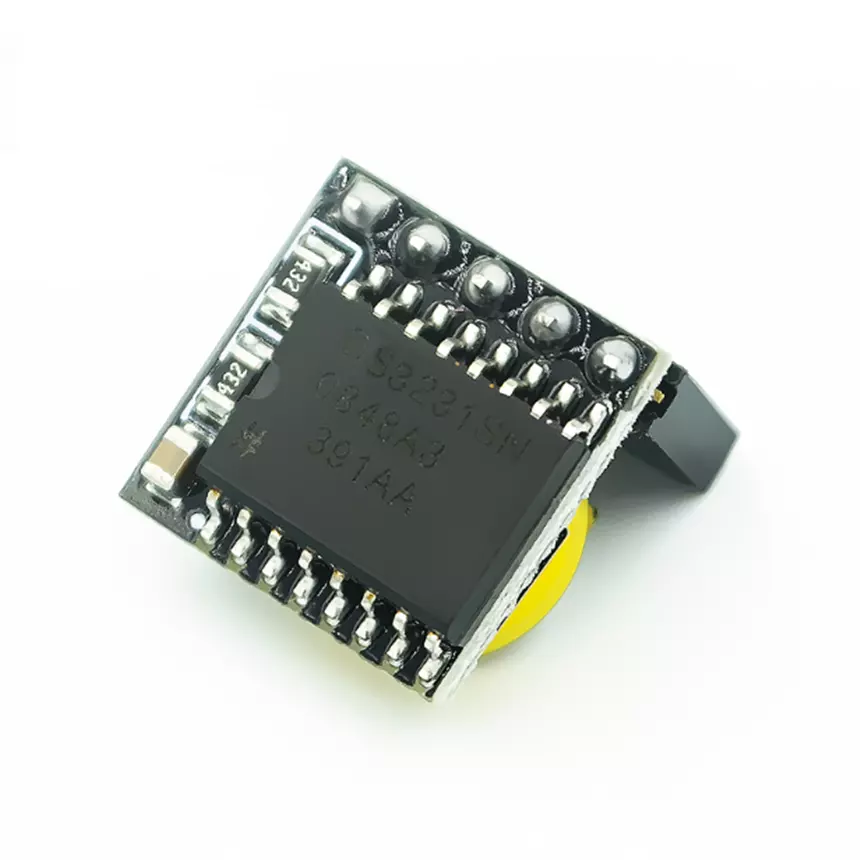

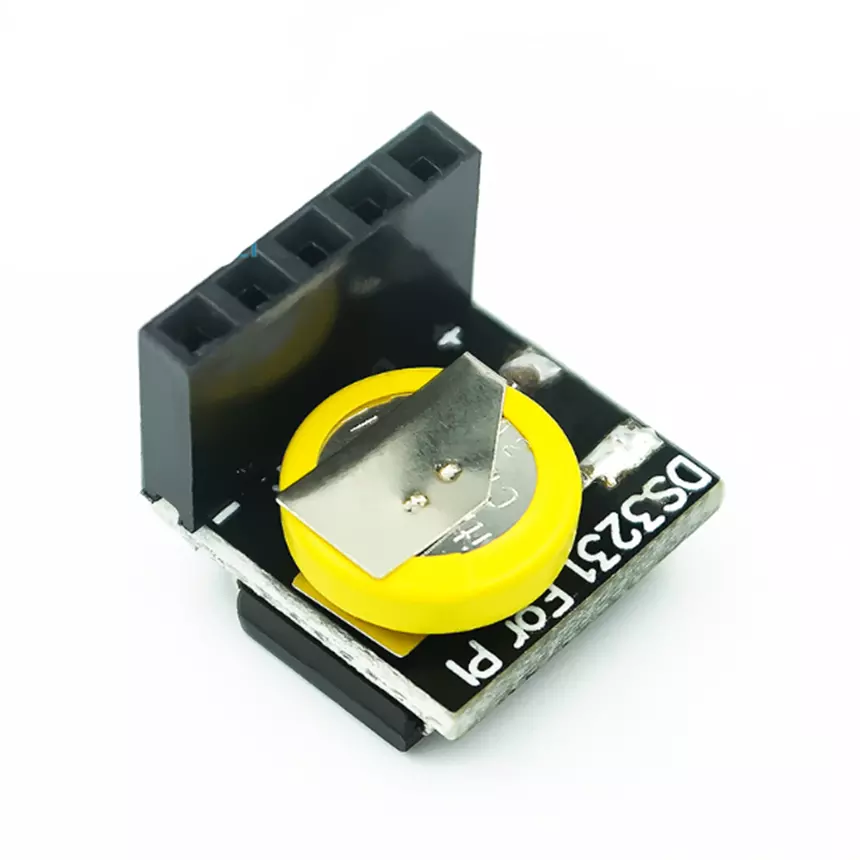

DS3231 Real Time Clock Module 3.3V 5V Precise, with battery

₹239.00 (inc. GST)

In stock

Supply voltage(V):+2.3 to +5.5
operating temperature range:-40°C to +85°C
Supported Raspberry Pi and Arduino
Provide battery backup for continuous timing.
Two calendar alarm.
1Hz and 32.768kHz output.

SKU: RY-3231RTC Categories: Sensor and Modules, Miscellaneous Module, Modules, Raspberry Boards and Accessories

Description

DS3231 Mini RTC is a Mini Real-Time Clock module designs for Raspberry Pi, but it also can be used to Arduino. DS3231 RTC IC Self-adjust 3.3V and 5V.Provide battery backup for continuous timing, Low-power consumption. Complete clock functions include seconds, minutes, hours, day, date, month and year timing, and provide valid to 2100.

It has Two calendar alarms, 1Hz, and 32.768kHz output. Reset output and input buttons Debounced High-speed (400KHz) I2C serial bus. Many RTC modules are meant to operate at 5V. Unfortunately, the Raspberry Pi operates at 3.3V, that is where this handy module comes into play, it operates at 3.3V perfect for adding an RTC to your Raspberry Pi.

Features:

Supported Raspberry Pi and Arduino Within -40°C to +85 ° C temperature range
Timing accuracy is maintained at ± 5ppm (± 0.432 sec/day).
operating temperature range:-40°C to +85°C
Provide battery backup for continuous timing.
Complete clock functions include seconds, minutes, hours, day, date, month and year timing, and provide valid to 2100.
Two calendar alarm.
1Hz and 32.768kHz output.
Size: 14x14x12 mm

Package Includes:

1 x DS3231 Real Time Clock Module 3.3V 5V Precise, with battery
