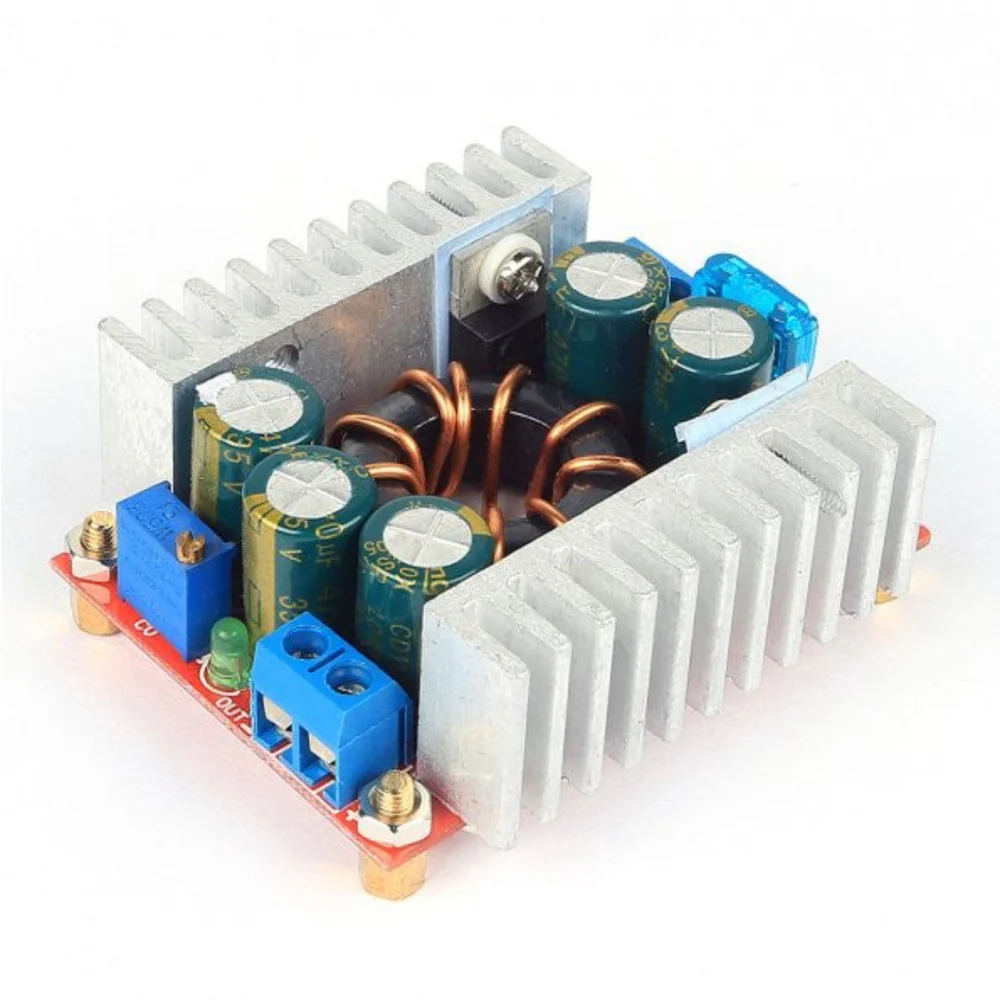

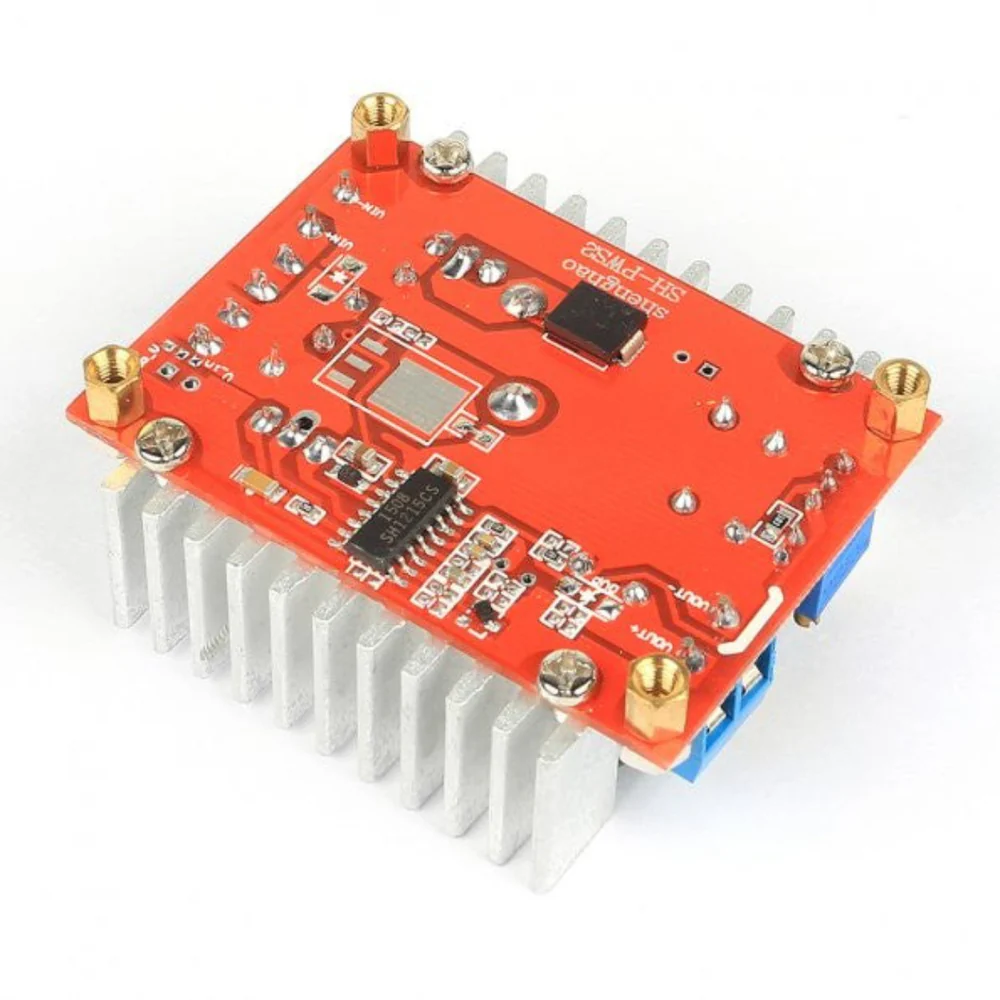

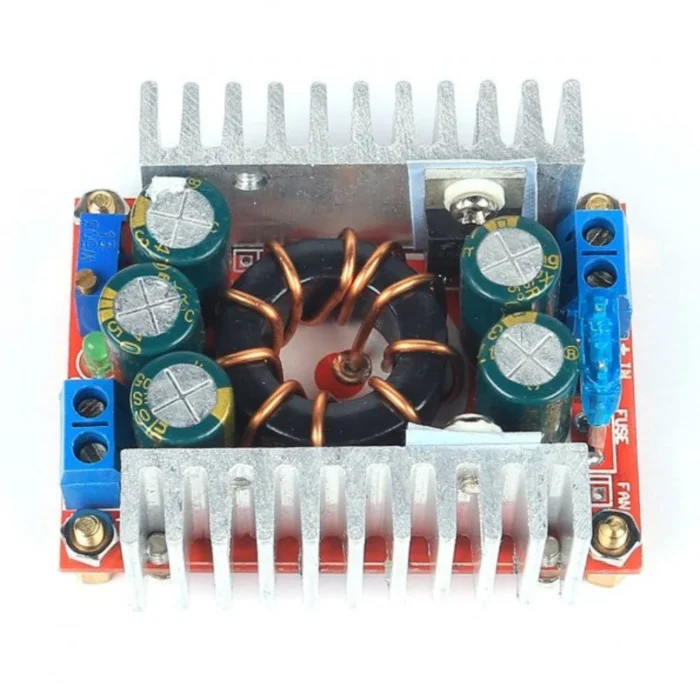

DC-DC 400W 15A Boost Converter Step-up Module Constant Current LED Driver

Original price was: ₹599.00.Current price is: ₹449.00. (inc. GST)

In stock

  • Cash on Delivery (COD) available on orders above 499/-
  • Free shipping on prepaid orders above 499/- use FREESHIP Coupon code!
  • 5 Days Return Policy!
  • Dispatch in 24 Hours from Warehouse!
Add to Wishlist
Add to Wishlist
  • Original, High Quality
  • Model: 15A DC-DC Buck Converter
  • Type: Voltage Regulator
  • Input Voltage: DC 4-32V (max 36V)
  • Output Voltage: DC 1.2-32V
  • Output Current: 0-15A
SKU: RY1355 Categories: ,

Description

DC-DC 400W 15A Boost Converter Step-up Module Constant Current LED Driver

This module can be applied to the input voltage is higher than the output voltage of the buck areas, such as batteries, power transformers, DIY adjustable power supply, 24V car T of the power supply, automotive LED lights with power, industrial equipment buck, 12V turn 3.3 V, 12V turn 5V, 24V turn 5V, 24V to 12V and so on. This 15A DC Buck Converter is a powerful and adaptable power supply module designed for a wide range of applications. It efficiently steps down DC input voltages from 4V to 32V with a maximum limit of 36V to adjustable output voltages ranging from 1.2V to 32V.

Technical Details

  • Model: 15A DC-DC Buck Converter
  • Type: Voltage Regulator
  • Input Voltage: DC4-32V (Limit 36V)
  • Output Voltage: DC1.2-32V
  • Output Current: 0-15A
  • Module : 15A synchronous-rectified buck
  • Module Properties: non-isolated step-down module (BUCK)
  • Input voltage: DC4-32V (Limit 36V)
  • Output voltage: DC1.2-32V continuously adjustable
  • Minimum differential pressure input and output: 1V
  • Output current:0-15A 10A long natural cooling, the temperature does not exceed 60 degrees, the peak of up to 20A. Decrease the amount of higher ambient temperatures used.
  • Operating temperature: -40 to +85 degrees
  • Operating Frequency: 150KHz
  • Conversion efficiency: Up to 98% (efficiency and input and output voltage, current, pressure-related)
  • Short circuit protection: Yes (limit current 25A) input fuse is 15A
  • Over-temperature protection: Yes (over-temperature automatically reduce the output current)
  • Input Reverse Polarity Protection: None (if required in the input string into the diode)
  • Installation: four 3mm screws
  • Connection: terminals, solderless, V-IN as an input, V-OUT is an output
  • Module dimensions: length 60mm width 51mm height 22mm

Features

  • Ultra-thin design & adhesive backing for easy integration
  • Excellent price-performance ratio
  • Easy communication with any microcontroller
  • 5 pins 2.54mm pitch connector, 4×3 type 12 keys
  • Sticker can peel off for adhesive mounting
  • Widely used in industrial and home electronic equipment, instruments, etc.
  • Allows a microcontroller to ‘scan’ the 7 output pins to detect which button is pressed

Applications :

  • Battery Power Supplies: Used for stepping down voltage in battery-powered systems.
  • Power Transformers: Suitable for use in step-down applications with power transformers.
  • DIY Adjustable Regulated Power Supplies: Ideal for custom, adjustable power supply circuits.
  • 24V Car Pen-Meter Power Supplies: Used for supplying power to car pen-meters.
  • Car LED Lights: Powers car LED lights with appropriate voltage step-down.
  • Industrial Equipment Step-Down: Ideal for industrial applications requiring voltage conversion.
  • 12V to 3.3V, 12V to 5V, 24V to 5V, 24V to 12V: Used for various voltage conversion tasks in different systems.

Physical Attributes

  • Length * Width * Height  (mm) : 60 * 52* 20 mm
  • Weight (gm) : 69

Package Includes

  • 1 x DC-DC 400W 15A Boost Converter Step-up Module Constant Current LED Driver
