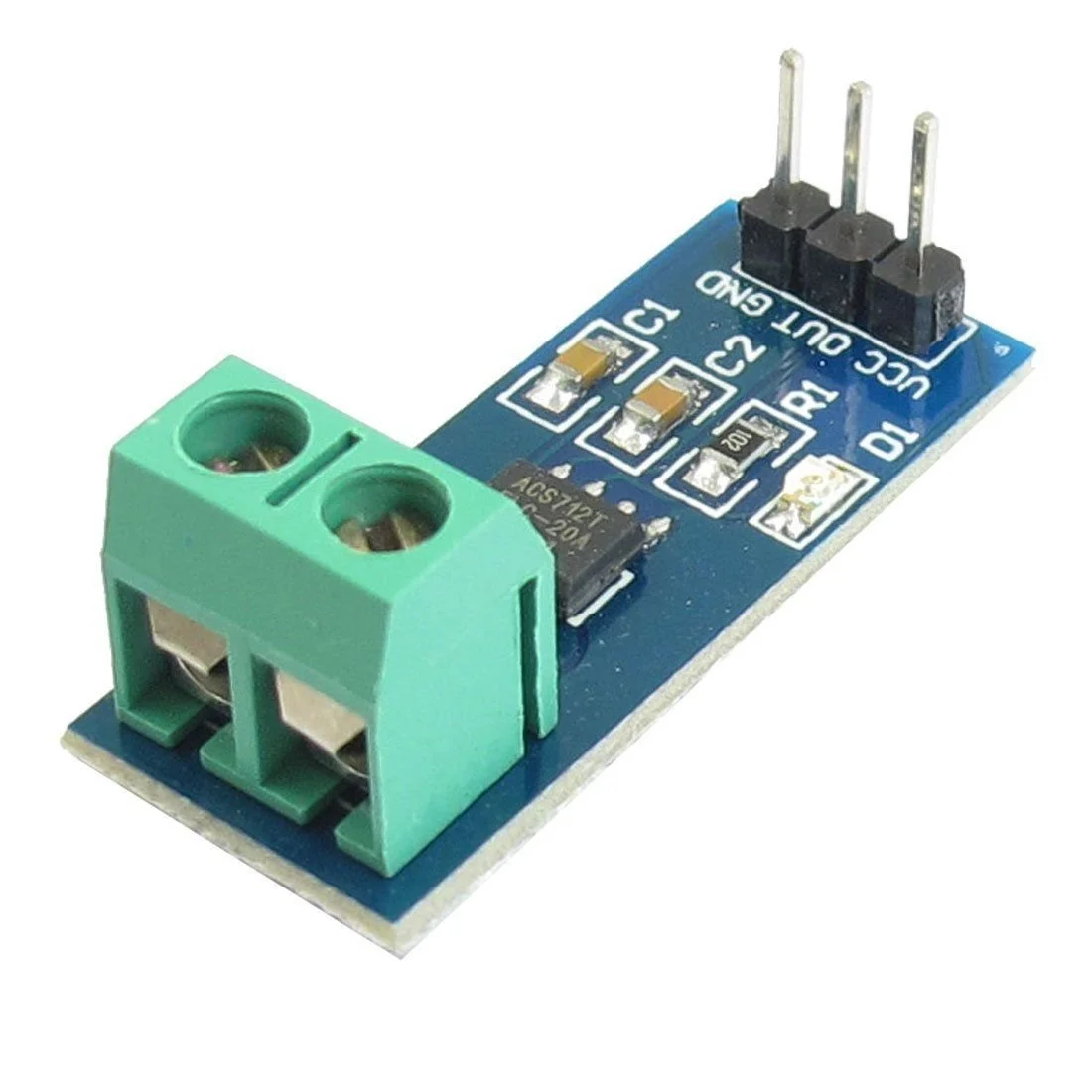

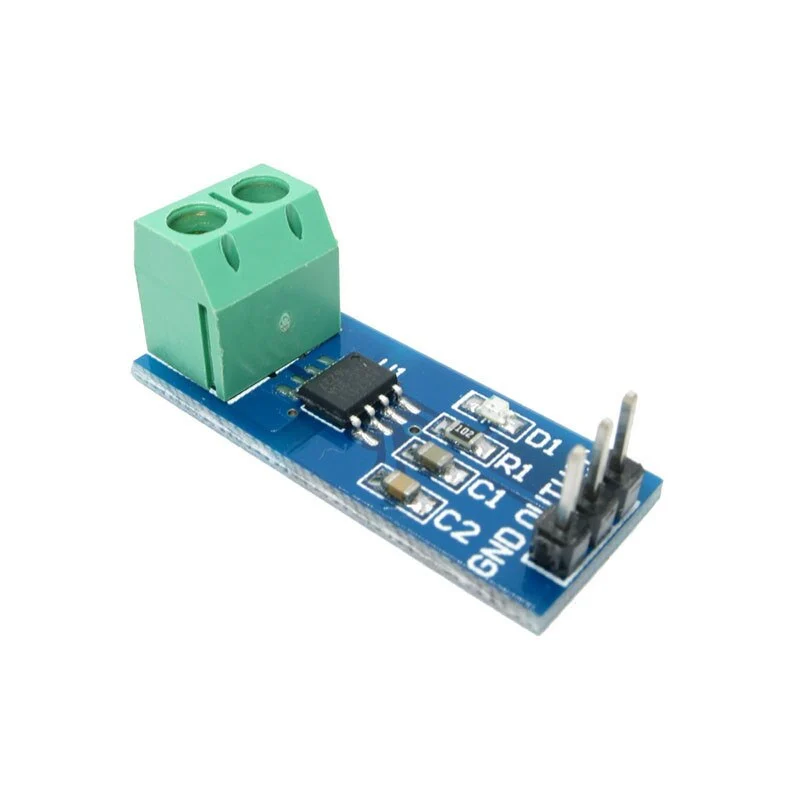

Current Sensor Module ACS712 20amp

Sale!
Features : The low-noise analog signal path Device bandwidth is set via the new FILTER pin 5 µs output rise time in response to step input current Small footprint, low-profile SOIC8 package 2.1 kV RMS minimum isolation voltage from pins 1-4 to pins 5-8 5.0 V, single-supply operation 66 to 185 mV/A output sensitivity Output voltage proportional to AC or DC currents Factory-trimmed for accuracy Extremely stable output offset voltage Nearly zero magnetic hysteresis The ratiometric output from the supply voltage. Package Includes : 1 x 20A Range Current Sensor Module ACS712
Features : The low-noise analog signal path Device bandwidth is set via the new FILTER pin 5 µs output rise time in response to step input current Small footprint, low-profile SOIC8 package 2.1 kV RMS minimum isolation voltage from pins 1-4 to pins 5-8 5.0 V, single-supply operation 66 to 185 mV/A output sensitivity Output voltage proportional to AC or DC currents Factory-trimmed for accuracy Extremely stable output offset voltage Nearly zero magnetic hysteresis The ratiometric output from the supply voltage. Package Includes : 1 x 20A Range Current Sensor Module ACS712

Current Sensor Module ACS712 20amp

(1 customer review)

Original price was: ₹139.00.Current price is: ₹129.00. (inc. GST)

In stock

  • Cash on Delivery(COD) available on orders above 499/-
  • Free shipping on prepaid orders above 499/- use FREESHIP Coupon code!
  • 10 Days Return Policy!
  • Dispatch in 24 Hours from Warehouse!
Add to Wishlist
Add to Wishlist
  1. Low-noise analog signal path
  2. Device bandwidth is set via the new FILTER pin
  3. 5 µs output rise time in response to step input current
  4. Small footprint, low-profile SOIC8 package
  5. 2.1 kVRMS minimum isolation voltage from pins 1-4 to pins 5-8
  6. Supply Voltage: 4.5V~5.5V DC
  7. Measure Current Range: 20A
  8. Sensitivity: 100mV/A
SKU: RY-ACS712-20A Categories: , ,

Description

The 20A Range Current Sensor Module ACS712 consists of a precise, low-offset, linear Hall circuit with a copper conduction path located near the surface of the die. Applied current flowing through this copper conduction path generates a magnetic field in which the Hall IC converts into a proportional voltage.

Sensing and controlling current flow is a fundamental requirement in a wide variety of applications including, over-current protection circuits, battery chargers, switching mode power supplies, digital watt meters, programmable current sources, etc.

This ACS721 current module is based on the ACS712 sensor, which can accurately detect AC or DC current.

The maximum AC or DC that can be detected can reach 20A, and the present current signal can be read via analog I / O port of Arduino.

Features :

  1. The low-noise analog signal path
  2. Device bandwidth is set via the new FILTER pin
  3. 5 µs output rise time in response to step input current
  4. Small footprint, low-profile SOIC8 package
  5. 2.1 kV RMS minimum isolation voltage from pins 1-4 to pins 5-8
  6. 5.0 V, single-supply operation
  7. 66 to 185 mV/A output sensitivity
  8. Output voltage proportional to AC or DC currents
  9. Factory-trimmed for accuracy
  10. Extremely stable output offset voltage
  11. Nearly zero magnetic hysteresis
  12. The ratiometric output from the supply voltage.

Package Includes :

1 x 20A Range Current Sensor Module ACS712
