Name: CNC shield V3 for Engraving Machine 3D Printer A4988 DRV8825 driver expansion board - Rytronics.in
Brand: Development Boards
SKU: RY-CNCSHILD
Price: 149.00 INR
Availability: InStock
Rating: 5.00 (1 reviews)

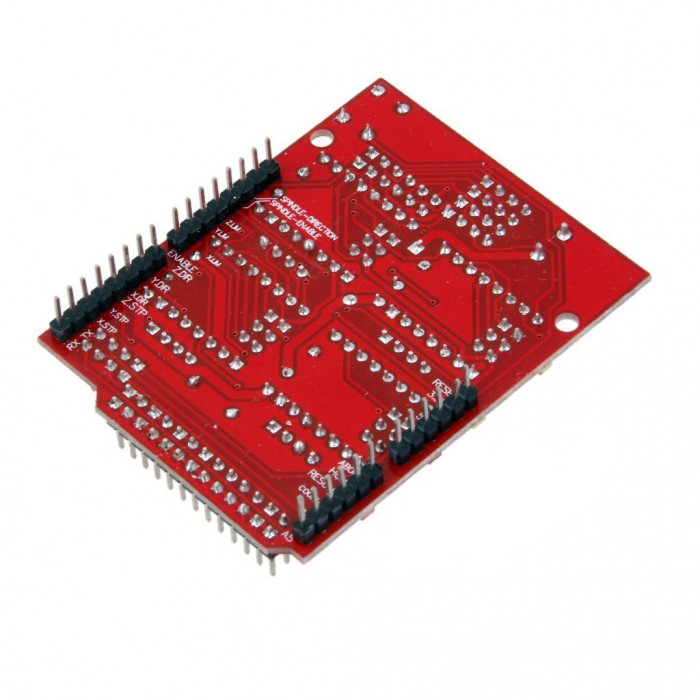

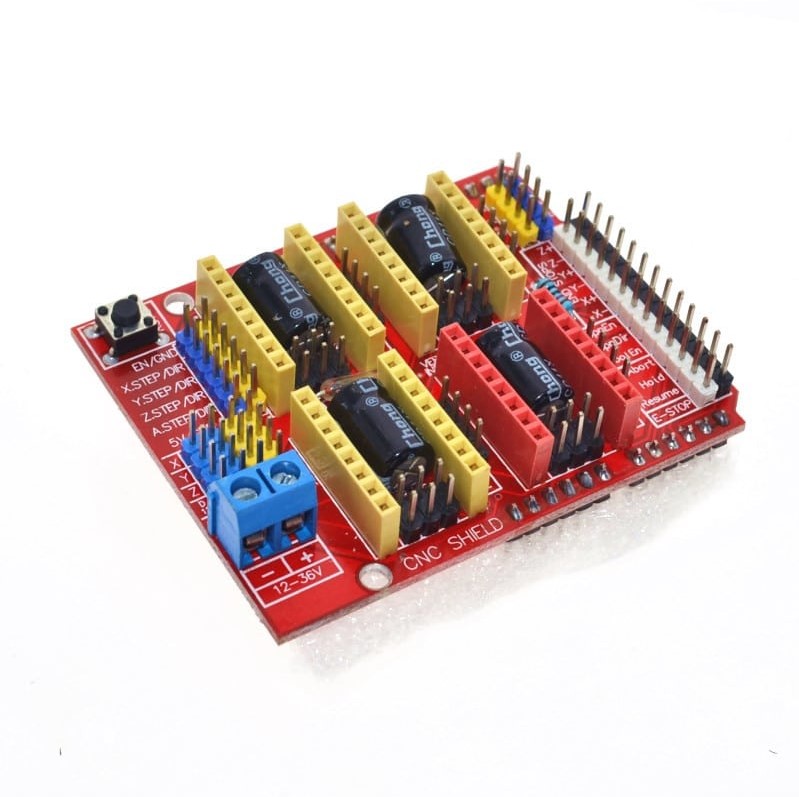

CNC shield V3 for Engraving Machine 3D Printer A4988 DRV8825 driver expansion board

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

₹149.00 (inc. GST)

In stock

CNC Shield Version 3.0 for arduino
GRBL compatible. (Open source firmware that runs on an Arduino UNO that turns G-code commands into stepper signals)
Jumpers to set the Micro-Stepping for the stepper drivers. (Some drivers like the DRV8825 can do up to 1/32 micro-stepping )
4-Axis support (X, Y, Z, A-Can duplicate X, Y, Z or do a full 4th axis with custom firmware using pins D12 and D13)

SKU: RY-CNCSHILD Categories: Development Boards, 3D Printer Parts, Arduino Boards and Accessories Tags: 3D printer, 3D printer Controller Board, A4988, cnc, DRV8825, Motor Driver

Description

The CNC shield V3 is a low-cost controller solution for DIY CNC machines. It was designed to be 100% compatible with Grbl, which is Open source G-Code interpreter, and fit onto the popular Arduino Uno.

This Grbl interpreter can convert the G-code instruction to Stepper instruction.

This CNC Shield can be used to control the various types of CNC machines, like CNC milling machines, laser engraving/cutting machines, drawing machines, 3D printers or any project that needs precision control of stepper motors.

It uses Pololu and compatible stepper drivers, either the A4988 or the higher current DRV8825.

Features

This CNC Shield is Arduino UNO Compatible

14 digital input/output pins – 6 pins can be used as PWM outputs
6 analog inputs
16 MHz crystal oscillator
Operates at 5V
Recommended input voltage range: 7V to 12V
Flash Memory: 32 KB (0.5KB used by bootloader)
SRAM: 2KB
EEPROM: 1KB

CNC Shield

4-Axis support (X, Y, Z , A-Can duplicate X,Y,Z or do a full 4th axis with custom firmware using pins D12 and D13)
2 x End stops for each axis (6 in total – each axis pair shared by same IO pin)
Spindle enable and direction connection
Coolant enable connection
Uses GRBL as control software(A open source platform)

Package Includes :

1 x CNC shield V3 engraving
