Sale!

CN3791 9V MPPT Solar Charger Module

Original price was: ₹499.00.Current price is: ₹339.00. (inc. GST)

In stock

Input voltage: select the corresponding module according to the nominal voltage of the solar panel (9V)
Output voltage: nominal 3.7V full charge voltage 4.2V lithium battery
Interface: 2-pin JST connectors (or PH2.0)
Max Charging current: 2A
PWM switching frequency: 300KHz
Charging voltage: 4.2V ± 1%
Working environment temperature: -40 ° C to +85 ° C

SKU: RY-12VMPPT-1-1 Categories: Batteries and Accessories, Batteries BMS and Accessories, Miscellaneous Module, Modules, Sensor and Modules

Description

CN3791 9volt MPPT Solar Panel Regulator Controller Lithium Battery Cell Charging

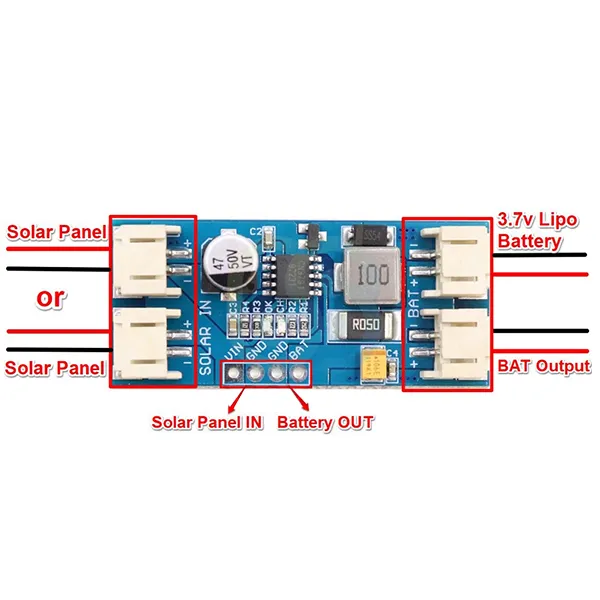

This is a maximum power point tracking (MPPT) solar charger for single-cell LiPo batteries. This MPPT solar charger provides you with the ability to get the most possible power out of your solar panel or other photovoltaic device and into a rechargeable LiPo battery. Set-up is easy as well, just plug your solar panel into one side of the solar charger and your battery into the other and you are good to start charging.

Features:

Automatic recharge
Charge status and charge end status indication
Battery overvoltage protection
Solar panel maximum power point tracking
Complete charge management for single-cell lithium batteries.

Specifications:

Model	CN3791
Connector	2-pin JST
Operating Voltage (VDC)	9
Operating Temperature (°C)	-40 to 85
Switching Frequency (kHz)	300
Maximum Charging Current (A)	2
Length (mm)	45
Width (mm)	20
Height (mm)	9.5
Weight (gm)	10

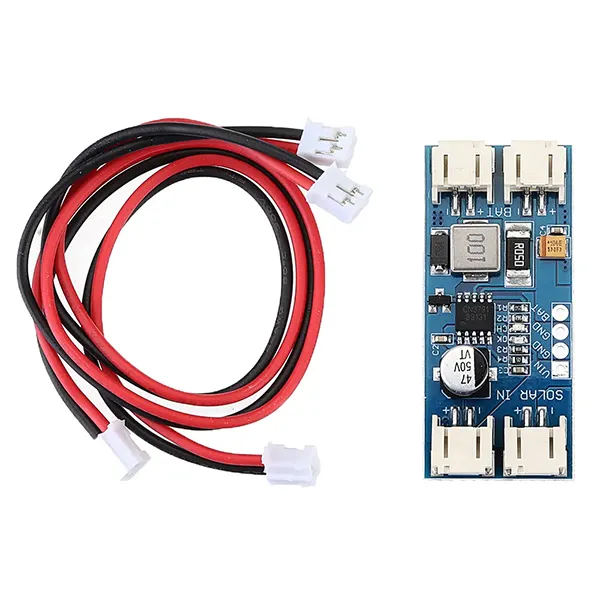

Package includes:

1 x CN3791 9V MPPT Solar Charger Module

1 x Pair of wires with 2-pin JST connector on both sides;
