Name: CJMCU 9930 APDS-9930 Digital Proximity And Ambient Light Sensor For Arduino - Rytronics.in
Brand: Sensor and Modules
SKU: RY-APDS9930
Price: 149.00 INR
Availability: InStock

Sale!

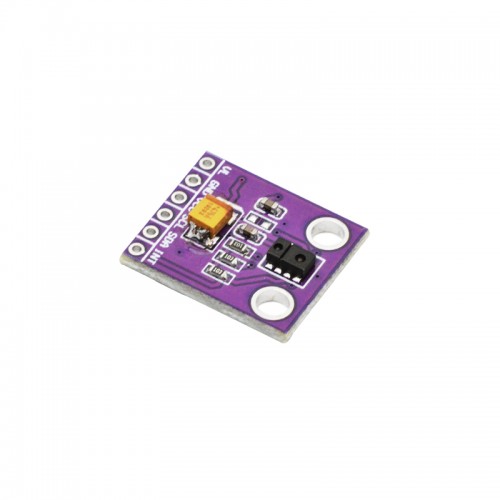

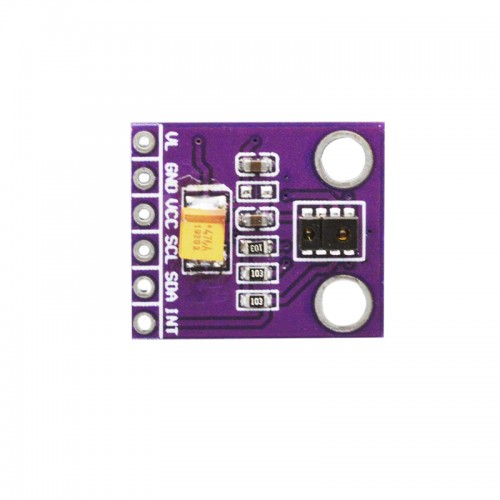

CJMCU 9930 APDS-9930 Digital Proximity And Ambient Light Sensor For Arduino

Original price was: ₹299.00.Current price is: ₹149.00. (inc. GST)

In stock

Working voltage:2.8-3.8V
ALS, IR LED and Proximity Detector in an Optical Module;
Ambient Light Sensing (ALS);
Approximates Human Eye Response;
Programmable Interrupt Function with Upper and Lower Threshold;
Up to 16-Bit Resolution;
High Sensitivity Operates Behind Darkened Glass;
Low Lux Performance at 0.01 lux;

SKU: RY-APDS9930 Categories: Sensor and Modules, Acceleration & Rotation Sensor, Sensors, Ultrasonic & Proximity

Description

APDS-9930 provides I2C interface-compatible ambient light sensor (ALS, Ambient Light Sensor) and proximity sensor with infrared LED in a single 8-pin package. The ambient light sensor uses dual photodiodes to approximate low lumen at 0.01 lux The visual response of the human eye provides the high sensitivity that allows the device to operate behind dark glass. The proximity sensor is fully tuned for 100 mm object detection, eliminating the need for factory calibration of end devices and subassemblies. From bright sunlight to dark rooms, the proximity detection function works well. A micro-optical lens is added to the module to provide efficient transmission and reception of infrared energy, which can reduce overall power consumption. In addition, the internal state machine allows the device to enter a low-power mode, resulting in extremely low average power consumption.

Parameters:

Working voltage: DC 2.8-3.8V

Output current: 0-20mA

Temperature range: -40 ℃ ~85 ℃

Color: Blue/Purple

Features:

Optical module with integrated ALS, infrared LED and proximity detector

Ambient Light Sensing (ALS), which approximates the visual response of the human eye

Programmable interrupt function with upper and lower thresholds

Up to 16-bit resolution

High sensitivity working behind dark glass

0.01lux low lumen performance

Proximity detection, fully calibrated to 100 mm inspection

Integrated infrared LED and synchronous LED driver

Eliminates factory calibration of proximity sensors

Programmable wait timer, wait state power consumption-90μA (typical)

Programmable range from 2.7 ms to more than 8 seconds

I2C interface compatible up to 400kHz (I2C fast mode)

Dedicated interrupt pin

Sleep Mode Power-2.2μA (typical)

Small package 3.94 (L) x 2.36 (W) x 1.35 (H) mm

Package included:

1 X APDS-9930 RGB Non-contact Infrared Gesture Sensor Module
