ATTINY85DIGISPARKDEVELOPMENTBOARDWITHMICROUSBARDUINO

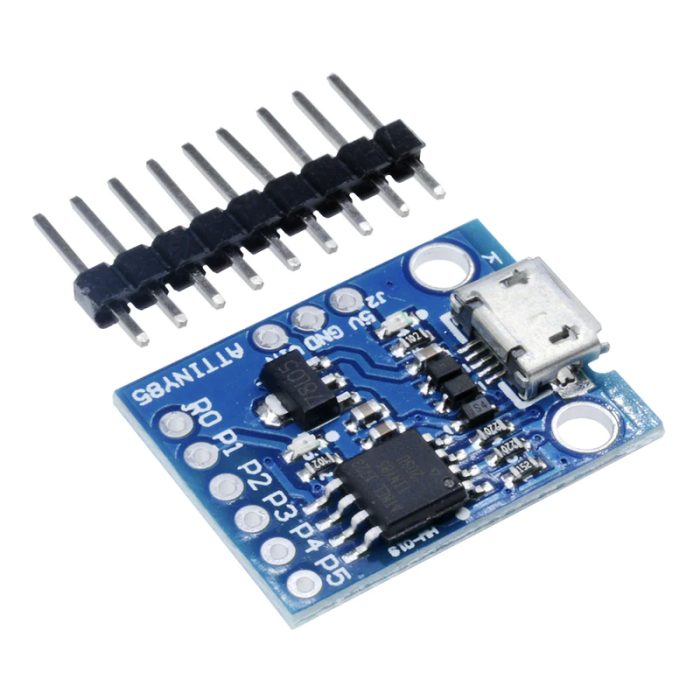

Attiny85 Micro USB Development Board

₹249.00 (inc. GST)

In stock

igh Performance, Low Power AVR® 8-Bit Microcontroller
Non-volatile Program and Data Memories
8K Bytes of In-System Programmable Program Memory Flash
Endurance: 10,000 Write/Erase Cycles
512 Bytes In-System Programmable EEPROM
512 Bytes Internal SRAM

SKU: RY1168 Categories: Development Boards, Other boards

Description

Development boards are essential in embedded electronics and here we present the small ATtiny85 development board. The ATtiny85 is a compact Development Board from the Arduino community. It is based on the 8-pin ATTiny85 ATMEL Microcontroller and has 6 Digital pins, out of which 4 pins are ADC compatible. It also has 3 PWM outputs and supports SPI, I2C and USART communication. The Flash memory size is about 8K.

It operates on +5V and also has an on-board voltage regulator which can take input voltage up to 12V. The board comes with a preloaded bootloader with blink sketch and can be easily programmed using the Arduino IDE. It features a micro usb port that can be used for data transfer and power related inputs. The USB line is fully protected using the TVS diodes.

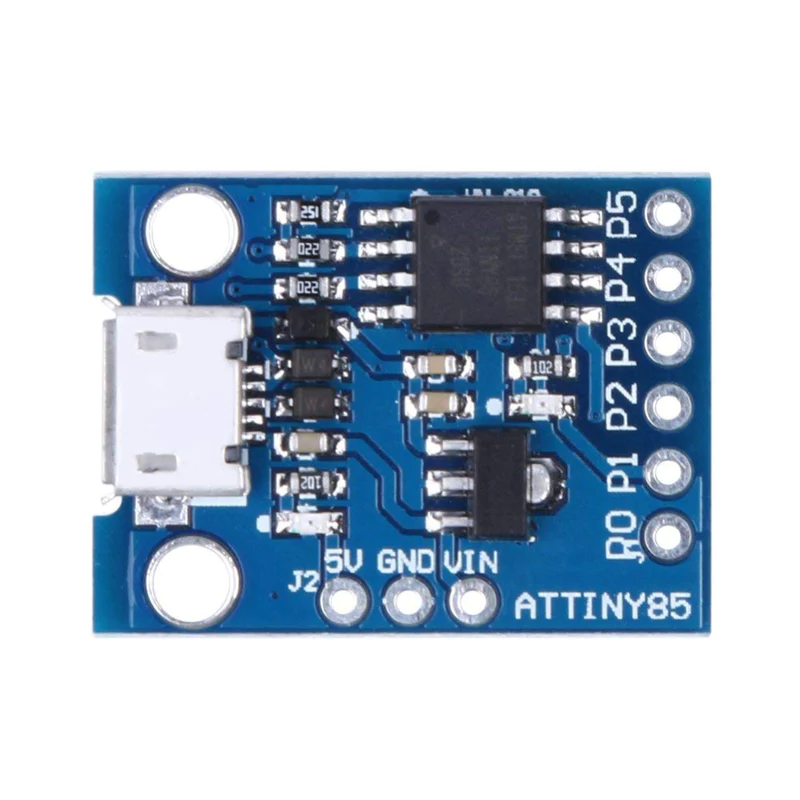

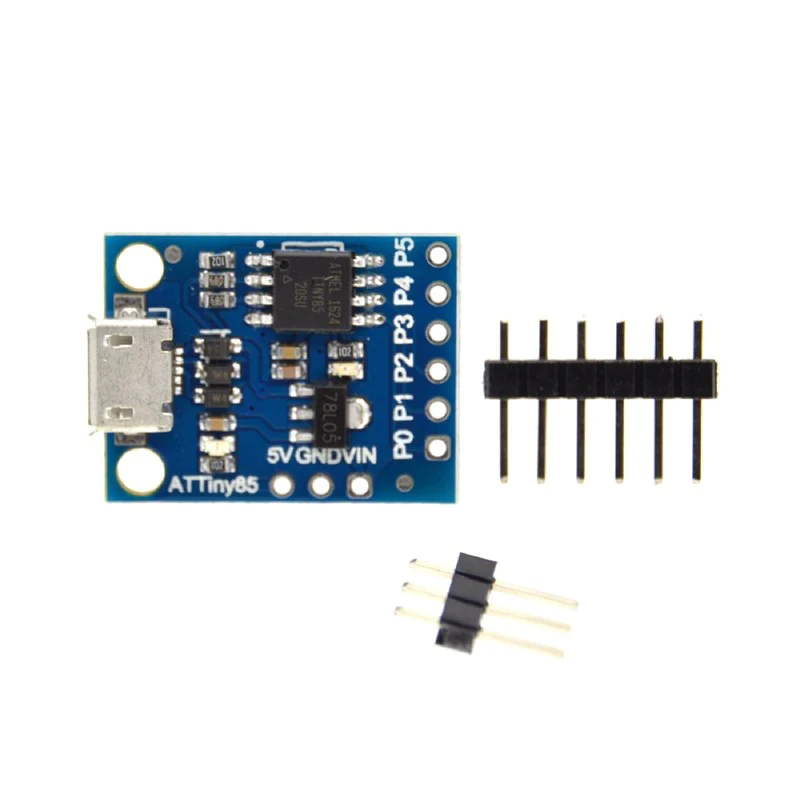

AT tiny Micro USB 85 Development Board

AtTiny Development Board Features and Specifications:

Specification:

High Performance, Low Power AVR® 8-Bit Microcontroller
Non-volatile Program and Data Memories
8K Bytes of In-System Programmable Program Memory Flash
Endurance: 10,000 Write/Erase Cycles
512 Bytes In-System Programmable EEPROM
512 Bytes Internal SRAM
Peripheral Features
Two High-Frequency PWM Outputs with Separate Output Compare Registers
USI – Universal Serial Interface (12C, SPI, 1-wire) with Start Condition Detector
10-bit ADC
4 Single Ended Channels
Two Differential ADC Channel Pairs with Programmable Gain (1x, 20x)
Speed Grade
0 – 10 MHz @ 2.7 – 5.5V, 0 – 20 MHz @ 4.5 – 5.5V
Industrial Temperature Range
Low Power Consumption
Active Mode:1 MHz, 1.8V: 300 µA

AtTiny Development Board Applications:

Programming System
Motor Control
Logic Devices
Data processing
Data logging
