Name: Nano Board R3 CH340 chip With USB Mini Cable compatible with Arduino (soldered) - Rytronics.in
Brand: Arduino Boards and Accessories
SKU: RY1088
Price: 269.00 INR
Availability: InStock
Rating: 5.00 (1 reviews)

Sale!

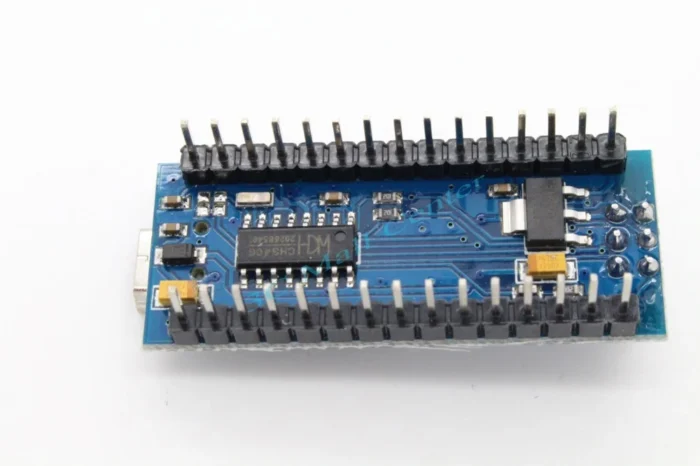

Nano Board R3 CH340 chip With USB Mini Cable compatible with Arduino (soldered)

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

Original price was: ₹599.00.Current price is: ₹269.00. (inc. GST)

In stock

Microcontroller: Atmega328P
Operating Voltage: 5V
Architecture: AVR
Input Voltage (recommended): 7-12V
Input Voltage (limits): 6-20V
Digital I/O Pins 14 (of which 6 provide PWM output)
Analog Input Pins: 8
DC Current per I/O Pin 40 mA
DC Current for 3.3V Pin 50 mA
Flash Memory: 32 KB of which 2 KB used by the bootloader
SRAM: 2 KB
EEPROM: 1 KB
Clock Speed: 16 MHz
programmer chip: ch340g

SKU: RY1088 Categories: Arduino Boards and Accessories, Development Boards

Description

The Nano Board R3 CH340 chip With USB Mini Cable chipboard is based on famous Arduino platform and does all the functions of Uno, but with a smaller footprint.

The Arduino Nano is a small, complete, and breadboard-friendly board based on the ATmega328. It has more or less the same functionality of the Arduino Duemilanove but in a different package. It lacks only a DC power jack and works with a Mini-B USB cable instead of a standard one.

Features/Specs:

1 pair of TTL level serial transceiver ports RX / TX
Using Atmel Atmega328P-AU MCU
There is a bootloader installed in it
Support USB download and Power
Support for external 5V ~ 12V DC power supply
Support power supply by 9V battery
Support ISP download
Automatic reset during program download.
Power OK blue LED on the bottom.
Green (TX), red (RX) and orange (L) LED.
+5V to AREF jumper.
Auto sensing/switching power input.
Small mini-B USB for programming and serial monitor.
ICSP header for direct program download.
Standard 0.1” spacing DIP (breadboard friendly).
Manual reset switch.

Package Includes:

1 x Nano Board R3 CH340 chip With USB Mini Cable compatible with Arduino (soldered)

1 review for Nano Board R3 CH340 chip With USB Mini Cable compatible with Arduino (soldered)

Rated 5 out of 5

D M (verified owner) – 21/05/2023

Good product. Upload code successfully. Working fine
