Name: Arduino Nano Board R3 with CH340 chip (Unsoldered) - Rytronics.in
Brand: Arduino Boards and Accessories
SKU: RY-ARDN01
Price: 359.00 INR
Availability: InStock

Sale!

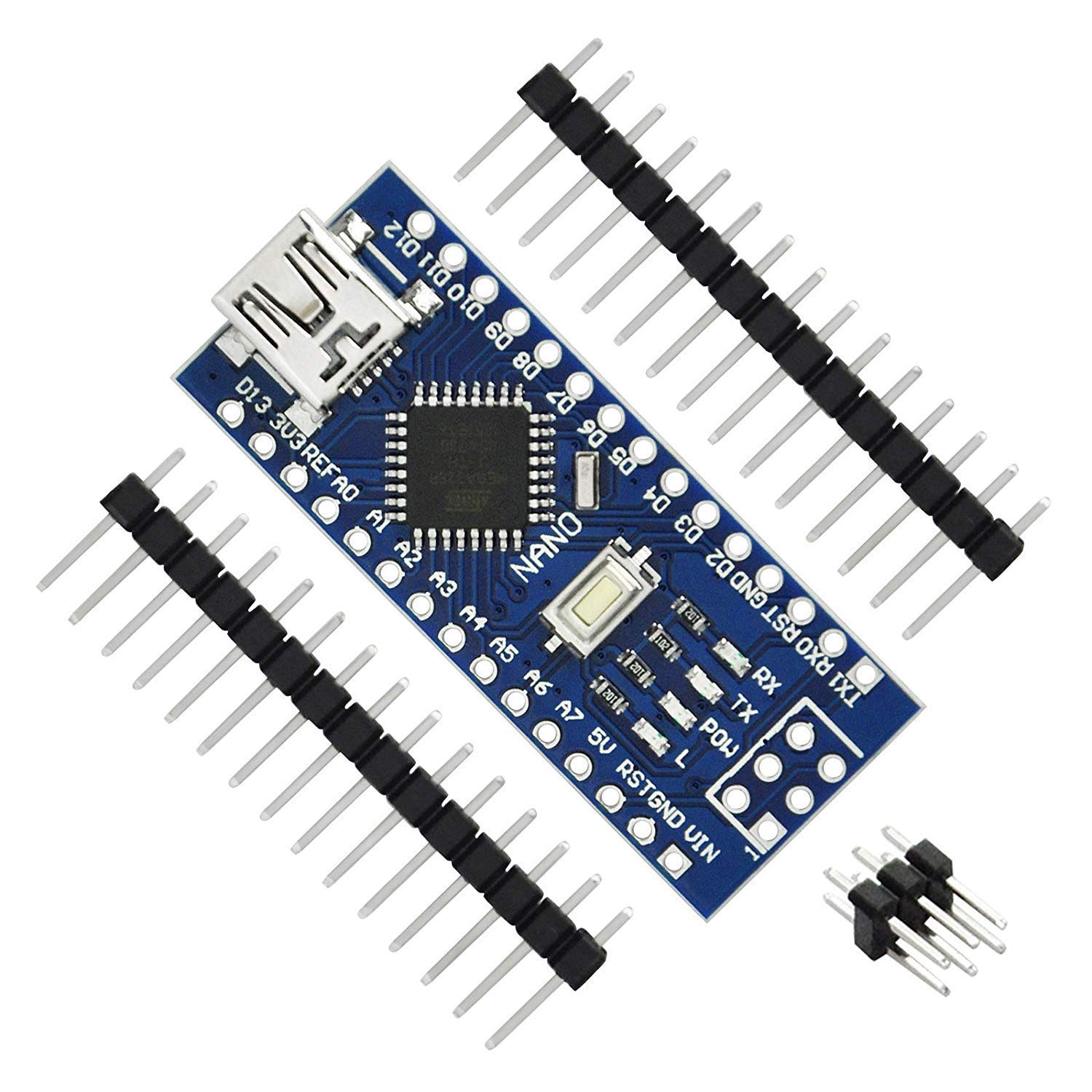

Arduino Nano Board R3 with CH340 chip (Unsoldered)

Original price was: ₹899.00.Current price is: ₹359.00. (inc. GST)

In stock

The Arduino Nano Board R3 with CH340 is another popular Arduino development board very much similar to the Arduino UNO They use the same Processor (Atmega328p) and hence they both can share the same program.

SKU: RY-ARDN01 Categories: Arduino Boards and Accessories, Development Boards Tags: Arduino, Arduino Nano, Arduino Nano R3, ATmega328, CH340, Microcontroller, Nano

Description

Arduino Nano Board R3 with CH340 is a microcontroller board based on 8-bit ATmega328P microcontroller. Along with ATmega328P, it consists other components such as crystal oscillator, serial communication, voltage regulator, etc. to support the microcontroller. Arduino Uno has 14 digital input/output pins (out of which 6 can be used as PWM outputs), 6 analog input pins, a USB connection, A Power barrel jack, an ICSP header and a reset button.

Specifications

Microcontroller	ATmega328P – 8-bit AVR family microcontroller
Operating Voltage	5V
Recommended Input Voltage for Vin pin	7-12V
Analog Input Pins	6 (A0 – A5)
Digital I/O Pins	14 (Out of which 6 provide PWM output)
DC Current on I/O Pins	40 mA
DC Current on 3.3V Pin	50 mA
Flash Memory	32 KB (2 KB is used for Bootloader)
SRAM	2 KB
EEPROM	1 KB
Frequency (Clock Speed)	16 MHz
Communication	IIC, SPI, USART

Applications

Prototyping of Electronics Products and Systems
Multiple DIY Projects
Easy to use for beginner level DIYers and makers.
Projects requiring Multiple I/O interfaces and communications.
