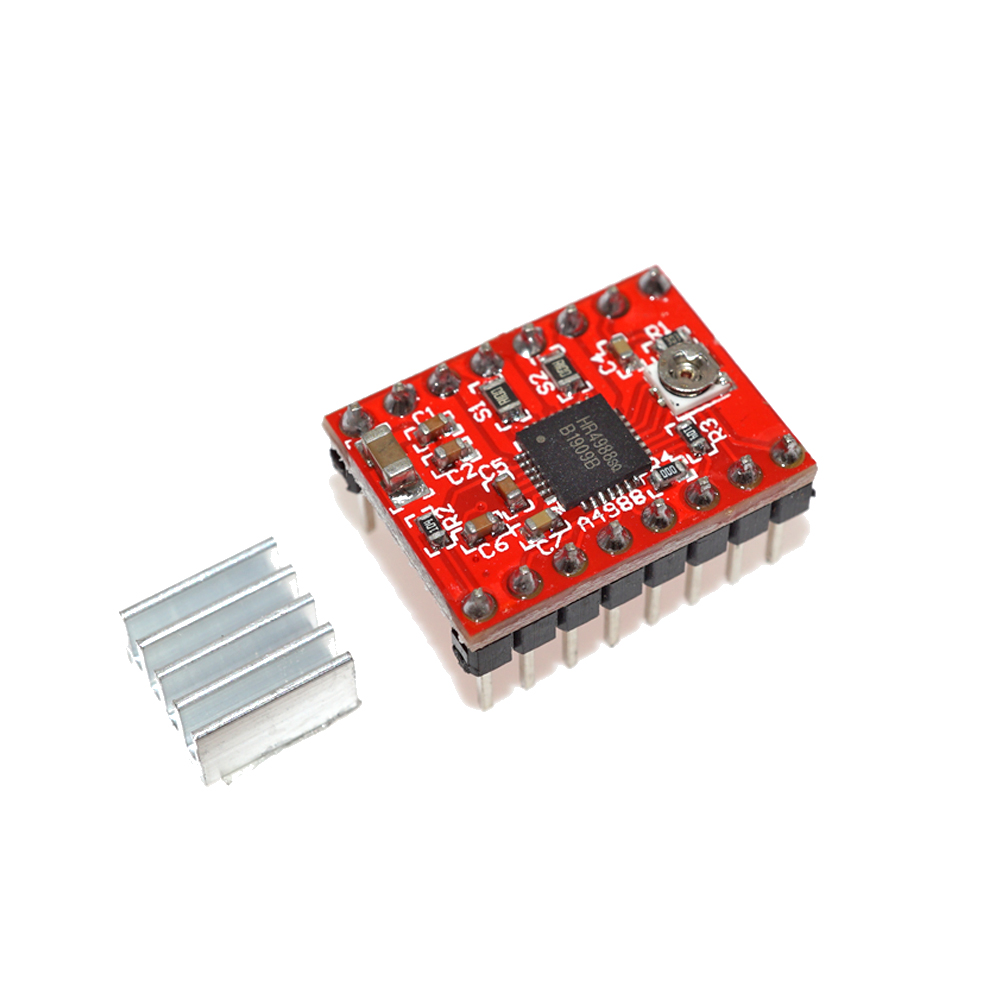

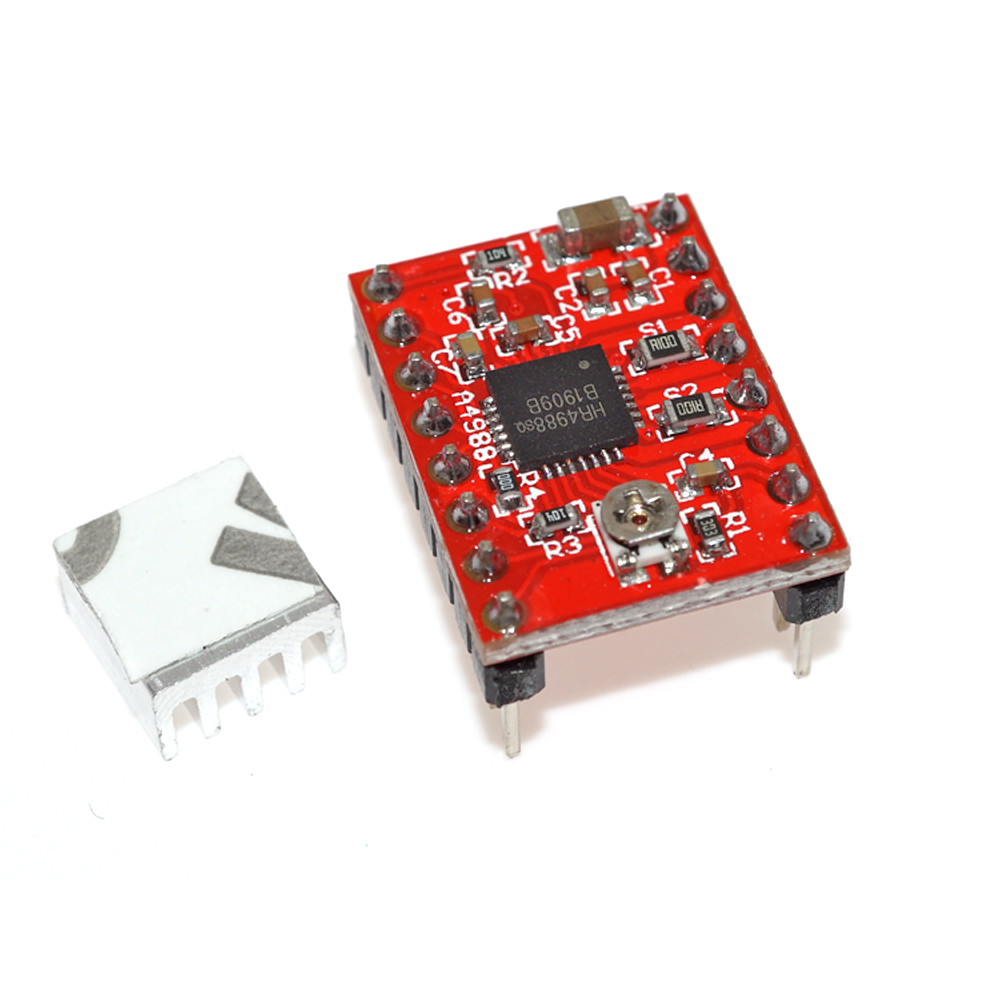

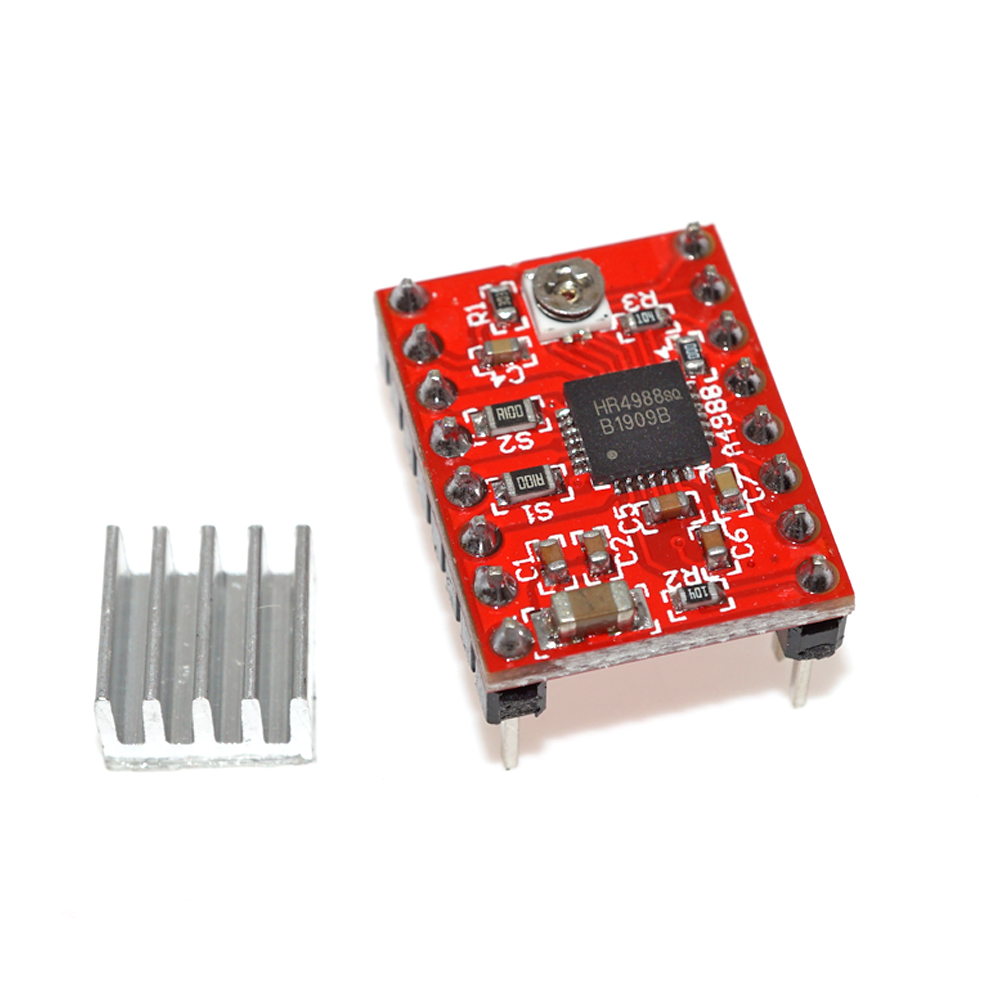

A4988 driver Stepper Motor Driver
Original price was: ₹149.00.₹96.00Current price is: ₹96.00. (inc. GST)
In stock
- Supply Voltage : 8-35 VDC.
- Current : 1.0A (no heatsink ).
- Current : 2.0A (with heat-sinking).
- logic input : 3 – 5.5V .
- Automatic current decay mode detection / choice.
- Mixed with slow current decay mode.
Description
The A4988 driver Stepper Motor Driver is a complete micro-stepping motor driver with built-in converter, easy to operate. It operates from 8 V to 35 V and can deliver up to approximately 1 A per phase without a heat sink or forced air flow (it is rated for 2 A per coil with sufficient additional cooling).
Features :
- Automatic current decay mode detection/choice.
- Mixed with slow current decay mode.
- The low power dissipation of synchronous rectifier.
- Internal UVLO(ultra voltage lockout).
- Crossover current protection.
- Thermal shutdown circuit.
- Ground fault protection.
- Loading and short circuit protection.
- The optional five-step mode: full, 1/2, 1/4, 1/8 and 1/16.
Package Includes :
1 x A4988 driver Stepper Motor Driver
1 x Heat sink.
