Name: 9V Battery Operated LCR-T4 12864 LCD Graphical Transistor Tester Resistance Capacitance ESR SCR Meter - Rytronics.in
Brand: Miscellaneous Module
SKU: RY1167
Price: 999.00 INR
Availability: InStock
Rating: 4.00 (1 reviews)

LCR T4 12864 LCD Graphical Transistor Tester Resistance Capacitance ESR SCR Meter 8

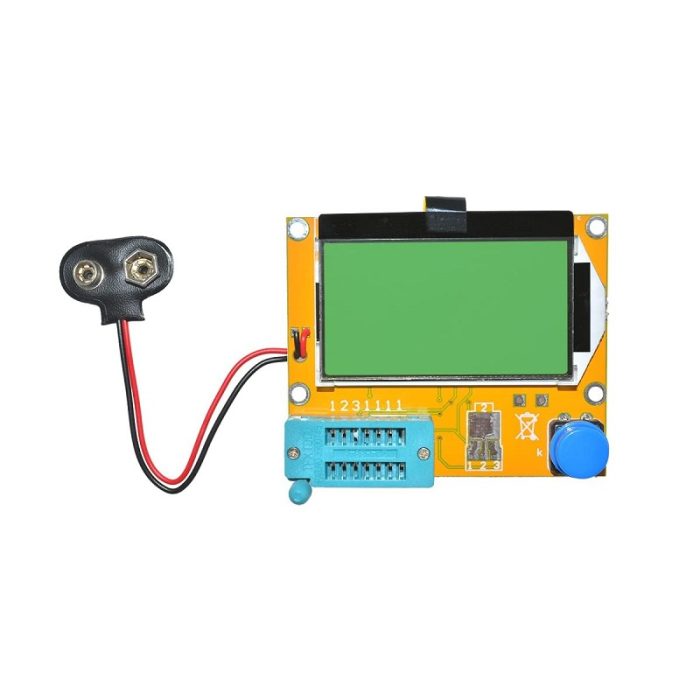

9V Battery Operated LCR-T4 12864 LCD Graphical Transistor Tester Resistance Capacitance ESR SCR Meter

Rated 4.00 out of 5 based on 1 customer rating

(1 customer review)

₹999.00 (inc. GST)

In stock

Working power: DC-9V
Standby current: 0.02uA
Operating current: 25mA
Material: Metal+Plastic
Conversion: 1cm=0.3937 inch, 1inch=2.54 cm

SKU: RY1167 Categories: Miscellaneous Module, Modules

Description

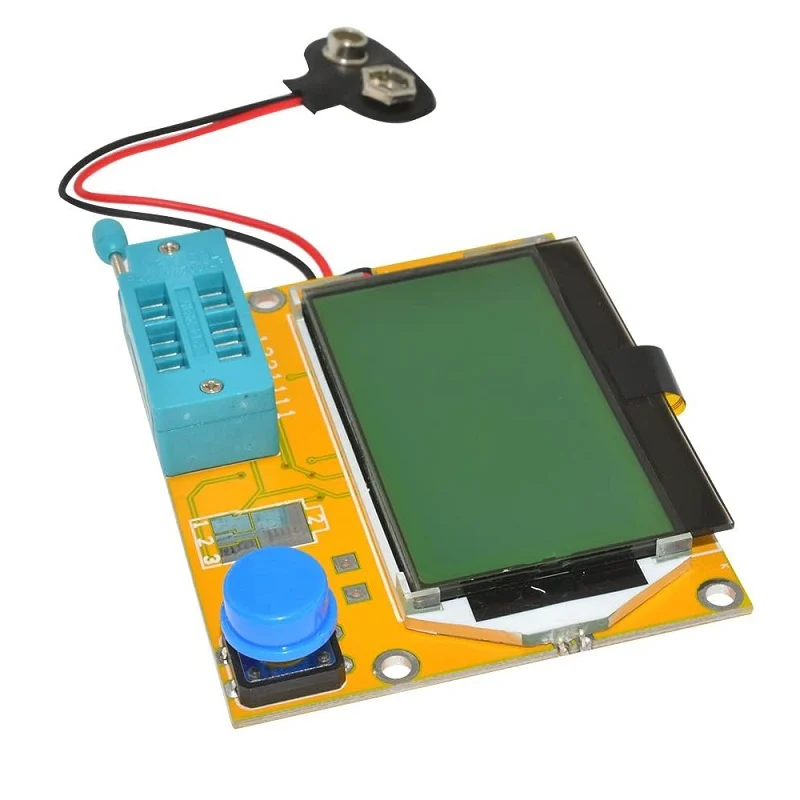

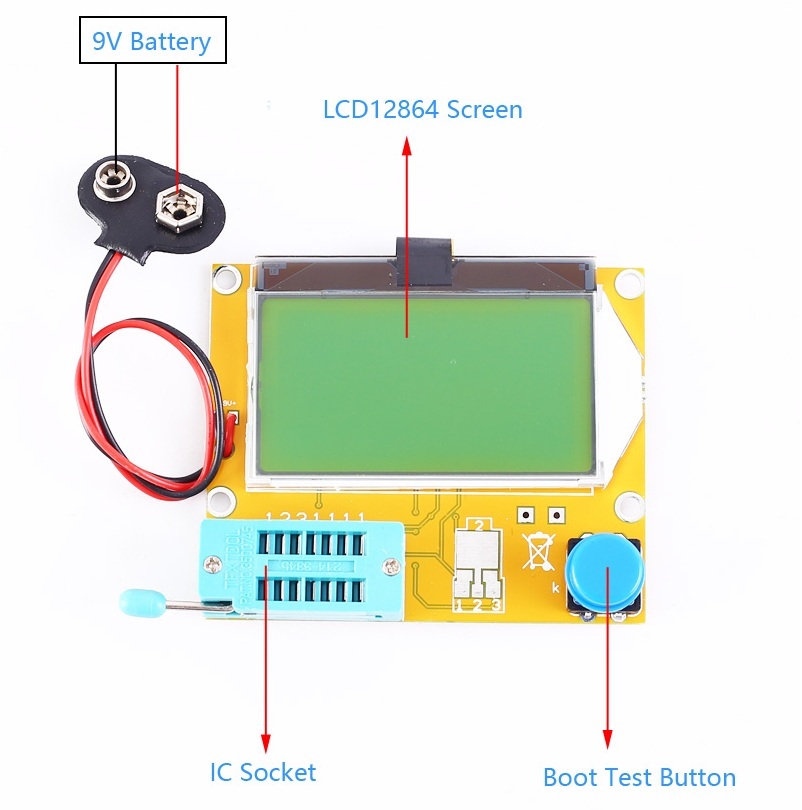

This is LCR-T4 12864 LCD Graphical Transistor Tester Resistance Capacitance ESR SCR Meter. It is powered by 9V layer-built battery or can use 2 li-ion batteries to form an 8.4V battery pack for long time power. This tester can be used to measure bipolar transistor current amplification factor and base-emitter threshold voltage. By using this meter, automatic test the pin of a component and results will display on the 128 * 64 LCD backlight. It has One-button operation, automatic shutdown and only 20nA shutdown current consumption. Reverse breakdown voltage less to 4.5V, Zener diode can be identified. 2uF more capacitors can simultaneously measure the equivalent series resistance ESR values. Via the base-emitter threshold voltage and high current amplification factor to identify Darlington transistors.

This tester can simultaneously measure two resistors and resistor symbol is displayed. It displays on the right with a decimal value of 4. It can detect the transistor, MOSFET protection diode amplification coefficient and the base to determine the emitter transistor forward biased voltage. Automatic detection of NPN and PNP transistors, n-channel and p-channel MOSFET, a diode (including double diode), thyristor, transistor, resistor and capacitor and other components.

Note: 9V Battery is not included with this module.

Features:

Support boot voltage detection function
Automatic detection of NPN and PNP transistors, N-channel and P-channel MOSFETs, diodes (including dual diodes), thyristors, triodes, resistors, and capacitors.
Automatically testing the component leads and displaying them on the LCD
The forward bias voltage of the emitter transistor can be determined by detecting the amplification factor and base number of a transistor, a MOSFET protection diode, and the like
Measure gate threshold voltage and gate capacitance MOSFET
The display uses 12864 LCD LCD (128 * 64 characters)
High test speed, valid component test: In 2 seconds (except in larger capacitors, large capacitance measurement also takes a long time, the measurement time in 1 minute is normal)
One-button operation, power-on test.
Power Consumption Shutdown Mode: Less than 20 nA
Automatic shutdown function can avoid unnecessary waste, save battery energy and improve battery life.

Package Includes:

1 x LCR-T4 12864 LCD Graphical Transistor Tester Resistance Capacitance ESR SCR Meter

1 review for 9V Battery Operated LCR-T4 12864 LCD Graphical Transistor Tester Resistance Capacitance ESR SCR Meter

Rated 4 out of 5

MEHUL PATEL – 25/08/2024

this is very very useful product but high price. must be under 500₹
